SB-1150 T (31AH773H190) - White Outdoor Snow Boss Snow Thrower (2000) Gear Assembly Parts Diagram

Snow Boss Snow Thrower

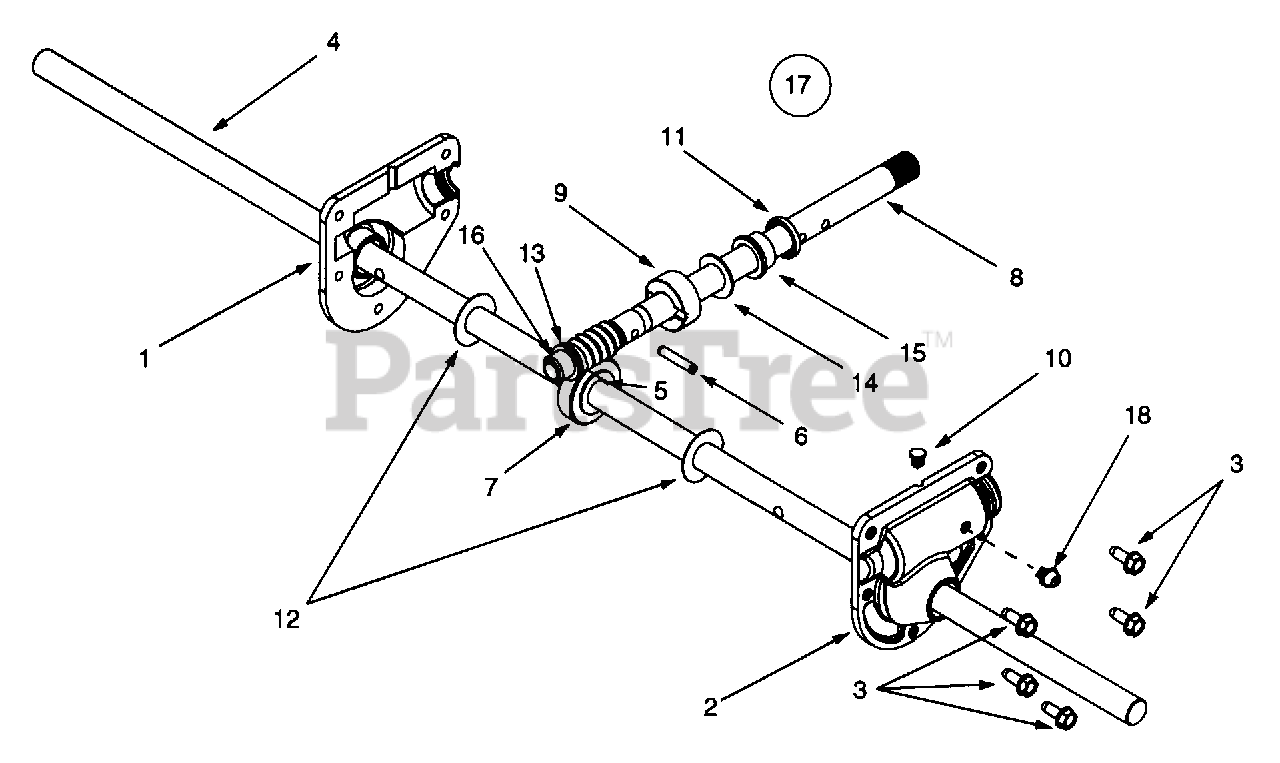

Gear Assembly Parts Diagram

  • Title

1

MTD 918-0123A

RH Housing

Note: (Incl. Ref. 17, 18)

$52.99

$

In Stock, Qty 11

0

2

MTD 918-0418A

LH Housing w/Fitting

Note: (Incl. Ref. 17, 18)

$62.99

$

Usually ships in 3-6 days

0

3

MTD 710-0642

Self Tapping Screw, 1/4-20 x .75

$4.49

$

In Stock, Qty 20+

0

4

MTD 711-1024A

Spiral Axle, 30"

Note: (For model 1150T)

$136.99

$

Usually ships in 3-6 days

0

4

MTD 711-0909A

Spiral Axle, 26"

Note: (For model 950T)

$

$

Not available

5

MTD 914-0161

Hi-Pro Key, 3/16 x 5/8

$4.49

$

In Stock, Qty 20+

0

6

MTD 915-0143

Spring Spiral Pin, .25 x 1.25
(Superseded to 715-0143)

$

$

Not available

7

MTD 917-0528A

Worm Gear, 20-tooth
(Superseded to 917-04861)

$43.99

$

In Stock, Qty 20+

0

8

MTD 717-0526

Worm Shaft
(Superseded to 717P0526)

$108.99

$

In Stock, only 2 left!

0

9

MTD 718-0186

Thrust Collar

$8.49

$

In Stock, Qty 11

0

10

MTD 721-0325

Grease Plug

$4.49

$

In Stock, Qty 20+

0

11

MTD 721-0327

Grease Seal

$6.99

$

In Stock, Qty 20+

0

12

MTD 936-0351

Flat Washer, .76 x 1.5 x .030
(Superseded to 736-0351)

$4.49

$

In Stock, Qty 20+

0

13

MTD 936-0369

Flat Washer, .508 x 1.0 x .020
(Superseded to 736-0369)

$4.49

$

In Stock, Qty 20+

0

14

MTD 936-0445

Flat Washer, .76 x 1.5 x .060
(Superseded to 736-0445)

$

$

Not available

15

MTD 741-0662

Flange Bearing, .75 x 1.0 x .59

$10.99

$

In Stock, Qty 16

0

16

MTD 741-0663

Flange Bearing, .503 ID x .75 OD

$9.99

$

In Stock, Qty 20+

0

17

MTD 918-0417B

Gear Assy Complete, 30"

Note: (For model 1150T)

$400.99

$

Usually ships in 3-6 days

0

17

MTD 918-0415B

Gear Assy Complete, 26"

Note: (For model 950T)

$442.99

$

Usually ships in 3-6 days

0

18

MTD 937-3000

Grease Fitting, 3/16" Drive

$4.99

$

In Stock, Qty 20+

0

18

MTD 737-0168A

Grease (Two Ounces)

$30.99

$

In Stock, Qty 13

0
