SB-1050 (317E663H190) - White Outdoor Snow Boss Snow Thrower (1997) Axle, Bearing Ass'y And Frame Ass'y Parts Diagram

Snow Boss Snow Thrower

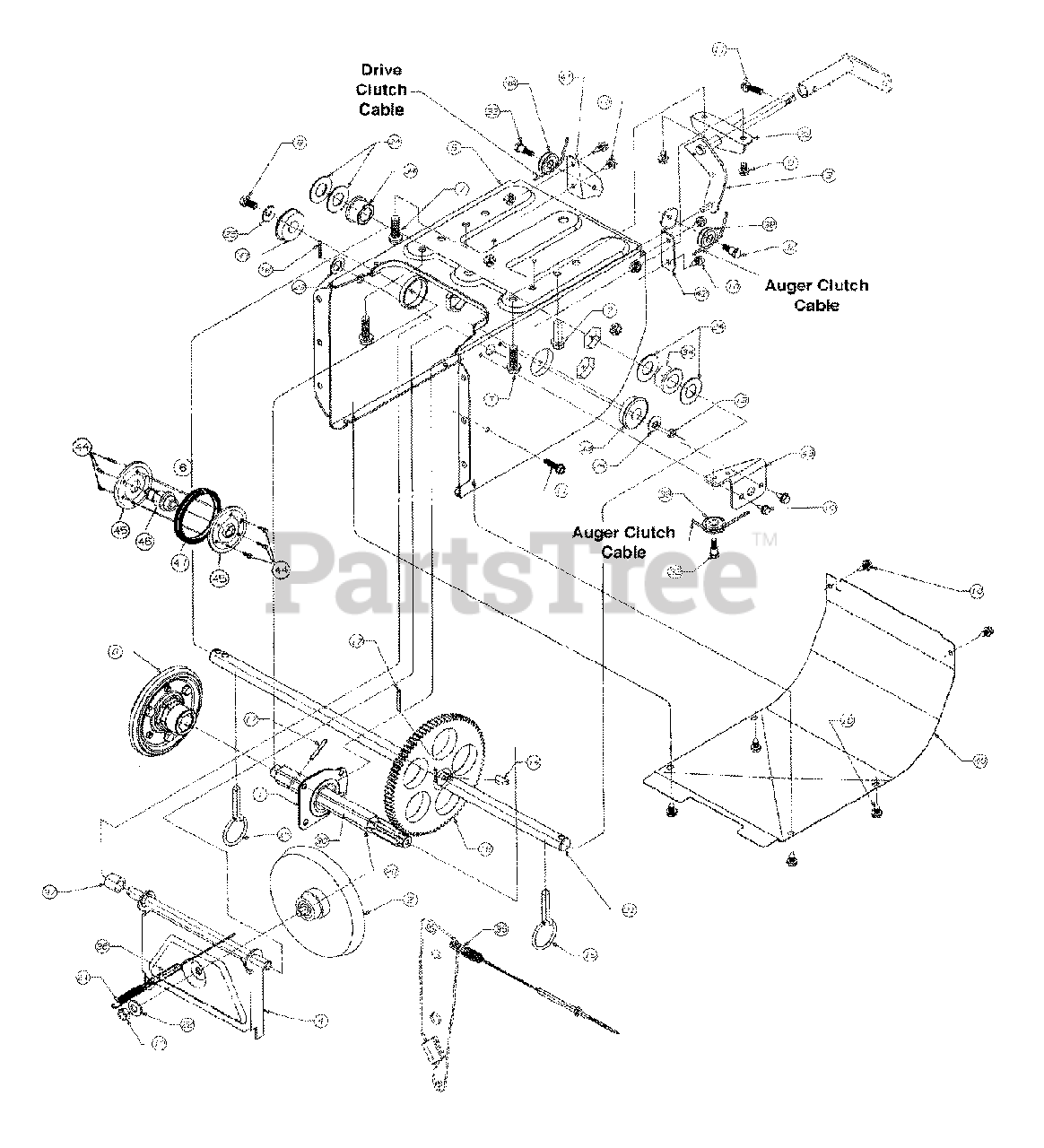

Axle, Bearing Ass'y And Frame Ass'y Parts Diagram

  • Title

1

MTD 618-0063

Bearing Ass'y.

$92.99

$

Usually ships in 3-6 days

0

2

MTD 956-0012A

Ass'y., Friction Wheel Disc

$125.99

$

In Stock, Qty 6

0

3

MTD 684-0013

Rod Shift, Wheel Drive

Note: NLA

$

$

Not available

4

MTD 984-0021-0637

Brkt. Ass'y. Friction Wheel

$

$

Not available

5

MTD 684-0030-0662

Frame Ass'y., 600 S/T

Note: NLA

$

$

Not available

6

MTD 984-0042C

Wheel Friction

$138.99

$

In Stock, Qty 17

0

7

MTD 710-0654A

Hex Self-Tap Screw

$4.49

$

In Stock, Qty 20+

0

8

MTD 710-0538

Hex, Bolt 5/16-18 x .62

$4.49

$

In Stock, Qty 7

0

9

MTD 710-0599

Scr., Hex Wash. Hd., TT 1/4-20 x .5"

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-0896

Hex Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0788

Screw, Hex

$7.49

$

In Stock, only 2 left!

0

13

MTD 712-0711

Nut, Hex

$4.49

$

In Stock, Qty 20+

0

14

MTD 914-0126

Key
(Superseded to 714-0126)

$4.99

$

In Stock, Qty 12

0

15

MTD 714-0143A

Pin, Klick

$6.49

$

In Stock, only 4 left!

0

16

MTD 914-0474

Pin, Cotter
(Superseded to 714-0474)

$

$

Not available

17

MTD 915-0249

Pin, Roll

$6.99

$

In Stock, Qty 20+

0

19

MTD 717-1445

Gear

$107.99

$

Usually ships in 3-6 days

0

20

MTD 917-04094

Shaft, Hex

$96.99

$

In Stock, only 2 left!

0

21

MTD 932-0264

Extension Spring

$4.99

$

In Stock, Qty 20+

0

22

MTD 736-0105

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

23

MTD 936-0160

Flat Washer

$4.49

$

In Stock, only 1 left!

0

24

MTD 736-0188

Washer, Flat

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0242

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

30

Lubricant

$

$

Not available

31

MTD 738-0869

Axle

Note: Used with 13" Wheels (For model 623)

$139.99

$

Usually ships in 3-6 days

0

31

MTD 738-0830

Axle

Note: Used with 16" Wheels (For models 633, 653 and 663)

$

$

Not available

32

MTD 738-0924A

Screw, Shoulder

$6.99

$

In Stock, Qty 5

0

33

MTD 941-0563

Bearing, Ball

$36.99

$

In Stock, Qty 7

0

34

MTD 941-0598

Flange Bearing

$12.99

$

In Stock, Qty 20+

0

35

MTD 946-0897

Cable, Auger

$24.99

$

In Stock, Qty 20+

0

36

MTD 946-0898

Cable, Clutch

$27.99

$

In Stock, Qty 19

0

37

MTD 748-0190

Spacer

$6.49

$

In Stock, Qty 11

0

38

MTD 756-0625

Roller, Cable

$9.49

$

In Stock, Qty 14

0

39

MTD 784-5590

Frame, Shift Bracket

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5590-0637

Shift Fram Bracket - POWDER BLACK (0637)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0662

Shift Fram Bracket - OYSTER GRAY (0662)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0638

BRACKET-SHIFT FRAM - MTD/TROY-BILT RED (0638)

$15.99

$

Usually ships in 3-6 days

0

MTD 784-5590-4033

BRACKET-SHIFT FRAM - FLINT MICA (4033)

$12.99

$

Usually ships in 3-6 days

0

MTD 784-5590-0650

BRACKET-SHIFT FRAM - RED METALLIC (0650)

$

$

Not available

MTD 784-5590-0689

BRACKET-SHIFT FRAM - POLO GREEN (0689)

$

$

Not available

MTD 784-5590-4021

BRACKET-SHIFT FRAM - CUB YELLOW 2 (4021)

$

$

Not available

$12.99

$

Usually ships in 3-6 days

0

40

MTD 784-5638A-0637

Cover, Frame

$

$

Not available

41

MTD 784-5688-0637

Bracket, Drive Cable Roller

$

$

Not available

42

MTD 784-5687A-0637

Brkt., Auger Clutch Cable Guide

$

$

Not available

43

MTD 784-5689A-0637

Brkt., Front Support Guide

$

$

Not available

44

MTD 710-0599

Hex Wash Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

45

MTD 784-5617

Friction Plate

Note: NLA

$

$

Currently unavailable

46

MTD 984-0042C

Friction Wheel Hub

$138.99

$

In Stock, Qty 17

0

47

MTD 935-0243B

Friction Wheel Rubber

$15.99

$

In Stock, Qty 20+

0
