SB-1050 (316E666H190) - White Outdoor Snow Boss Snow Thrower (1996) Gear And Housing Assembly Parts Diagram

Snow Boss Snow Thrower

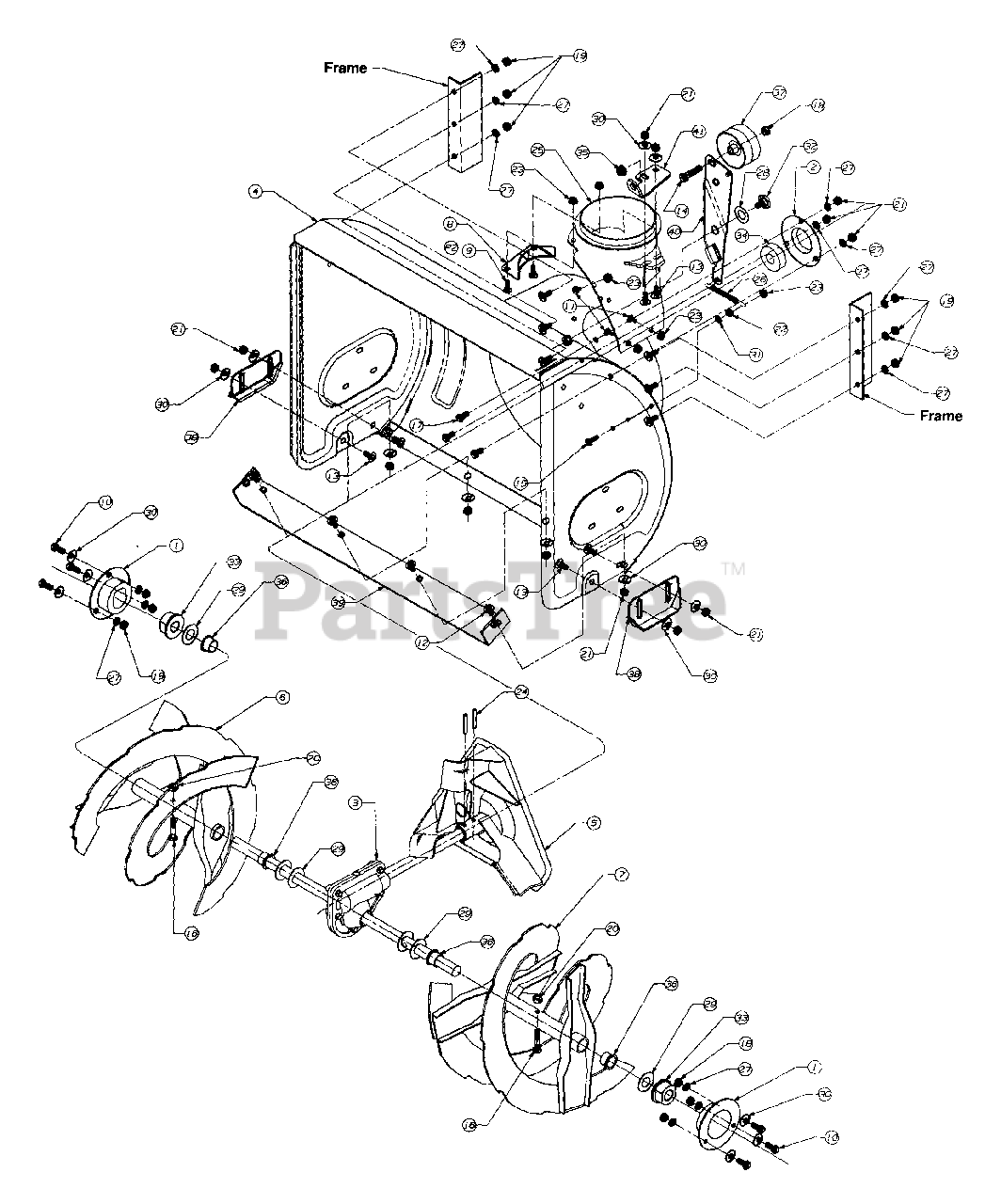

Gear And Housing Assembly Parts Diagram

  • Title

1

MTD 784-5618A-0637

Housing, Bearing

$13.99

$

In Stock, only 2 left!

0

2

MTD 05931A

Housing, Bearing

$10.99

$

Usually ships in 3-6 days

0

3

MTD 918-0414B

Gear Assembly

Note: (24" Auger)

$

$

Not available

3

MTD 918-0415B

Gear Assembly

Note: (26" Auger)

$442.99

$

Usually ships in 3-6 days

0

3

MTD 918-0417B

Gear Assembly

Note: (30" Auger)

$400.99

$

Usually ships in 3-6 days

0

4

MTD 684-0039D

24" Housing Assembly

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0039D-0483

No Longer Available - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0039D-0498

No Longer Available HOUSINGAS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0039D-0629

HOUSING ASM-24" - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0039D-0638

No Longer Available - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0039D-0650

HOUSING ASM-24" - RED METALLIC (0650)

$

$

Not available

MTD 684-0039D-0662

HOUSING ASM-24" - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0039D-0665

HOUSING ASM-24" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0039D-0687

HOUSING ASM-24" - PINE GREEN (0687)

$

$

Not available

MTD 684-0039D-0689

HOUSING ASM-24" - POLO GREEN (0689)

$

$

Not available

MTD 684-0039D-0691

HOUSING ASM-24" - BLACK JACK (0691)

$

$

Not available

MTD 684-0039D-0716

"No Longer Available HOUSING ASM-24""" - CUB YELLOW-99 (0716)

$

$

Not available

MTD 684-0039D-0709

"No Longer Available HOUSING ASM-24""" - MASTERCRAFT GREEN (0709)

$

$

Not available

$

$

4

MTD 684-0040A

26" Housing Assembly
(Superseded to 684-0040D)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 684-0040A-0483

HOUSING ASM-26" - CHARCOAL GRAY (0483)

$

$

Not available

MTD 684-0040A-0498

No Longer Available HOUSING AS - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0040A-0638

HOUSING ASM-26" - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 684-0040A-0662

No Longer Available - OYSTER GRAY (0662)

$

$

Not available

MTD 684-0040A-0629

HOUSING ASM-26" - SILVER FLAKE (0629)

$

$

Not available

MTD 684-0040A-0665

HOUSING ASM-26" - YARDMAN GREEN (0665)

$

$

Not available

MTD 684-0040A-0667

HOUSING ASM-26" - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 684-0040A-0689

HOUSING ASM-26" - POLO GREEN (0689)

$

$

Not available

$

$

4

MTD 684-0055

30" Housing Assembly

Note: NLA

Variations

MTD 684-0055-0498

No Longer Available - OLD CUB YELLOW (0498)

$

$

Not available

MTD 684-0055-0662

No Longer Available HOUSING AS - OYSTER GRAY (0662)

$

$

Not available

$

$

5

MTD 984-0065-0637

Fan Asm, Blower 12"
(Superseded to 684-06276-0637)

$90.99

$

In Stock, Qty 6

0

6

MTD 684-04180-0637

Spiral, 24" R.H.

$

$

Not available

6

MTD 684-04182-0637

Spiral, 26" R.H.

$187.99

$

Usually ships in 3-6 days

0

6

MTD 684-04186-0637

Spiral, 30" R.H.

$201.99

$

Usually ships in 3-6 days

0

7

MTD 684-04181-0637

Spiral, 24" L.H.

$178.99

$

In Stock, only 1 left!

0

7

MTD 684-04183-0637

Spiral, 26" L.H.

$

$

Not available

7

MTD 684-04187-0637

Spiral, 30" L.H.

$

$

Not available

8

MTD 705-5226

Reinforcement, Chute 5.0

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 705-5226-0637

Chute Reinforcement - POWDER BLACK (0637)

$10.99

$

In Stock, Qty 7

0

MTD 705-5226-0638

Chute Reinforcement - MTD/TROY-BILT RED (0638)

$10.99

$

In Stock, Qty 7

0

$9.99

$

Usually ships in 3-6 days

0

9

MTD 710-0167

Bolt, Carriage
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

10

MTD 710-0604A

Screw, Hex

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0167

Screw, Carriage
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

12

MTD 710-0451

Carriage Bolt

$4.49

$

In Stock, Qty 20+

0

13

MTD 710-0451

Screw, Carriage

$4.49

$

In Stock, Qty 20+

0

14

Welded to Ref. 100, 40

$

$

Not available

15

MTD 710-0812

Screw, Hex

$

$

Not available

16

MTD 710-0890A

Bolt, Shear

$1.99

$

In Stock, Qty 20+

0

17

MTD 710-3038

Screw, Hex

$4.99

$

In Stock, only 3 left!

0

18

MTD 912-0116

Hex Lock Nut
(Superseded to 712-0116)

$

$

Not available

19

MTD 912-3057

Hex Nut

$6.99

$

In Stock, only 2 left!

0

20

MTD 912-0158

Nut, Hex Lock

$3.49

$

In Stock, Qty 18

0

21

MTD 912-0267

Nut, Hex
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

22

MTD 912-0287

Hex Nut

$4.99

$

In Stock, only 1 left!

0

23

MTD 912-3027

Nut, Lock, Hex, Flanged

$4.49

$

In Stock, Qty 20+

0

24

MTD 915-0114

Spring Pin
(Superseded to 715-0114)

$9.49

$

In Stock, Qty 20+

0

25

MTD 731-1379D

Adapter, Chute

$65.99

$

In Stock, Qty 8

0

26

MTD 932-0611

Spring

$7.49

$

In Stock, Qty 20+

0

27

MTD 936-0119

Lock Washer

$4.99

$

In Stock, Qty 20+

0

28

MTD 936-0167

Washer, Flat

$6.99

$

In Stock, Qty 6

0

29

MTD 736-0188

Washer, Flat, .76 I.D. x 1.49 O.D. x .06

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0242

Washer, Bell

$4.49

$

In Stock, Qty 20+

0

31

MTD 936-0329

Washer, Lock

$4.49

$

In Stock, Qty 9

0

32

MTD 938-0281

Screw, Shoulder
(Superseded to 738-0281)

$

$

Not available

33

MTD 941-0245

Bearing, Flange

$9.99

$

In Stock, Qty 20+

0

34

MTD 941-0309

Bearing, Bolt

$74.99

$

Usually ships in 3-6 days

0

35

MTD 941-0475

Bushing, Plastic

$4.49

$

In Stock, Qty 20+

0

36

MTD 741-0493A

Bushing, Flange
(Superseded to 741-0493C)

$4.49

$

In Stock, Qty 20+

0

37

MTD 756-0178

Idler, Flat

$20.99

$

In Stock, only 4 left!

0

38

MTD 784-5580

Shoe, Slide

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

MTD 784-5580-0637

Snow Slide Shoe, Black - POWDER BLACK (0637)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0638

Snow Slide Shoe, Black - MTD/TROY-BILT RED (0638)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0662

Snow Slide Shoe, Black - OYSTER GRAY (0662)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0665

Snow Slide Shoe, Black - YARDMAN GREEN (0665)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0688

Snow Slide Shoe, Black - SPRING GREEN (0688)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-0721

Snow Skid Shoe - SEARS RED (0721)

$23.99

$

In Stock, Qty 16

0

MTD 784-5580-4044

Snow Skid Shoe - CRAFTSMAN RED (4044)

$23.99

$

In Stock, Qty 16

0

MTD 784-5580-0691

Snow Slide Shoe, Black - BLACK JACK (0691)

$23.99

$

In Stock, Qty 7

0

MTD 784-5580-0729

Snow Skid Shoe - STORM GRAY (0729)

$23.99

$

In Stock, Qty 20+

0

MTD 784-5580-4043

Snow Skid Shoe - CRAFTSMAN METALLIC GRAY (4043)

$23.99

$

In Stock, Qty 20+

0

$23.99

$

In Stock, Qty 20+

0

39

MTD 790-00120-0637

24" Shave Plate

$34.99

$

In Stock, Qty 20+

0

39

MTD 790-00121-0637

26" Shave Plate

$36.99

$

In Stock, Qty 20+

0

39

MTD 790-00119-0637

30" Shave Plate

$39.99

$

In Stock, Qty 20+

0

40

MTD 984-0064-0637

Arm, Auger Idler

$32.99

$

In Stock, only 2 left!

0

41

MTD 784-5647-0637

Bracket, Chute Crank

$14.99

$

In Stock, Qty 5
