SB-1050 (315E666H190) - White Outdoor Snow Boss Snow Thrower (1995) Snow Throwers Illustration (Part 4) Parts Diagram

Snow Boss Snow Thrower

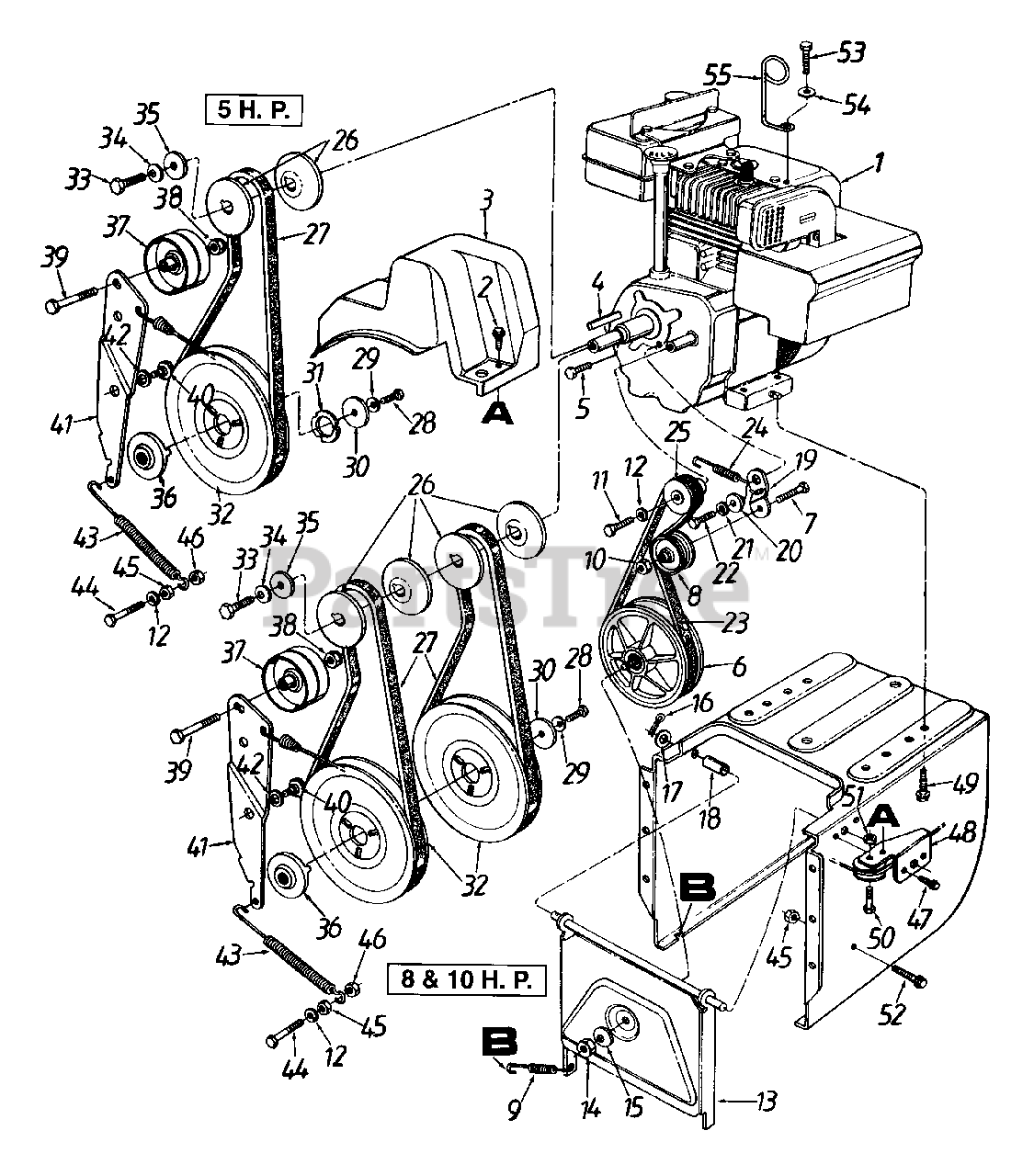

Snow Throwers Illustration (Part 4) Parts Diagram

  • Title

1

Engine

$

$

Not available

2

MTD 710-0599

Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

3

MTD 731-1324

Belt Cover

$21.99

$

In Stock, only 4 left!

0

4

MTD 914-0133

Sq. - Key 3/16 x 1.5" Lg. (646F & 666H)
(Superseded to 714-0133)

$

$

Not available

4

MTD 914-0122

Sq. - Key 3/16 x .75" Lg. (616E)
(Superseded to 714-0122)

$

$

Not available

5

MTD 710-0627

Hex Patch Bolt 5/16-24 x 1" Lg. (Gr. 5)

$4.49

$

In Stock, Qty 20+

0

6

MTD 956-0012A

Friction Wheel Disc Ass'y.

$125.99

$

In Stock, Qty 6

0

7

MTD 710-3005

Hex Bolt 3/8-16 x 1.25" Lg.

$3.99

$

In Stock, Qty 20+

0

8

MTD 756-0313

Fl-Idler 2.12" O.D.

$26.99

$

In Stock, only 3 left!

0

9

MTD 932-0264

Ext. Spring 2.5" Lg.

$4.99

$

In Stock, Qty 20+

0

10

MTD 912-0181

Hex Top L-Nut 3/8-16 Thd.
(Superseded to 712-0181)

$

$

Not available

11

MTD 710-0230

Hex Bolt 1/4-28 x .5" Lg.

$

$

Not available

12

MTD 936-0329

L-Wash. 1/4" I.D."

$4.49

$

In Stock, Qty 9

0

13

MTD 984-0021-0637

Friction Wheel Support Brkt. Ass'y.

$

$

Not available

14

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

15

MTD 736-0105

Bell - Wash. .38" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

16

MTD 914-0474

Cotter Pin 1/8" x .75" Lg.
(Superseded to 714-0474)

$

$

Not available

17

MTD 936-0160

Fl-Wash. .531" I.D. x .93" O.D.

$4.49

$

In Stock, only 1 left!

0

18

MTD 748-0190

Spacer .508" I.D. x .75" O.D.

$6.49

$

In Stock, Qty 11

0

19

MTD 05896A

Drive Clutch Idler Bracket

Note: NLA

Variations

MTD 05896A-0637

No Longer Available BRACKET-ID - POWDER BLACK (0637)

$

$

Not available

$

$

20

MTD 748-0234

Shld. Spacer .5" Dia. x .27" Lg.

$4.49

$

In Stock, Qty 20+

0

21

UNKNOWN

$

$

Not available

22

MTD 710-0888

Hex Bolt 5/16-24 x 1" Lg. (616E)

$4.49

$

In Stock, Qty 20+

0

22

MTD 710-0604A

Hex Wash. Hd. Tap Scr. 5/16-18 x .62" Lg. (646F & 666H)

$4.49

$

In Stock, Qty 20+

0

23

MTD 954-0343

V Belt (616E)

$29.99

$

In Stock, Qty 9

0

23

MTD 954-0346

V Belt (646F & 666H)

$28.99

$

In Stock, Qty 20+

0

24

MTD 932-0339

Extension Spring (616E)

$

$

Not available

24

MTD 932-0710

Extension Spring (646F & 666H)

$7.49

$

In Stock, Qty 16

0

25

MTD 956-0959

2" Dia. Pulley

$

$

Not available

26

MTD 756-0569

3/8 "V" - Pulley Half

$10.99

$

Usually ships in 3-6 days

0

27

MTD 954-0430B

V - Belt (616E)
(Superseded to 954-0430C)

$28.99

$

In Stock, Qty 20+

0

28

MTD 710-0627

Hex Cap L-Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

29

MTD 736-0242

Bell - Wash .345" I.D. x .88" O.D.

$4.49

$

In Stock, Qty 20+

0

30

MTD 736-0505

Fl-Wash .34" I.D. x 1.5" O.D.

$6.49

$

In Stock, Qty 11

0

31

MTD 936-0507

Brg. Retaining Washer (616E Only)

$6.99

$

Usually ships in 3-6 days

0

32

MTD 756-0967

Auger Pulley

$56.99

$

Usually ships in 3-6 days

0

33

MTD 710-0696

Hex Bolt 3/8-24 x .88" Lg.

$6.99

$

In Stock, only 2 left!

0

34

MTD 736-0331

Bell - Wash. .39" I.D. x 1.13" O.D.

$3.99

$

In Stock, Qty 20+

0

35

MTD 736-0247

Fl-Wash .406" I.D. x 1.25" O.D.

$9.49

$

In Stock, Qty 12

0

36

MTD 948-0360

Adapter Pulley

$22.99

$

In Stock, only 1 left!

0

37

MTD 756-0178

Fl-Idler 2.75" O.D.

$20.99

$

In Stock, only 4 left!

0

38

MTD 912-0116

Hex Ins. L-Nut 3/8-24 Thd.
(Superseded to 712-0116)

$

$

Not available

39

MTD 710-0459A

Hex Bolt 3/8-24 x 1.5" Lg. (Gr 5)

$6.99

$

In Stock, Qty 8

0

40

MTD 938-0281

Shld Bolt .625" Dia. x .170" Lg.
(Superseded to 738-0281)

$

$

Not available

41

MTD 984-0064-0637

Auger Idler Brkt.

$32.99

$

In Stock, only 2 left!

0

42

MTD 736-0174

Wave Wash .66" I.D. x .88"

$6.99

$

In Stock, Qty 8

0

43

MTD 932-0611

Ext. Spring 3.6" Lg

$7.49

$

In Stock, Qty 20+

0

44

MTD 710-0812

Hex Bolt 1/4-20 x .75" Lg (Gr 5)

$

$

Not available

45

MTD 912-0287

Hex Nut 1/4-20 Thd.

$4.99

$

In Stock, only 1 left!

0

46

MTD 912-0291

Hex L-Nut 1/4-20 Thd
(Superseded to 712-0291)

$

$

Not available

47

MTD 710-1017

Torx Mach. AB-Tap Scr 1/4 x .62" Lg

$8.49

$

In Stock, Qty 9

0

48

MTD 784-5658-0637

Front Support Brkt Guide

$

$

Not available

49

MTD 710-0502A

Hex L-Wash TT-Tap Scr 3/8-16 x 1.25" Lg

$6.99

$

In Stock, only 2 left!

0

50

MTD 738-0870

Shld. Bolt 5/16" Dia x 35" Lg

Note: NLA

$

$

Not available

51

MTD 912-0298

Hex Jam Nut 1/4-20 Thd

$6.49

$

Usually ships in 3-6 days

0

52

MTD 710-0788

Hex Wash Hd TT-Tap Scr. 1/4-20 x 1" Lg.

$7.49

$

In Stock, only 2 left!

0

53

MTD 710-0602

Hex Wash Hd Tap Scr 5/16-18 x 1" Lg. (646F & 666H)

$4.49

$

In Stock, Qty 20+

0

54

MTD 936-0159

Fl-Wash. .349" I.D. x .879" O.D. (646F & 666H)
(Superseded to 736-0159)

$

$

Not available

55

MTD 732-0705

Cable Control Wire (646F & 666H)

$11.99

$

Usually ships in 3-6 days

0

MTD 929-0071A

Extension Cord - 3-Prong for 110V Electric Starter. P/N
(Superseded to 929-0071B)

$21.99

$

In Stock, Qty 12

0
