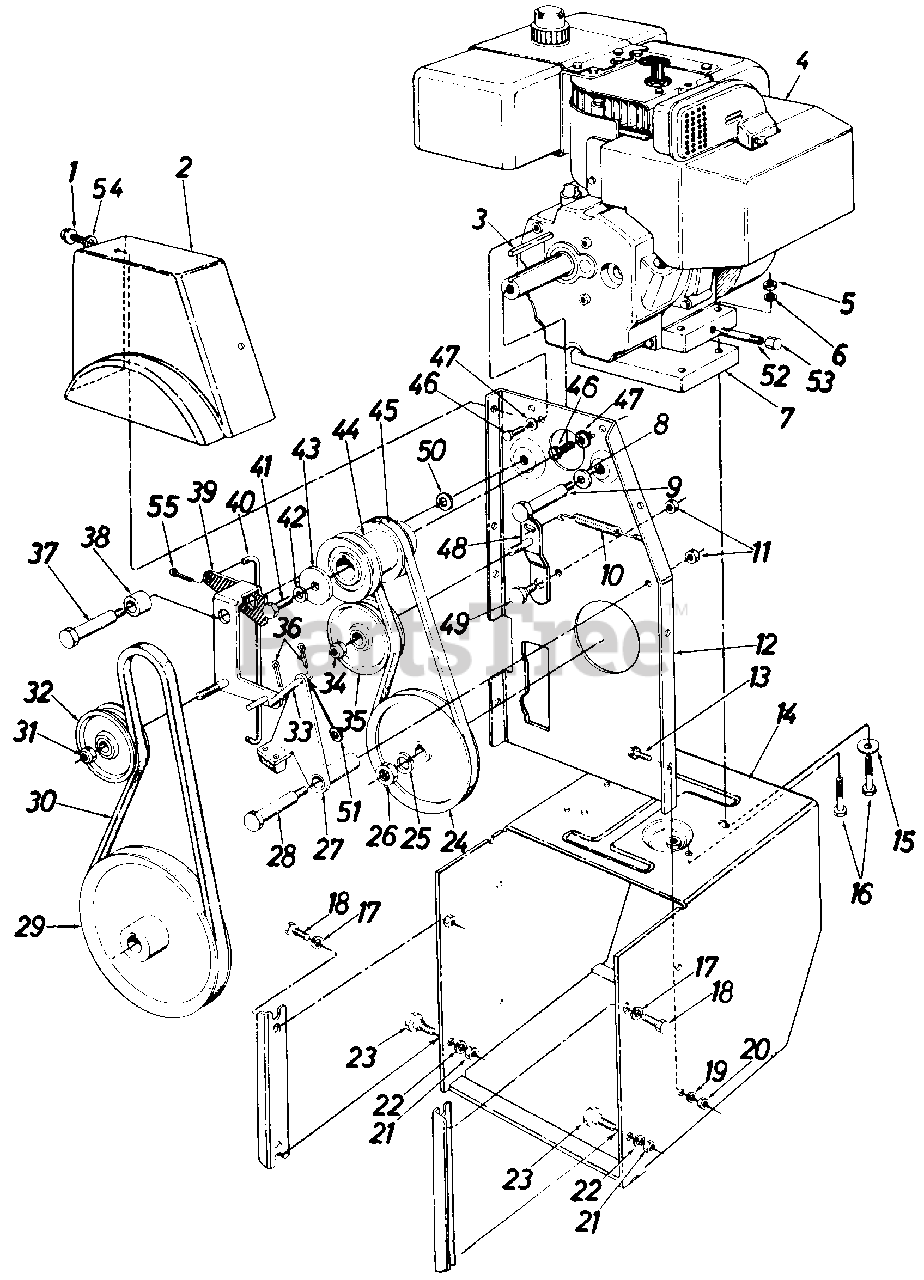

SB-1010 (311-850-190) - White Outdoor Snow Boss Snow Thrower (1991) Drive Assembly Parts Diagram

Snow Boss Snow Thrower

Drive Assembly Parts Diagram

  • Title

1

MTD 710-0726

Hex AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

2

MTD 931-2531

Belt Cover

$51.99

$

Usually ships in 3-6 days

0

3

MTD 714-0118

Sq. Key 1/4" X 1.50" Lg.

$6.99

$

In Stock, only 4 left!

0

4

Engine

$

$

Not available

5

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

6

MTD 936-0119

L-Wash. 5116" I.D.*

$4.99

$

In Stock, Qty 20+

0

7

MTD 717-0522

Engine Spacer Ass'y.

$

$

Not available

8

MTD 736-0105

Bell-Wash. .40 I.D. x .88 O.D.

$4.49

$

In Stock, Qty 20+

0

9

MTD 738-0215A

Shld. Bolt .498" Dia. x 3.00" Lg.

$9.49

$

Usually ships in 3-6 days

0

10

MTD 932-0303

Ext. Spring .38 O.D. x 3.18" Lg.

$10.99

$

In Stock, Qty 12

0

11

MTD 712-0375

Hex Cent. L-Nut 3/8-16 Thd.

$4.49

$

In Stock, Qty 6

0

12

MTD 05491A

Engine Brkt. Ass'y.

Note: NLA

$

$

Not available

13

MTD 910-0198

Hex Sems Scr. 5/16-18 x .75" Lg.*

$

$

Not available

14

MTD 784-5129B

Frame Ass'y.

Note: NLA

$

$

Currently unavailable

15

MTD 936-0264

Fl-Wash. .345 I.D. x .75 O.D. x .060

$6.99

$

In Stock, only 3 left!

0

16

MTD 710-0378

Hex Bolt 5/16-18 x 2.50" Lg.

$4.99

$

In Stock, only 4 left!

0

17

MTD 936-0217

L-Wash. 318" I.D. H.D.
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 9

0

18

MTD 710-0216

Pilot Scr. 3/8-16 x .88" Lg.

$4.49

$

In Stock, Qty 16

0

19

MTD 936-0119

L-Wash. 5/16" I.D.

$4.99

$

In Stock, Qty 20+

0

20

MTD 912-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

21

MTD 712-0798

Hex Nut 3/8-16 Thd.*

$4.49

$

In Stock, only 2 left!

0

22

MTD 936-0217

L-Wash. 3/8" I.D. H.D.
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 9

0

23

MTD 738-0143

Shld. Bolt .498" Dia. x .340" Lg.

$4.49

$

In Stock, Qty 20+

0

24

MTD 756-0344

V-Pulley .628 I.D. x 7.50 O.D.

$81.99

$

Usually ships in 3-6 days

0

25

MTD 936-0158

L-Wash. for 5/8" I.D.*

$4.49

$

In Stock, Qty 11

0

26

MTD 712-0221

Hex Ins. Jam L-Nut 5/8-18 Thd.

$

$

Not available

27

MTD 05510A

Brake Brkt. Ass'y.

$

$

Not available

28

MTD 738-0129

Shld. Bolt .498" Dia. x 2.00" Lg.

$11.99

$

In Stock, only 1 left!

0

29

MTD 756-0243

V-Pulley .875 I.D. x 10.12 O.D.

$94.99

$

Usually ships in 3-6 days

0

30

MTD 954-0194

V-Belt

$29.99

$

In Stock, only 1 left!

0

31

MTD 912-0116

Hex Ins. Jam L-Nut 3/8-24 Thd.
(Superseded to 712-0116)

$

$

Not available

32

MTD 756-0240

Fl-ldler w/Flanges 3.0 O.D.

$

$

Not available

33

MTD 05531

Brake Linkage Ass'y.

Note: NLA

$

$

Not available

34

MTD 912-0116

Hex Ins. Jam L-Nut 3/8-24 Thd.
(Superseded to 712-0116)

$

$

Not available

35

MTD 756-0240

3.0" O.D. Fl-ldler w/Flanges

$

$

Not available

36

MTD 914-0507

Int. Cot. Pin 3/32" Dia.

$4.49

$

In Stock, Qty 17

0

37

MTD 738-0282

Shld. Bolt .625" Dia. x 2.750" Lg.

Note: NLA

$

$

Not available

38

MTD 750-0227

Spacer .75 O.D. x 1.00" Lg.

Note: NLA

$

$

Currently unavailable

39

MTD 05493

Blower Idler Brkt. Ass'y.

Note: NLA

Variations

MTD 05493-0637

No Longer Available BRACKET AS - POWDER BLACK (0637)

$

$

Not available

$

$

40

MTD 747-0149

Auger Clutch Rod .31" Dia. x 10.62" Lg.

Note: NLA

$

$

Currently unavailable

41

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

42

MTD 936-0217

L-Wash. 3/8" I.D. H.D.
(Superseded to 736-0217)

$4.49

$

In Stock, Qty 9

0

43

MTD 07386

Fl-Wash.

$

$

Not available

44

MTD 756-0241B

Engine Pulley-Double Groove

$99.99

$

In Stock, only 1 left!

0

45

MTD 954-0131

V-Belt

$28.99

$

In Stock, Qty 5

0

46

MTD 710-0237

Hex Bolt 5/16-24 x .62" Lg.

$4.49

$

In Stock, only 1 left!

0

47

MTD 736-0242

Bell-Wash. .345 I.D. x .88 0 O.D. x .060

$4.49

$

In Stock, Qty 20+

0

48

MTD 05495

Drive Idler Brkt. Ass'y.

Note: NLA

$

$

Currently unavailable

49

MTD 938-0281

Shld. Bolt-.625" Dia. x .170" Lg.
(Superseded to 738-0281)

$

$

Not available

50

MTD 936-0219

Bell-Wash. .40 I.D. x 1.12 O.D.

$4.49

$

Usually ships in 3-6 days

0

51

MTD 936-0117

Fl-Wash. .385" I.D. x .620" O.D.

$7.49

$

In Stock, only 1 left!

0

52

MTD 737-0298

Pipe Nipple-1/4" Pipe Thd. x 3.5" Lg.

$12.99

$

Usually ships in 3-6 days

0

53

MTD 737-0132

Hex Hd. Cap 1/4-18 Pipe Thd.

$10.99

$

Usually ships in 3-6 days

0

54

MTD 936-0264

Fl-Wash. .340 I.D. x .62 O.D. x .62

$6.99

$

In Stock, only 3 left!

0

55

MTD 914-0104

Int. Cot. Pin 5/16" Dia.
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

MTD TC-35062

Ignition Key

$3.99

$

In Stock, only 1 left!

0
