SAR481KA30CA - Exmark 30" Stand-On Aerator, Kawasaki FS481V, CARB (SN: 314000000 - 314999999) (2014) Ground Drive Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS481V, CARB

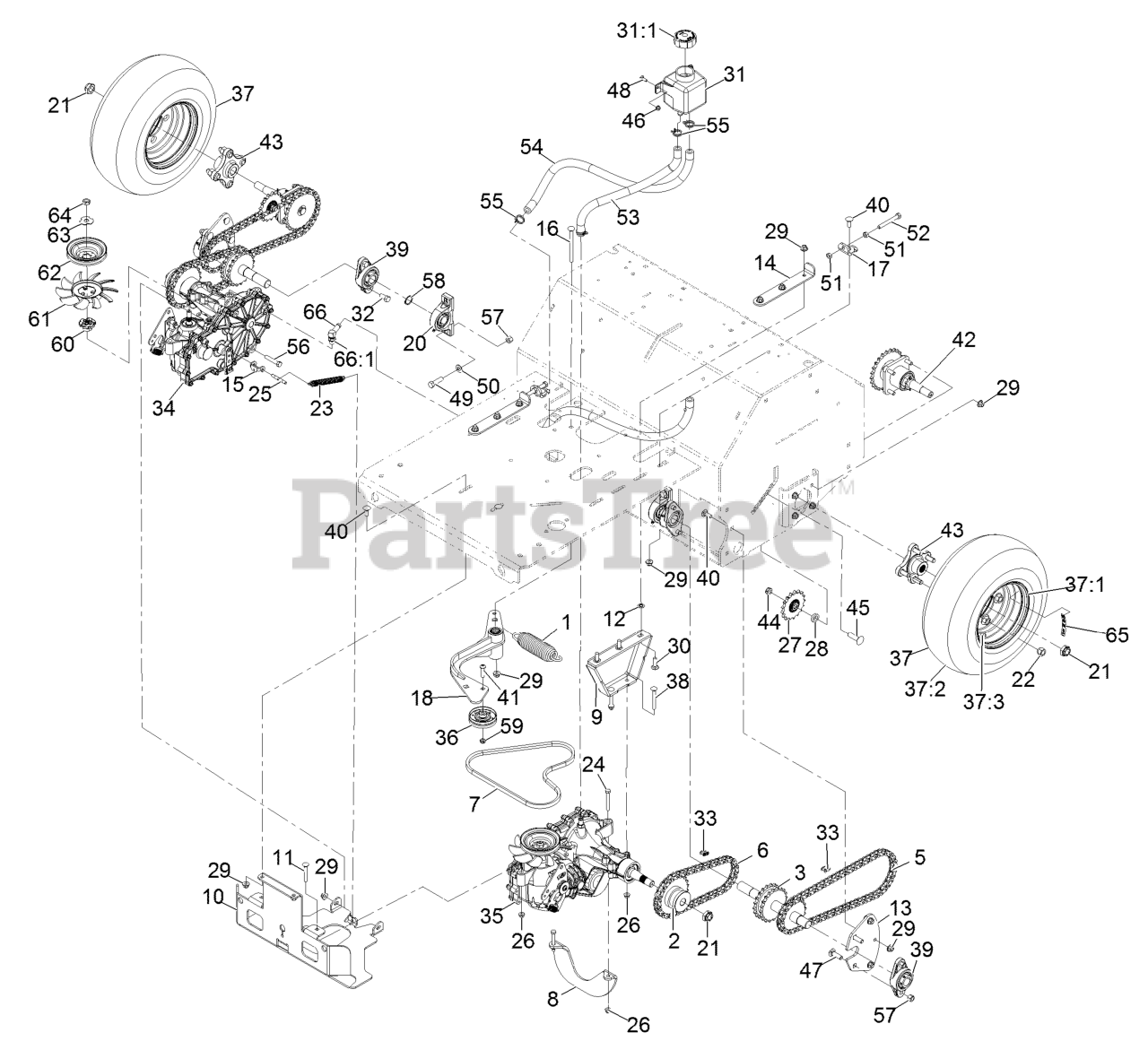

Ground Drive Assembly Parts Diagram

  • Title

1

Exmark 116-6317

SPRING-EXTENSION

$28.99

$

In Stock, Qty 20+

0

2

Exmark 116-9305

HUB-DRIVE, CHAIN

$165.99

$

In Stock, Qty 6

0

3

Exmark 116-9684

126-5625
(Superseded to 126-5625)

$218.99

$

In Stock, Qty 15

0

5

Exmark 116-6895

126-8808
(Superseded to 126-8808)

$227.99

$

In Stock, Qty 20+

0

6

Exmark 116-6896

126-8807
(Superseded to 126-8807)

$182.99

$

In Stock, only 2 left!

0

7

Exmark 116-8874

BELT-4L SECTION
(Superseded to 116-8874-SL)

$35.99

$

In Stock, Qty 20+

0

8

Exmark 116-9127-03

BRACE-ANGLE
(Superseded to 135-5051-03)

$31.99

$

Usually ships in 3-6 days

0

9

Exmark 116-9710-03

MOUNT-TRANSMISSION

$43.99

$

Usually ships in 3-6 days

0

10

Exmark 116-9711-03

GUARD-TRANSMISSION

$222.99

$

Usually ships in 3-6 days

0

11

Exmark 3230-7

BOLT-CARR

$0.99

$

In Stock, Qty 10

0

12

Exmark 107-3154

NUT-PUSH

$1.49

$

In Stock, Qty 6

0

13

Exmark 116-6596-01

PLATE-JACKSHAFT

$35.99

$

Usually ships in 3-6 days

0

14

Exmark 116-6619

PLATE-ADJUSTMENT, TRANSMI

$26.99

$

In Stock, only 4 left!

0

15

Exmark 116-7597

YOKE-BRAKE, PARK

$63.99

$

Usually ships in 3-6 days

0

16

Exmark 9000779

BOLT-CARR

$2.99

$

Usually ships in 3-6 days

0

17

Exmark 116-6723

BRACKET-HYDRO, ADJUST

$21.99

$

In Stock, only 3 left!

0

18

Exmark 116-9307

IDLER ARM ASM

$158.99

$

Usually ships in 3-6 days

0

20

Exmark 116-6756

BEARING-PILLOW BLOCK

$53.99

$

In Stock, only 3 left!

0

21

Exmark 116-2839

NUT-LOCK

$11.99

$

In Stock, only 3 left!

0

22

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

In Stock, only 4 left!

0

23

Exmark 76-4660

SPRING-DOOR

$11.99

$

In Stock, Qty 5

0

24

Exmark 322-12

SCREW-HH

$2.49

$

In Stock, Qty 10

0

25

Exmark 116-7596

PIN-BRAKE, PARK

$20.99

$

Usually ships in 3-6 days

0

26

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

27

Exmark 116-6719

126-9108
(Superseded to 126-9108)

$114.99

$

In Stock, only 2 left!

0

28

Exmark 104-8417

WASHER

$9.49

$

In Stock, only 2 left!

0

29

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

30

Exmark 3231-25

BOLT-CARR
(Superseded to 119-4162)

$1.99

$

In Stock, Qty 20+

0

31

Exmark 109-2250

TANK-HYD

$66.99

$

In Stock, Qty 8

0

31:1

Exmark 109-3320

CAP-RESERVOIR, HYD

$28.99

$

In Stock, only 1 left!

0

32

Exmark 116-7109

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

33

Exmark 116-6897

LINK-CONNECTING

$7.99

$

In Stock, Qty 14

0

34

Exmark 116-9712

RH TRANSAXLE ASM (NO FAN)

$1719.99

$

In Stock, only 1 left!

0

35

Exmark 116-9713

LH TRANSAXLE ASM (NO FAN)

$1536.99

$

Usually ships in 3-6 days

0

36

Exmark 116-9715

PULLEY-IDLER

$60.99

$

In Stock, only 1 left!

0

37

Exmark 116-6932

TIRE ASM (16 X 6.50-8)

$195.99

$

In Stock, Qty 16

0

37:1

Exmark 116-6977

RIM (8 X 5.375)

$90.99

$

Usually ships in 3-6 days

0

37:2

Exmark 116-6978

TIRE

$120.99

$

Usually ships in 3-6 days

0

37:3

Exmark 232-27

Stem-Valve

$

$

Not available

38

Exmark 3230-9

SCREW-CARR

$3.99

$

In Stock, Qty 15

0

39

Exmark 116-6777

BEARING-FLANGE, 2 BOLT

$45.99

$

In Stock, Qty 12

0

40

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

41

Exmark 116-9927

SCREW-HSBH

$2.99

$

Usually ships in 3-6 days

0

42

Exmark 116-9545

AXLE AND BEARING ASM

$754.99

$

Usually ships in 3-6 days

0

43

Exmark 116-3872

HUB-OFFSET

$69.99

$

In Stock, only 2 left!

0

44

Exmark 3296-45

NUT-HEX

$4.49

$

In Stock, Qty 20+

0

45

Exmark 3233-14

SCREW-CARR

$17.99

$

In Stock, Qty 20+

0

46

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

47

Exmark 323-23

SCREW-HH

$5.49

$

In Stock, Qty 20+

0

48

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

49

Exmark 324-6

1-800811
(Superseded to 1-800811)

$11.99

$

In Stock, only 3 left!

0

50

Exmark 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

51

Exmark 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

52

Exmark 99-8664

SCREW-HH

$2.99

$

In Stock, Qty 5

0

53

Exmark 116-6775

HOSE-HYDRAULIC

$19.99

$

Usually ships in 3-6 days

0

54

Exmark 116-6776

HOSE-HYDRAULIC

$26.99

$

Usually ships in 3-6 days

0

55

Exmark 109-3322

CLAMP-HOSE

$1.49

$

In Stock, Qty 9

0

56

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

57

Exmark 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

58

Exmark 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 15

0

59

Exmark 3296-59

121-4600
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 20+

0

60

Exmark 116-9705

HUB-PULLEY

$8.49

$

In Stock, only 1 left!

0

61

Exmark 116-9706

FAN

$

$

Not available

62

Exmark 116-9707

PULLEY

$28.99

$

In Stock, only 1 left!

0

63

Exmark 116-9708

WASHER-SLOTTED

$5.49

$

In Stock, only 1 left!

0

64

Exmark 116-9714

NUT-HJ

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, only 4 left!

0

65

Exmark 126-2054

DECAL-HUB, WHEEL

$5.49

$

Usually ships in 3-6 days

0

66

Exmark 109-6449

FITTING-ELBOW, 90

$33.99

$

Usually ships in 3-6 days

0

66:1

Exmark 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

99

Exmark 109-9828

BOTTLE-OIL, 32OZ HYDRAULIC

Note: Not illustrated

$18.99

$

In Stock, Qty 20+

0
