SAR481KA30CA - Exmark 30" Stand-On Aerator, Kawasaki FS481V, CARB (SN: 314000000 - 314999999) (2014) Fuel Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS481V, CARB

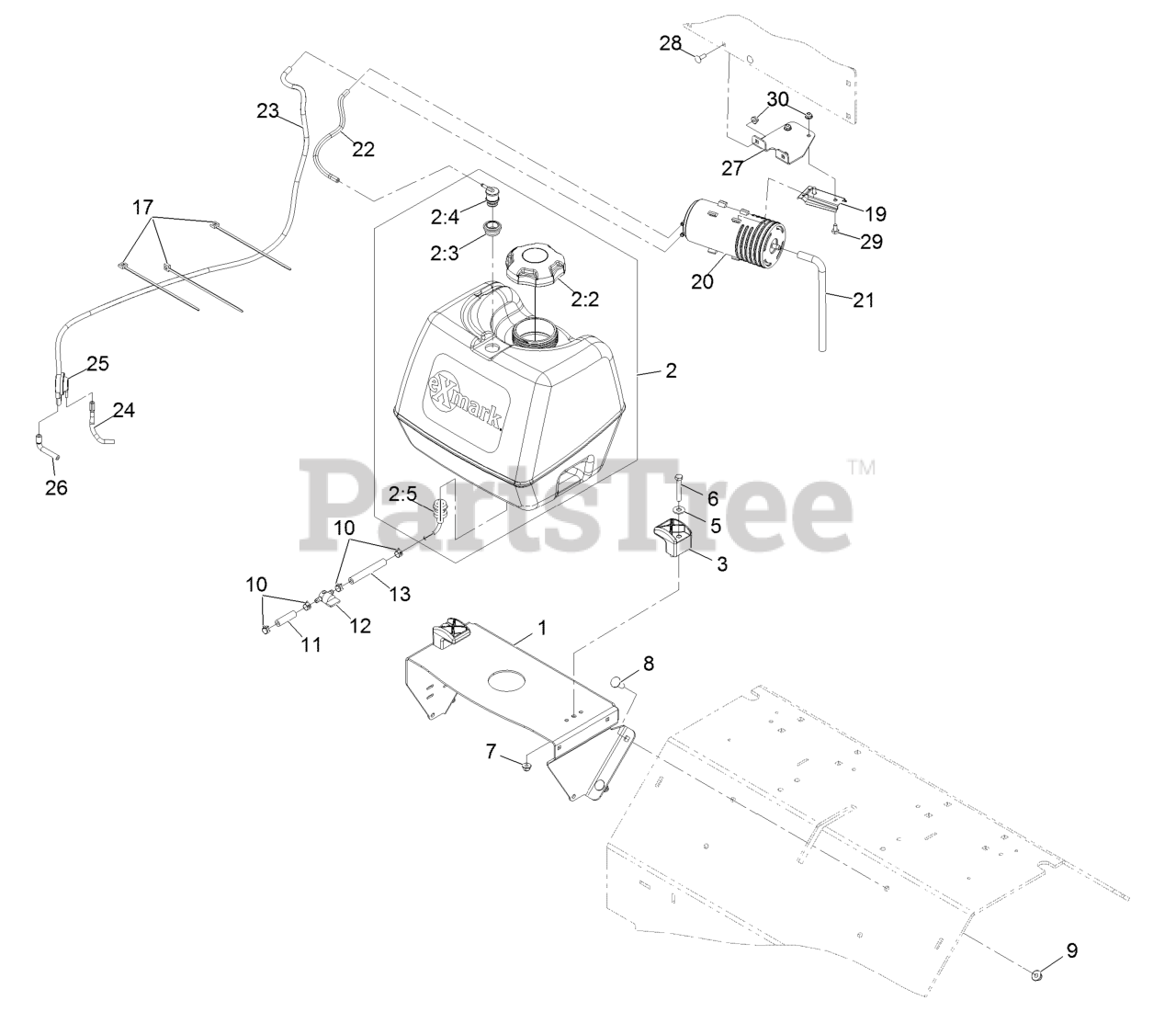

Fuel Assembly Parts Diagram

  • Title

1

Exmark 116-9541-01

SUPPORT-TANK, FUEL

$108.99

$

Usually ships in 3-6 days

0

2

Exmark 126-1525

ASM, FUEL TANK
(Superseded to 140-4343)

$279.99

$

In Stock, only 1 left!

0

2:2

Exmark 120-5461

137-4119
(Superseded to 137-4119)

$27.99

$

In Stock, only 1 left!

0

2:3

Exmark 114-0284

GROMMET

$2.99

$

In Stock, Qty 19

0

2:4

Exmark 119-3547

VALVE-VENT, FUEL

$16.99

$

In Stock, only 4 left!

0

2:5

Exmark 103-2605

FITTING-FUEL, BULKHEAD

$36.99

$

In Stock, only 2 left!

0

3

Exmark 107-4543

CLAMP

$14.99

$

Usually ships in 3-6 days

0

5

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

8

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

9

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 2412-98

CLAMP-HOSE

$1.49

$

In Stock, Qty 20+

0

11

Exmark 119-7856

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

12

Exmark 1-603770

VALVE-FUEL

$8.49

$

In Stock, Qty 7

0

13

Exmark 105-8342

HOSE-FUEL

$6.49

$

In Stock, only 4 left!

0

17

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

19

Exmark 114-0292

BRACKET-CANISTER, CARBON

$12.99

$

Usually ships in 3-6 days

0

20

Exmark 117-1221

CANISTER-CARBON, 800CC

$75.99

$

In Stock, only 1 left!

0

21

Exmark 115-0962

HOSE-VENT, CANISTER

$8.99

$

In Stock, only 2 left!

0

22

Exmark 126-3703

HOSE-EMISSIONS

$6.49

$

Usually ships in 3-6 days

0

23

Exmark 116-3116

HOSE-VENT, FORMED

$15.99

$

Usually ships in 3-6 days

0

24

Exmark 116-2394

HOSE-VENT, FORMED

$7.99

$

In Stock, only 2 left!

0

25

Exmark 116-2232

VALVE-CONTROL, VACUUM

$33.99

$

In Stock, only 3 left!

0

26

Exmark 116-2233

HOSE-VENT, FORMED

$7.99

$

Usually ships in 3-6 days

0

27

Exmark 126-2991-03

BRACKET-MOUNTING, CANISTE

$30.99

$

Usually ships in 3-6 days

0

28

Exmark 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

29

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 1 left!

0

30

Exmark 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0
