SAR481KA30 - Exmark 30" Stand-On Aerator, Kawasaki FS481V (SN: 314000000 - 314999999) (2014) Engine Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS481V

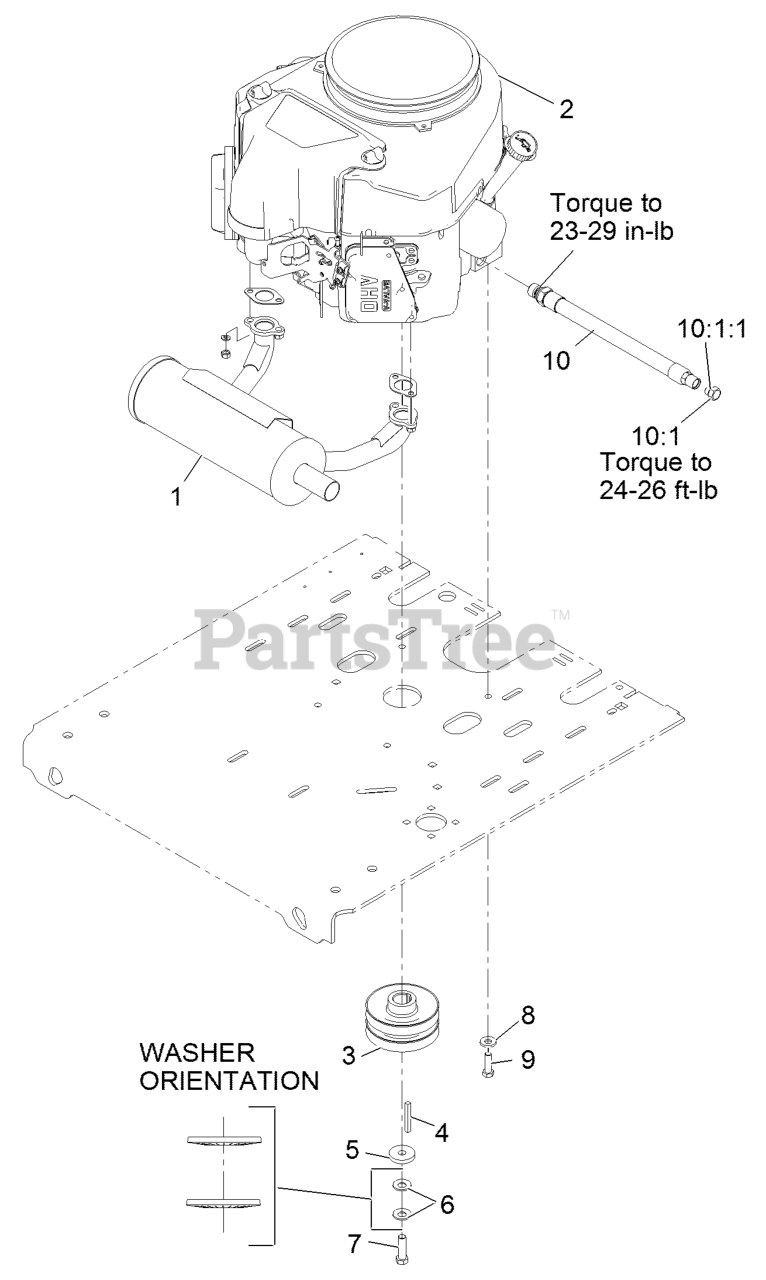

Engine Assembly Parts Diagram

  • Title

1

Exmark 116-3735

MUFFLER-HORIZONTAL

$210.99

$

Usually ships in 3-6 days

0

2

Engine-Kawasaki, Fs481v_s25-R

Note: Not serviced separately, Obtain parts from www.kawpowerepc.com

$

$

Not available

3

Exmark 116-9709

PULLEY

$148.99

$

Usually ships in 3-6 days

0

4

Exmark 103-4177

KEY

$5.49

$

In Stock, only 1 left!

0

5

Exmark 1-543610

WASHER-CLUTCH

$6.49

$

In Stock, Qty 5

0

6

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

7

Exmark 109-9761

SCREW-HH 7/16-20 X 1 1/2 W/LOCTITE

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$5.49

$

In Stock, Qty 6

0

8

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

9

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

10

Exmark 116-4924

ENGINE OIL DRAIN HOSE ASM

Note: Use a Teflon Pipe Sealant or equivalent on threads.

$37.99

$

In Stock, Qty 5

0

10:1

Exmark 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

10:1:1

Exmark 237-42

O-RING

$2.99

$

In Stock, Qty 9

0
