SAR481KA30 - Exmark 30" Stand-On Aerator, Kawasaki FS481V (SN: 313000000 - 313999999) (2013) Fuel Assembly Parts Diagram

30" Stand-On Aerator, Kawasaki FS481V

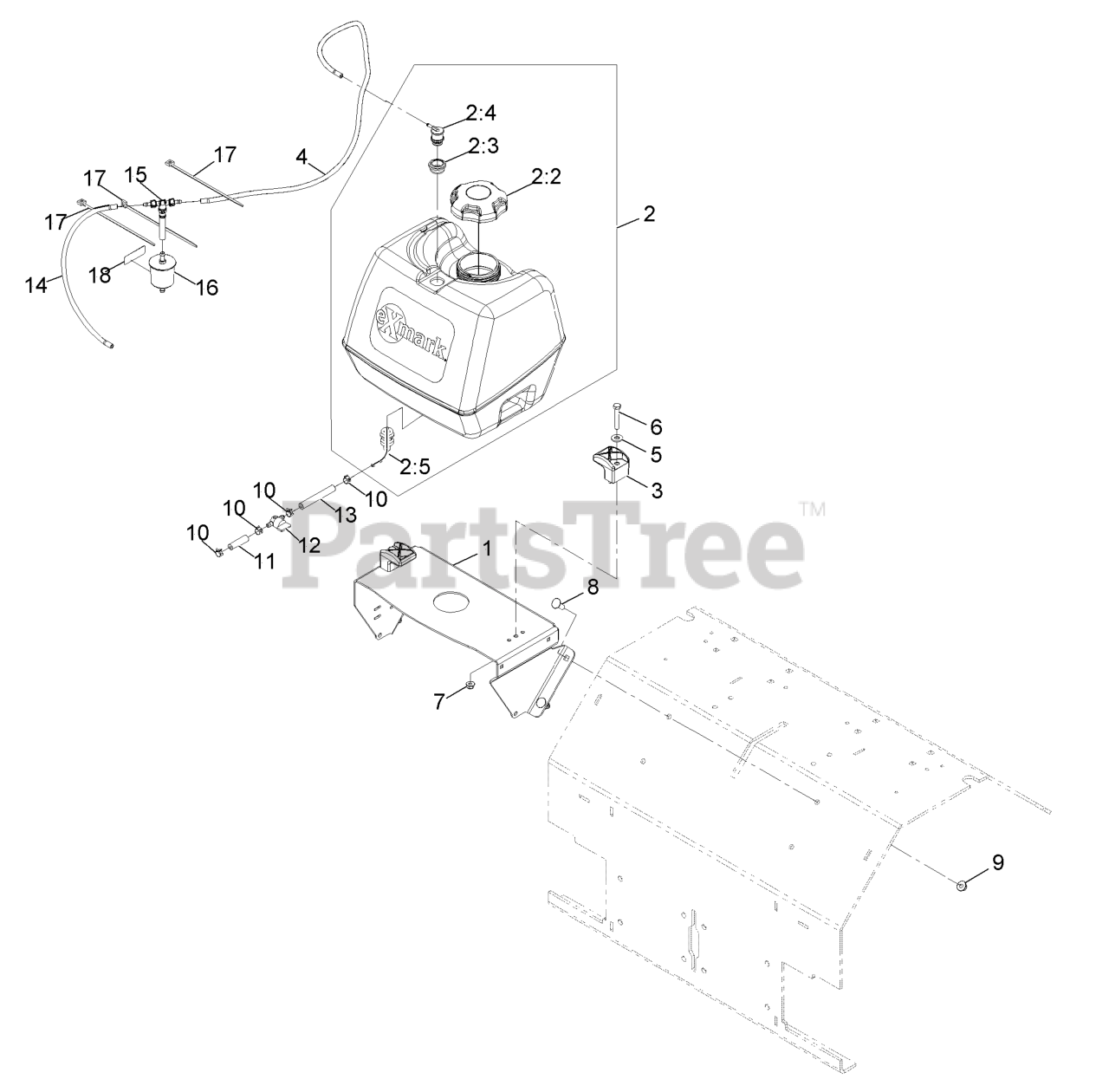

Fuel Assembly Parts Diagram

  • Title

1

Exmark 116-9541-01

SUPPORT-TANK, FUEL

$115.99

$

Usually ships in 3-6 days

0

2

Exmark 116-3656

126-1525
(Superseded to 140-4343)

$311.99

$

Usually ships in 3-6 days

0

2:2

Exmark 120-5461

137-4119
(Superseded to 137-4119)

$28.99

$

In Stock, Qty 11

0

2:3

Exmark 114-0284

GROMMET

$2.99

$

In Stock, Qty 16

0

2:4

Exmark 114-0285

119-3547
(Superseded to 119-3547)

$17.99

$

In Stock, only 4 left!

0

2:5

Exmark 103-2605

FITTING-FUEL, BULKHEAD

$38.99

$

In Stock, only 4 left!

0

3

Exmark 107-4543

CLAMP

$15.99

$

Usually ships in 3-6 days

0

4

Exmark 116-4346

HOSE-EMISSIONS

$12.99

$

Usually ships in 3-6 days

0

5

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

6

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

9

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10

Exmark 2412-98

CLAMP-HOSE

$1.99

$

In Stock, Qty 20+

0

11

Exmark 119-7856

HOSE-FUEL

$5.49

$

Usually ships in 3-6 days

0

12

Exmark 1-603770

VALVE-FUEL

$8.99

$

In Stock, Qty 7

0

13

Exmark 105-8342

HOSE-FUEL

$6.99

$

In Stock, only 4 left!

0

14

Exmark 115-7872

HOSE-FUEL

$8.49

$

Usually ships in 3-6 days

0

15

Exmark 116-5464

TEE AND CHECK

$49.99

$

In Stock, only 2 left!

0

16

Exmark 120-2235

FILTER-FUEL

$9.49

$

In Stock, Qty 10

0

17

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 7

0

18

Exmark 116-4769

DECAL-FILTER, EMISSIONS

$2.99

$

In Stock, only 3 left!

0
