SAC 55140 BV (85637) - Snapper Chipper Shredder, 5hp VK 5 Vacuum Kit for 5C Model Parts Diagram

Chipper Shredder, 5hp

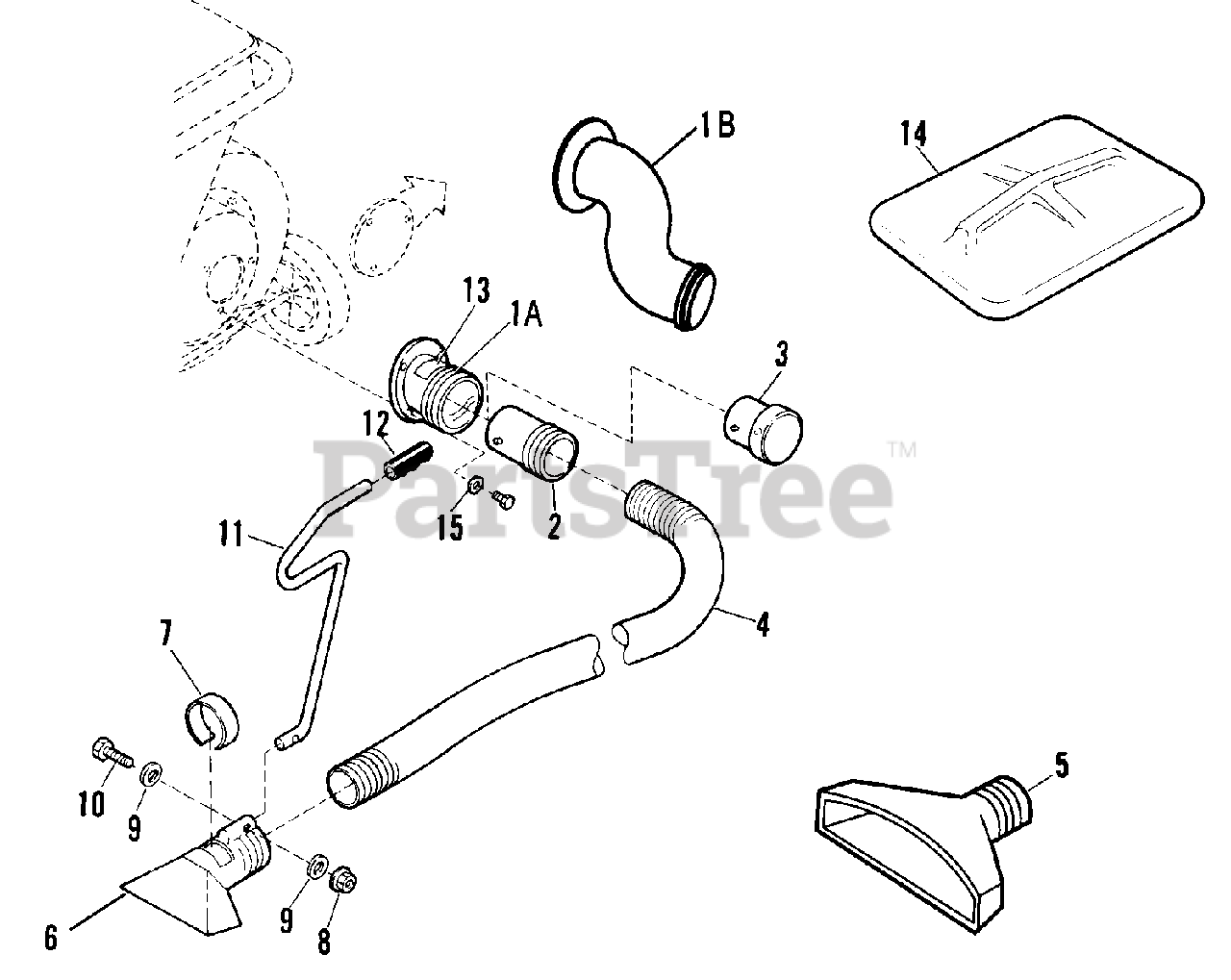

VK 5 Vacuum Kit for 5C Model Parts Diagram

  • Title

1A

Snapper 1021100

ADAPTER
(Superseded to 1021100SM)

$80.99

$

Usually ships in 2-12 days

0

1B

Snapper 1713522

ADAPTER (European model only)
(Superseded to 1713522SM)

$102.99

$

Usually ships in 2-12 days

0

2

Snapper 1023100

COUPLER
(Superseded to 1023100SM)

$54.99

$

Usually ships in 2-12 days

0

3

Snapper 1025100

Plug
(Superseded to 1025100SM)

$39.99

$

Usually ships in 2-12 days

0

4

Snapper 1035100

HOSE, 10" x 4" Dia.
(Superseded to 1035100SM)

$245.99

$

Usually ships in 2-12 days

0

5

Snapper 1027100

LEAF TRAY
(Superseded to 1027100SM)

$

$

Not available

6

Snapper 1030100

NOZZLE, w/Valve Ring
(Superseded to 1030100SM)

$125.99

$

Usually ships in 2-12 days

0

7

Snapper 1024100

VALVE RING
(Superseded to 1024100SM)

$37.99

$

Usually ships in 2-12 days

0

8

Snapper 1960294

NUT, 1/4-20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

9

Snapper 1921319

WASHER, 1/4
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 6041612

SCREW, 1/4-20 x 1 1/2
(Superseded to 1729223SM)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 1026100

HANDLE
(Superseded to 1026100BMYP)

$

$

Not available

12

Snapper 1028100

HANDLE GRIP
(Superseded to 1028100SM)

$4.99

$

Usually ships in 2-12 days

0

13

Snapper 5001612

DECAL, Danger
(Superseded to 1729207SM)

$17.99

$

Usually ships in 2-12 days

0

14

Snapper 1709467

HOPPER LID (Red)
(Superseded to 1709467SM)

$159.99

$

Usually ships in 2-12 days

0

15

Snapper 1919326

WASHER, Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0
