S7237-KW LP (53AP8DU8750) - Cub Cadet 72" Tank S Zero-Turn Mower, 999cc Kawasaki Propane Hydro Hose & Pump Assembly Parts Diagram

72" Tank S Zero-Turn Mower, 999cc Kawasaki Propane

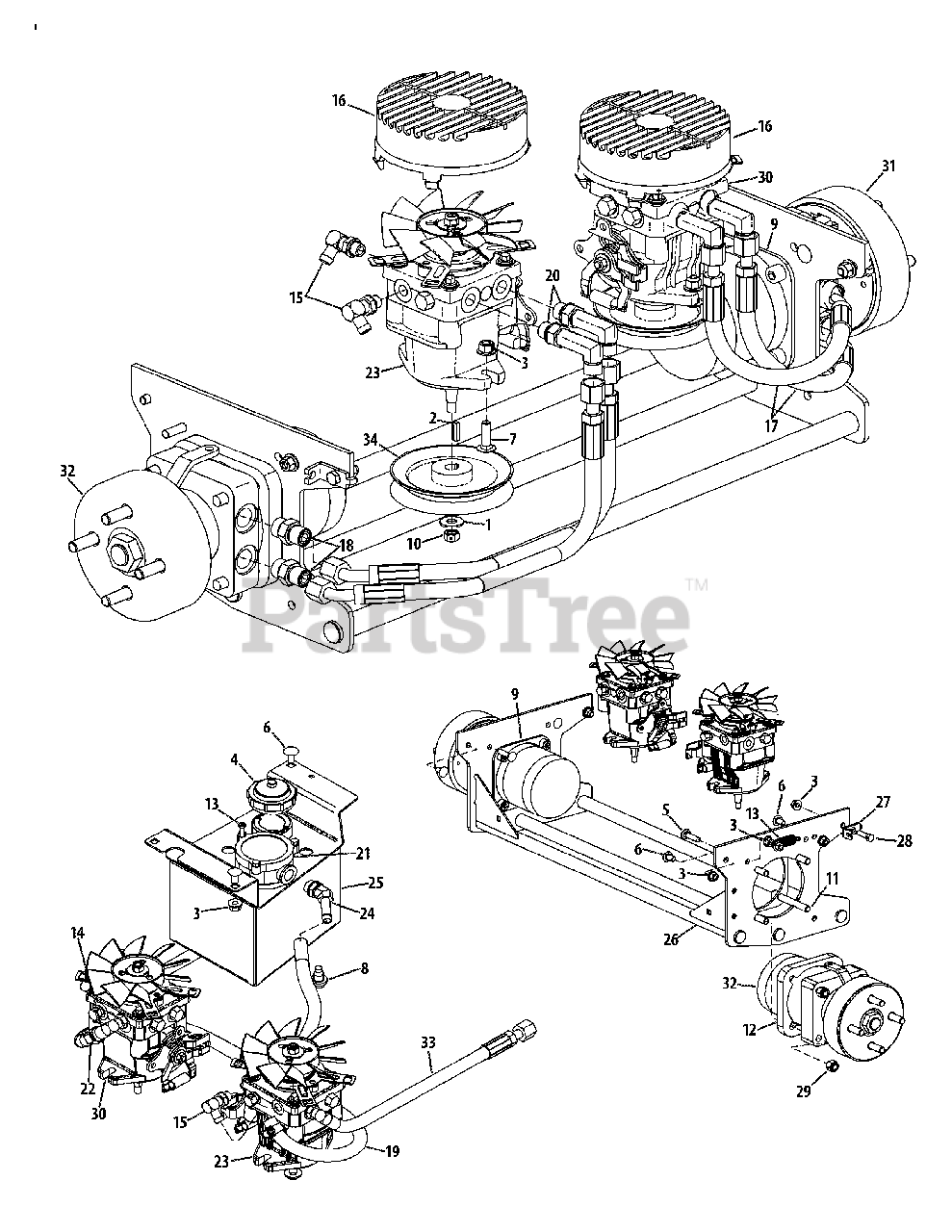

Hydro Hose & Pump Assembly Parts Diagram

  • Title

1

Cub Cadet 00006168

Washer, .438 x 1.00 x .078
(Superseded to 936-3015)

$4.49

$

In Stock, only 1 left!

0

2

Cub Cadet 00020628

Key, .188 x .188 x .875

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00022560

Flange Counter Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00030261

Hydro Oil Tank Cap

$36.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00030276

Carriage Bolt, 3/8-16 x 1.50
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-3034

Carriage Bolt, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

8

Cub Cadet 738-0940

Oil Drain Plug, w/ Seal

$8.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 01006949

Motor Back-Up Plate

$40.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 01007309

Counter Lock Nut, 3/8-24

$5.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 01007791

Socket Cap Screw, 1/2-13 x 3.50

$

$

Not available

12

Cub Cadet 01009775

Hydro Wheel Motor Spacer

$58.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 02000401

Extension Spring, .74 x 2.7 x .075

$9.99

$

In Stock, only 1 left!

0

14

Cub Cadet 02000841

Socket Cap Screw, 1/4-20 x .750

$5.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 02001160

Elbow Fitting, 9/16 x 1/2

$59.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02001169

Pump Fan Shroud

$35.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 02001179

Pump Moter Hose Assembly

$118.99

$

In Stock, only 2 left!

0

18

Cub Cadet 02001715

Hydro Adapter, 8 x 10
(Superseded to 737P05711)

$15.99

$

In Stock, only 1 left!

0

19

Cub Cadet 02001872P

Pilot Hydro Hose Assembly

$101.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 02002003

Elbow Hydro Adapter, 8 x 8

$45.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 02002257

Hydro Filter

$175.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 02002392

Hose Clamp

$10.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 02003381P

RH Hydro Pump

$1724.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 02005160

Fitting, 3/4 x 1/2

$

$

Not available

25

Cub Cadet 680-00056-0637

Hydro Tank Assembly

$

$

Not available

26

Cub Cadet 680-00059-0637

Wide Motor Frame

$

$

Not available

27

Cub Cadet 703-07750

Brake Cable Bracket

$

$

Not available

28

Cub Cadet 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 11

0

29

Cub Cadet 712-3083

Hex Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 918-04710

LH Hydro Pump

$1710.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 918-04717

LH Hydro Motor w/ Brake

$1588.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 918-04718

RH Hydro Motor w/ Brake

$

$

Not available

33

Cub Cadet 727-04284

Hose Assy. (Wheel Pump-Manifold)

$

$

Not available

34

Cub Cadet 756-04381

Pulley

$

$

Not available
