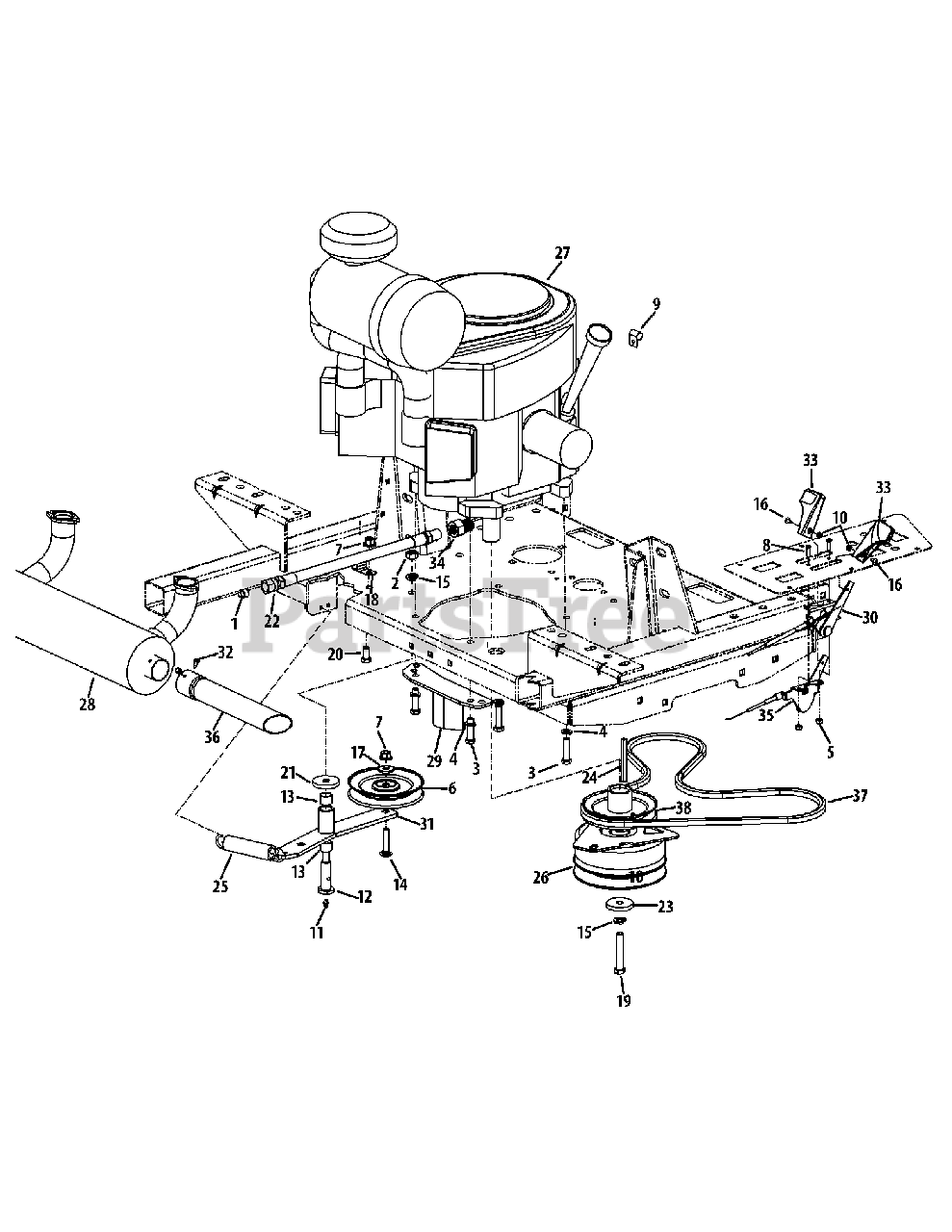

S7237-KW (53DI8DU8050) - Cub Cadet 72" Tank S Zero-Turn Mower, 37hp Kawasaki Engine Accessories, 72-Inch Deck Parts Diagram

72" Tank S Zero-Turn Mower, 37hp Kawasaki

Engine Accessories, 72-Inch Deck Parts Diagram

  • Title

1

Cub Cadet 737-04202

Pipe Plug, 3/8

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 912-3019

Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00010980

Hex Screw, 3/8-16 x 1.50

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 936-0169

Lock Washer, .375 x .680 x .100
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 00014608

Nut, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

6

Cub Cadet 00021975

Idler

$74.99

$

In Stock, only 1 left!

0

7

Cub Cadet 00022560

Flange Counter Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00030906

Machine Screw, #10-32 x .625

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 00031081

Clamp, 1/2

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 00060056

Nut, #8-32

$6.99

$

In Stock, only 1 left!

0

11

Cub Cadet 737-04345

Grease Fitting, 1/4-28

$4.99

$

In Stock, Qty 6

0

12

Cub Cadet 01000302

Shoulder Bolt, .625 x 1.95
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

13

Cub Cadet 01000308

Sleeve Bearing, .628 x .753 x .625
(Superseded to 741-04555)

$16.99

$

In Stock, only 2 left!

0

14

Cub Cadet 710-0560

Carriage Bolt, 3/8-18 x 1.75

$6.99

$

In Stock, Qty 12

0

15

Cub Cadet 936-0171

Lock Washer, .490 x .776 x .114
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

16

Cub Cadet 710-3217

Machine Screw, #8-32 x .356

$6.99

$

In Stock, Qty 7

0

17

Cub Cadet 736-3052

Washer, .406 x 1.00 x .105

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 726-3008

Clip, .470 x 1.80

$4.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 01001395

Hex Screw, 7/16-20 x 2.50

$4.99

$

In Stock, only 2 left!

0

20

Cub Cadet 710-0216

Hex Screw, 3/8-16 x .750

$4.49

$

In Stock, Qty 16

0

21

Cub Cadet 01003269

Washer, .438 x 1.75 x .250
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

22

Cub Cadet 01003283

Oil Drain Hose

$84.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 736-04131

Washer, .438 x 1.745 x .250

$15.99

$

In Stock, only 1 left!

0

24

Cub Cadet 01005856

Key, .250 x .250 x 3.00

$11.99

$

In Stock, only 1 left!

0

25

Cub Cadet 01009635

Extension Spring, .98 x 5.0 x .140

$19.99

$

In Stock, only 1 left!

0

26

Cub Cadet 02002825

Brake Clutch
(Superseded to 02002825P)

$1056.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 02003521P

Kawasaki FX1000-S09 Engine
(Superseded to KM-FXT00V-CS00S)

$5729.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 02003522

Muffler

$577.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 02003543-0637

Clutch Return Assembly

$63.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 02003743

Choke Cable

$161.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 02004075

Idler Arm Assembly

$

$

Not available

32

Cub Cadet 910-0224

Hex Washer Screw, #10-16 x 0.500

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 737-04138

Fitting, 1.0

$25.99

$

In Stock, only 3 left!

0

35

Cub Cadet 946-04571

Throttle Cable

$37.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 751-11236

Exhaust Pipe

$55.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 954-04233

Belt

$75.99

$

In Stock, only 4 left!

0

38

Cub Cadet 756-04382

Drive Pulley

$50.99

$

Usually ships in 3-6 days

0

Cub Cadet KM-BPR5ES

Spark Plug

Note: Not shown

$3.49

$

In Stock, Qty 20+

0

Cub Cadet KM-11013-7038

Outer Air Filter

Note: Not shown

$36.99

$

In Stock, Qty 20+

0

Cub Cadet KM-11013-7039

Inner Air Filter

Note: Not shown

$48.99

$

In Stock, Qty 13

0

Cub Cadet KM-49019-0707

Fuel Filter
(Superseded to KM-49019-0027)

Note: Not shown

$9.99

$

In Stock, Qty 20+

0

Cub Cadet KM-49065-7010

Oil Filter
(Superseded to KM-49065-0724)

Note: Not shown

$18.99

$

In Stock, Qty 20+

0
