S7237-KW (53CI8DU8050) - Cub Cadet 72" Tank S Zero-Turn Mower, 37hp Kawasaki Frame Assembly Parts Diagram

72" Tank S Zero-Turn Mower, 37hp Kawasaki

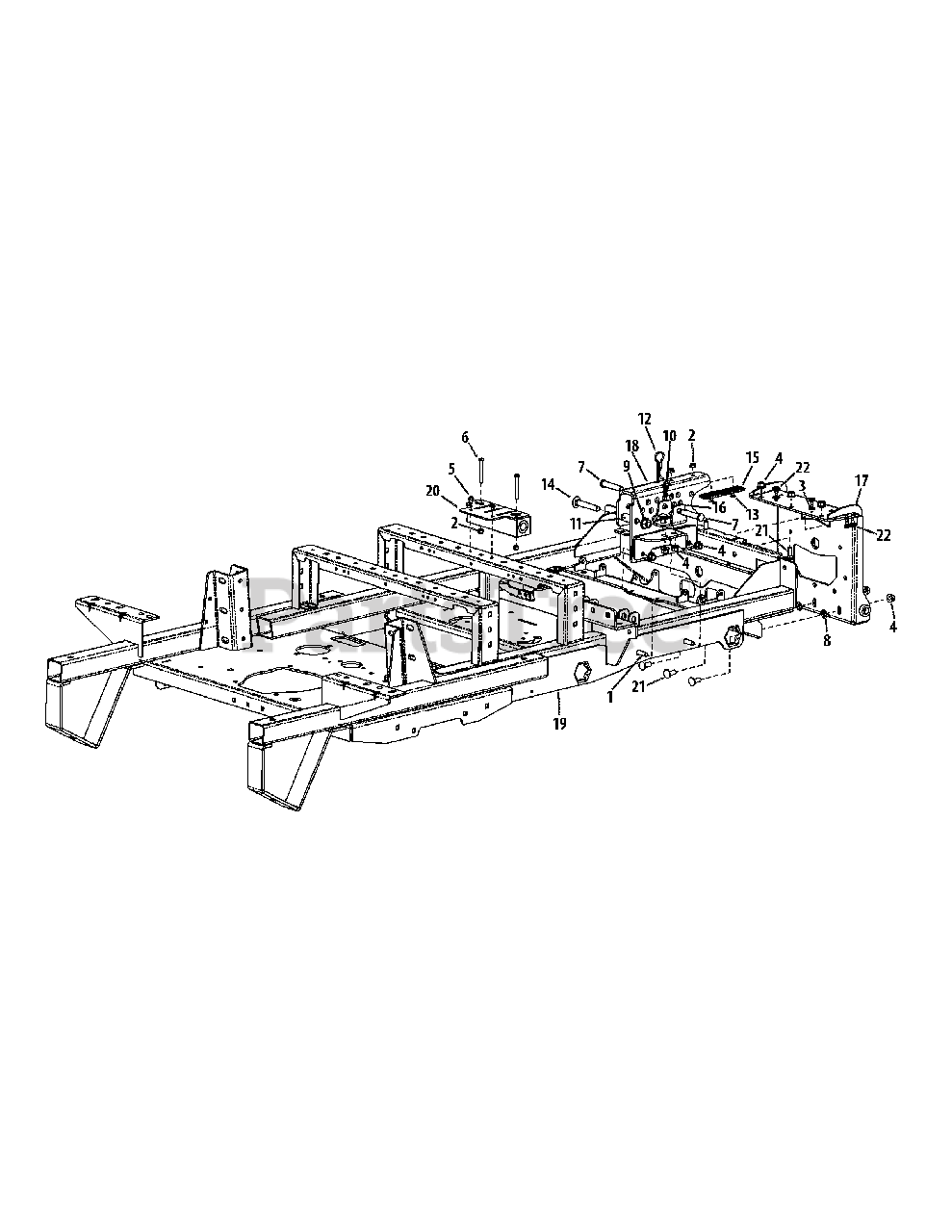

Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 00005765

Carriage Bolt, 3/8-16 x 1.25

$

$

Not available

2

Cub Cadet 00012152

Nylock Nut, 1/4-20

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 00012169

Washer. .344 x .688 x .063

$4.49

$

In Stock, only 2 left!

0

4

Cub Cadet 00022560

Flange Counterlock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0599

Hex Flange Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-0641

Hex Screw, 1/4-20 x 2.25

$4.49

$

In Stock, only 2 left!

0

7

Cub Cadet 711-0761

Clevis Pin, 1/2 x 2.500

$19.99

$

In Stock, only 4 left!

0

8

Cub Cadet 01008225

Push Nut, .335 x .780 x .015
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 01010119

Flange Top Lock Nut, 1/2-13

$7.49

$

In Stock, only 2 left!

0

10

Cub Cadet 02000673

Hair Pin, 1/2 x 1.625 x .125
(Superseded to 914-0209)

$3.99

$

In Stock, only 2 left!

0

11

Cub Cadet 02002655

Spacer, .510 x .750 x 1.25

$2.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 02003074

Hitch Pin, .120 X 3.00

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 02003505

Flat Screw, 1/4-20 X .750

$3.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 02003563

Carriage Bolt, 1/2-13 X 3.00

$

$

Not available

15

Cub Cadet 02003749

Wear Plate, 1.125 x 5.0

$33.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02005357-0637

Cylinder Mount Bracket

$

$

Not available

17

Cub Cadet 603-04668-0637

Front Axle Bracket Assembly

$186.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 680-00094-0637

Index Lift Housing Assembly

$

$

Not available

19

Cub Cadet 680-00123-0637

Frame Assembly

$

$

Not available

20

Cub Cadet 703-07098-0637

Manifold Mount Bracket

$

$

Not available

21

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 935-0199A

Rubber Bumper, .62 x .22
(Superseded to 735-0199A)

$7.99

$

In Stock, only 4 left!

0
