S7237-KW (53AI8DU8050) - Cub Cadet 72" Tank S Zero-Turn Mower, 37hp Kawasaki Deck Spindle Assembly 72-Inch Parts Diagram

72" Tank S Zero-Turn Mower, 37hp Kawasaki

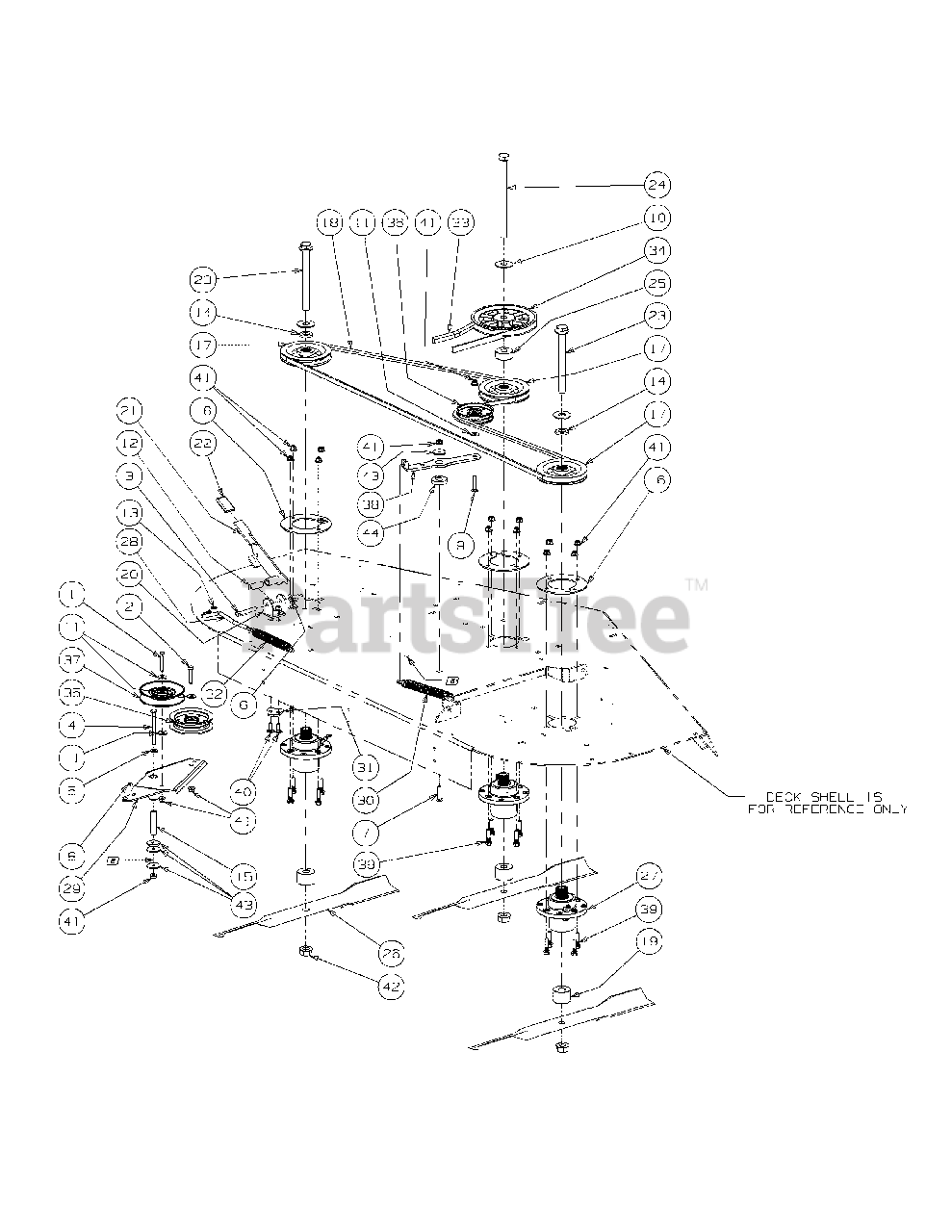

Deck Spindle Assembly 72-Inch Parts Diagram

  • Title

1

Cub Cadet 00002528

Hex Cap Screw, 3/8-16 x 2.00

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 00008495

Hex Cap Screw, 3/8-16 x 1-3/4

$6.99

$

In Stock, Qty 8

0

3

Cub Cadet 00011861

Hex Cap Screw, #/8-16 x 2-1/2
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 17

0

4

Cub Cadet 00011925

Hex Cap Screw, 3/8-16 x 4.00
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

5

Cub Cadet 00012158

Washer, 3/8

$4.49

$

In Stock, Qty 9

0

6

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 00030276

Carriage Bolt, 3/81-6 x 1-1/2
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 737-04345

Grease Fitting, 1/4-28 x 3/16

$4.99

$

In Stock, Qty 6

0

9

Cub Cadet 710-0560

Hex Carriage Screw, 3/8-16, 1.75

$6.99

$

In Stock, Qty 11

0

10

Cub Cadet 736-3014

Flat Washer, .781 ID 2.00 OD, .105

$4.49

$

In Stock, only 4 left!

0

11

Cub Cadet 736-3052

Flat Washer, .406 ID, 1.0 OD, .105

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 01002751

Spacer, .39 ID x .63 OD x 1.75

$13.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 914-0104

Cotter Pin, .072 x 1.12 Long
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 01003123

Spacer .812 ID x .268 LG
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

15

Cub Cadet 01003245

Spacer, .39 ID x .625 OD x 2.75

$18.99

$

In Stock, Qty 11

0

16

Cub Cadet 01004478-0637

Aluminum Spindle Support Plate
(Superseded to 703-08898)

$42.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01007499

V-Pulley, 5.75 OD

$168.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01007937

V-Belt, B Section x 124.0 Lg
(Superseded to 01007937P)

$102.99

$

In Stock, only 1 left!

0

19

Cub Cadet 02000454

Spacer, .760 ID x 2.00 OD x 1.28

$52.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 01008222-0637

Tension Idler U-Bracket

$24.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01008247-0637

Handle Tension Weldment

$81.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01008270

Tension Idler Handle Grip

$26.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01008542

Hex Cap Screw, 3/4-16, 7.50

$28.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 01008543

Hex Cap Screw, 3/4-16, 9.50

$42.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 750-05184

Spacer, .76 ID x 2.0 OD x .790

$37.99

$

In Stock, only 4 left!

0

26

Cub Cadet 02000568

Bahia Blade, 25.0, .756 ID
(Superseded to 742-04418-0637)

$

$

Not available

27

Cub Cadet 02000920P

Aluminum Spindle Assembly
(Superseded to 918-05132)

$354.99

$

In Stock, only 2 left!

0

28

Cub Cadet 02001574

Spring Tension Rod

$37.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 02003759

Idler Arm Assembly includes:

$181.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 01000308

Bearing Sleeve
(Superseded to 741-04555)

Note: (not shown)

$16.99

$

In Stock, Qty 18

0

30

Cub Cadet 02003712

Extension Spring, .94 x OD x 7.57
(Superseded to 732-04960)

$14.99

$

In Stock, only 3 left!

0

31

Cub Cadet 02004064

Adaptor Plate

$

$

Not available

32

Cub Cadet 02004069

Extension Spring, .94 OD x 7.72 Lg

$29.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 02004377

V-Belt, B Section x 107.0
(Superseded to 02004377P)

$155.99

$

In Stock, only 3 left!

0

34

Cub Cadet 02004379

V-Pulley, 7.450 OD x .750 Bore, Cast

$200.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 02004447

Idler Pulley, 4.06 OD

$57.99

$

In Stock, Qty 20+

0

36

Cub Cadet 02005077

Idler Pulley, 4.06 Dia.

$35.99

$

In Stock, Qty 20+

0

37

Cub Cadet 756-04522

Idler Pulley, 5.06 Dia.

$39.99

$

In Stock, only 4 left!

0

38

Cub Cadet 703-07010

Idler Arm

$19.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 710-04829

Bolt, 3/8-16 x 1.5

$6.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 712-04065

Nut, 3/8-16, Nylon Flange Lock

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 712-3078

Flange Hex Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

43

Cub Cadet 936-0227

Washer, .390 x 1.500 x .134
(Superseded to 736-0227)

$

$

Not available
