S7232-D (53BY8DU8750) - Cub Cadet 72" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel Yanmar 3TNV382A-BDCB Starting Motor Parts Diagram

72" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel

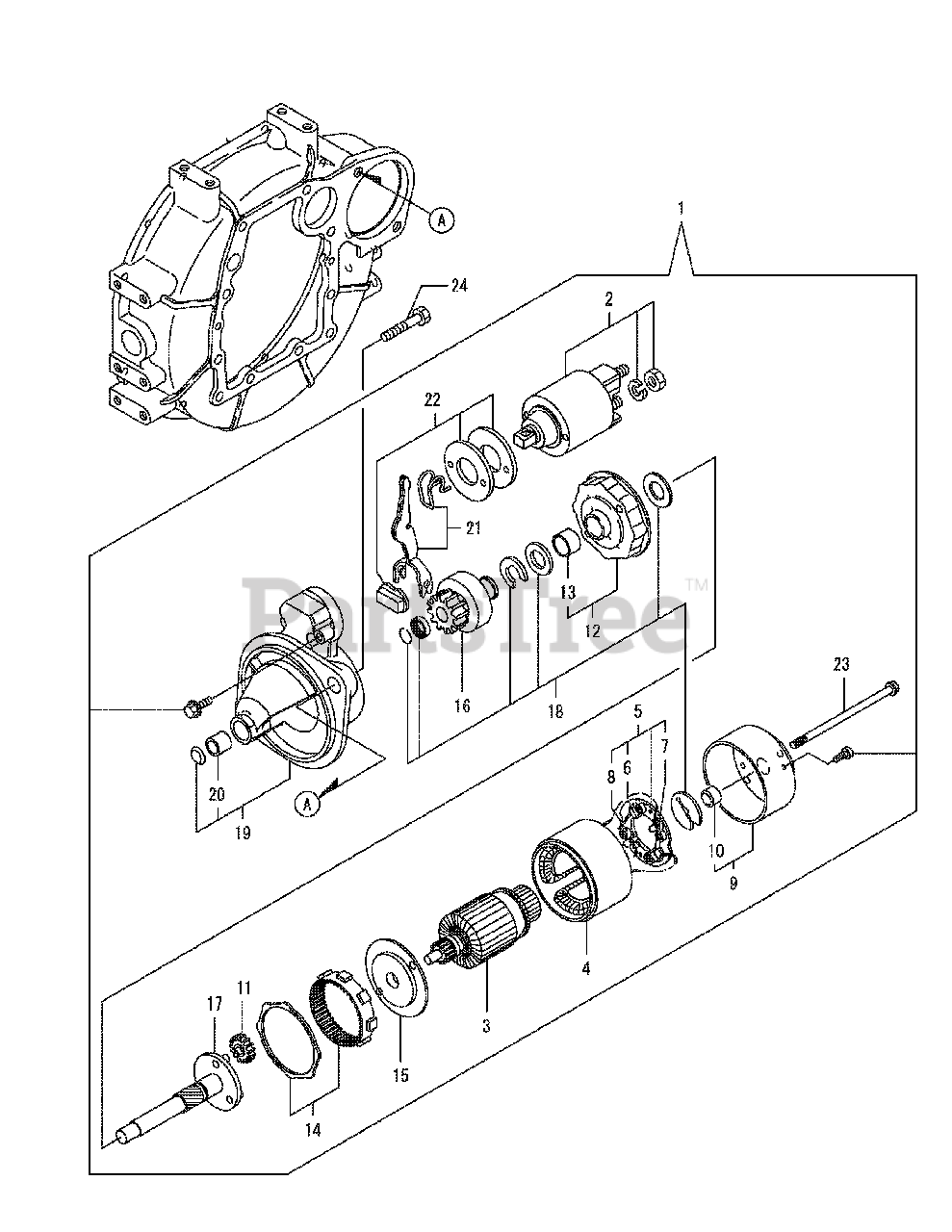

Yanmar 3TNV382A-BDCB Starting Motor Parts Diagram

  • Title

1

Cub Cadet YA-129242-77010

Starter

$1083.99

$

In Stock, only 1 left!

0

2

Cub Cadet YA-129698-77020

Magnetic Switch Assembly

$

$

Not available

3

Cub Cadet YA-129242-77100

Armature Assembly

$

$

Not available

4

Cub Cadet YA-129242-77110

Yoke Assembly

$

$

Not available

5

Cub Cadet YA-129242-77120

Brush Holder Assembly

$

$

Not available

6

Cub Cadet YA-129242-77130

Brush (-)

$

$

Not available

7

Cub Cadet YA-129242-77140

Brush (+) Set

$

$

Not available

8

Cub Cadet YA-129242-77150

Brush Spring

$

$

Not available

9

Cub Cadet YA-129242-77160

Rear Cover Assembly

$

$

Not available

10

Cub Cadet YA-129242-77170

Rear Cover Metal
(Superseded to YA-119698-77170)

$

$

Not available

11

Cub Cadet YA-118400-77170

Planet Gear

$

$

Not available

12

Cub Cadet YA-129242-77180

Center Bracket (P)

$

$

Not available

13

Cub Cadet YA-129698-77190

Bracket

$

$

Not available

14

Cub Cadet YA-129698-77200

Internal Gear

$

$

Not available

15

Cub Cadet YA-129242-77210

Center Bracket (A)

$

$

Not available

16

Cub Cadet YA-129698-77220

Pinion Assembly

$

$

Not available

17

Cub Cadet YA-129698-77230

Shaft (Pinion)

$

$

Not available

18

Cub Cadet YA-129698-77250

Washer Set

$

$

Not available

19

Cub Cadet YA-129242-77260

Gear Case Assembly

$

$

Not available

20

Cub Cadet YA-X2114535200

Starter Metal

$

$

Not available

21

Cub Cadet YA-129242-77270

Shift Lever Set

$

$

Not available

22

Cub Cadet YA-129242-77280

Dust Cover Kit

$

$

Not available

23

Cub Cadet YA-124195-77770

Through Bolt
(Superseded to YA-119260-77260)

$

$

Not available

24

Cub Cadet YA-26116-120202

Bolt, M12 x 20

$

$

Not available
