S7232-D (53BY8DU8750) - Cub Cadet 72" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel Spindle Assembly 72-Inch Parts Diagram

72" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel

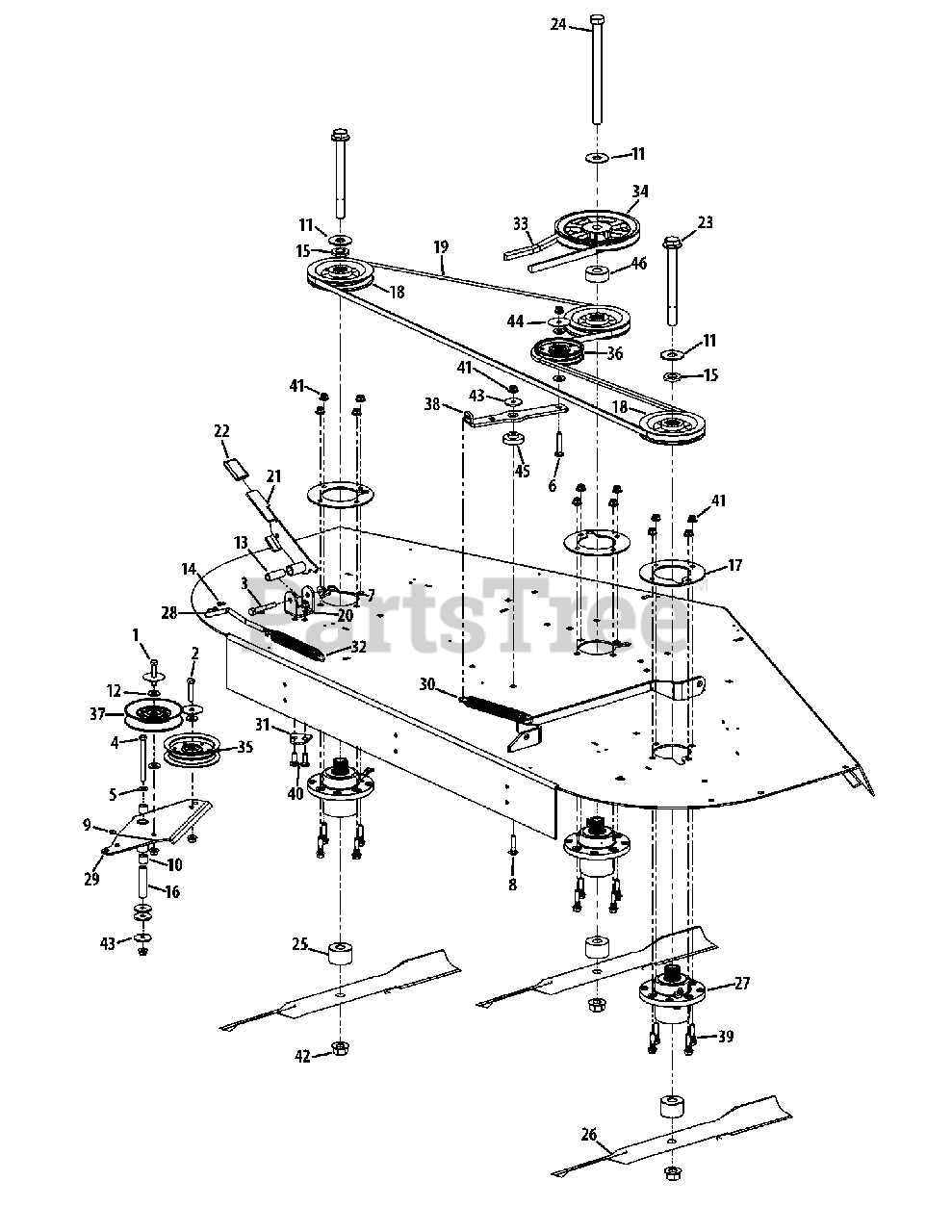

Spindle Assembly 72-Inch Parts Diagram

  • Title

1

Cub Cadet 00002528

Hex Screw, 3/8-16 x 2.00

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 00008495

Hex Screw, 3/8-16 x 1.75

$6.99

$

In Stock, Qty 8

0

3

Cub Cadet 00011861

Hex Screw, 3/8-16 x 2.50
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 17

0

4

Cub Cadet 00011925

Hex Screw, 3/8-16 x 4.00
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

5

Cub Cadet 00012158

Washer, .406 x .813 x .063

$4.49

$

In Stock, Qty 9

0

6

Cub Cadet 00014270

Carriage Bolt, 3/8-16 x 2.00
(Superseded to 710-04157)

$8.99

$

In Stock, only 1 left!

0

7

Cub Cadet 00022560

Flange Counter Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 00030276

Carriage Bolt. 3/8-16 x 1.50
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 737-04345

Grease Fitting, 1/4-28

$4.99

$

In Stock, Qty 6

0

10

Cub Cadet 01000308

Sleeve Bearing, .628 x.753 x.625
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

11

Cub Cadet 736-3014

Washer, .781 x 2.00 x .105

$4.49

$

In Stock, only 4 left!

0

12

Cub Cadet 736-3052

Washer, .406 x 1.00 x .105

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 01002751

Spacer, .390 x .630 x 1.75

$13.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 914-0104

Internal Cotter Pin, .072 x 1.12
(Superseded to 714-0104)

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 01003123

Spacer, .812 x 1.47 x .218
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

16

Cub Cadet 01003245

Spacer, .390 x .635 x 2.75

$18.99

$

In Stock, Qty 11

0

17

Cub Cadet 01004478-0637

Spindle Support Plate
(Superseded to 703-08898)

$42.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01007499

Pulley

$168.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 01007937

V-Belt
(Superseded to 01007937P)

$102.99

$

In Stock, only 1 left!

0

20

Cub Cadet 01008222-0637

Idler Tension Bracket

$24.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 01008247-0637

Tension Handle Weldment

$81.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 01008270

Idler Tension Handle Grip

$26.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01008542

Hex Screw, 3/4-16 x 7.50

$28.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 01008543

Hex Screw, 3/4-16 x 9.50

$42.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 02000454

Spacer, .760 x 2.00 x 1.28

$52.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 02000568

Blade, 25"
(Superseded to 742-04418-0637)

$

$

Not available

26

Cub Cadet 02000568

Bahia Blade (Low Lift)
(Superseded to 742-04418-0637)

$

$

Not available

27

Cub Cadet 02000920P

Spindle Assembly
(Superseded to 918-05132)

$354.99

$

In Stock, only 2 left!

0

28

Cub Cadet 732-04712

Idler Control Rod

$

$

Not available

29

Cub Cadet 02003759

Idler Double Weldment

$181.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 02003712

Extension Spring, .94 x 7.57 x .14
(Superseded to 732-04960)

$14.99

$

In Stock, only 3 left!

0

31

Cub Cadet 02004063

Idler Spring Bracket Adapter Plate
(Superseded to 02004064)

$

$

Not available

32

Cub Cadet 02004069

Extension Spring, .94 x 7.74 x .14

$29.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 954-04255A

V-Belt

$97.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 01008081

Pulley

$

$

Not available

35

Cub Cadet 02004447

Idler Pulley

$57.99

$

In Stock, Qty 20+

0

36

Cub Cadet 02005077

Idler Pulley

$35.99

$

In Stock, Qty 20+

0

37

Cub Cadet 02005079

Idler Pulley
(Superseded to 756-04522)

$39.99

$

In Stock, only 4 left!

0

38

Cub Cadet 703-07010

Deck Idler Arm

$19.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 710-04829

Flange Bolt, 3/8-16 x 1.5

$6.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

41

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

42

Cub Cadet 712-3078

Flange Lock Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

43

Cub Cadet 936-0227

Flat Washer, .390 x 1.500 x .134
(Superseded to 736-0227)

$

$

Not available

44

Cub Cadet 736-3040

Flat Washer, .406 x 1.92 x .060

$6.49

$

In Stock, Qty 6

0

45

Cub Cadet 738-04376

Shoulder Spacer, .854 x .280

$9.99

$

In Stock, only 3 left!

0

46

Cub Cadet 01004415

Spacer, .760 x 2.00 x .925

$40.99

$

Usually ships in 3-6 days

0
