S7232-D (53BY8DU8750) - Cub Cadet 72" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel Radiator & Air Cleaner Parts Diagram

72" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel

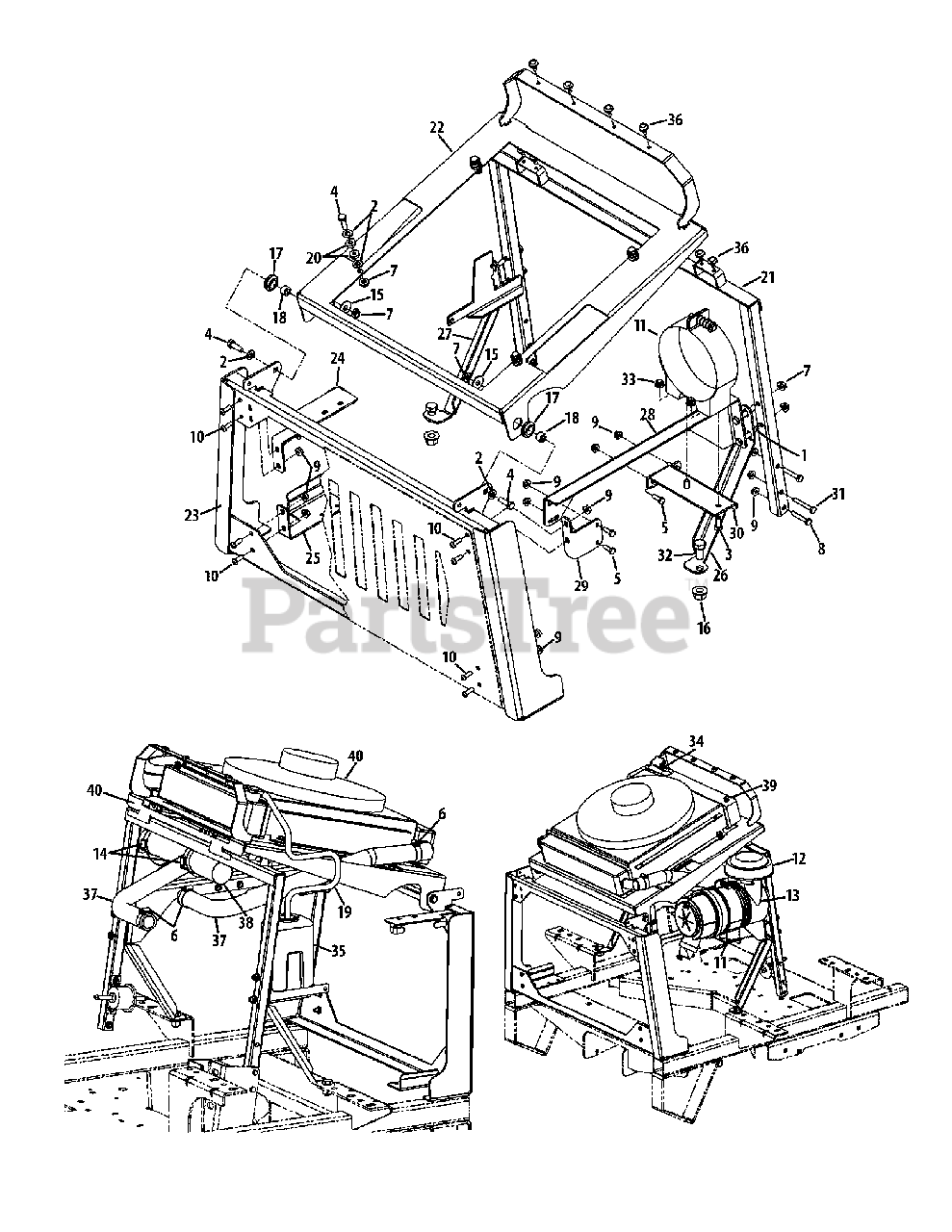

Radiator & Air Cleaner Parts Diagram

  • Title

1

Cub Cadet 00006129

Hex Screw, 5/16-18 x 1.75

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 00009812

Washer, .344 x .688 x .063

$

$

Not available

3

Cub Cadet 00012179

Hex Screw, 5/16-18 x .750

$3.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 00012180

Hex Screw, 5/16-18 x 1.00

$

$

Not available

5

Cub Cadet 00013131

Hex Screw, 1/4-20 x .750

$6.49

$

In Stock, only 1 left!

0

6

Cub Cadet 01000217

Hose Clamp

$15.99

$

In Stock, only 1 left!

0

7

Cub Cadet 712-3004A

Flange Counter Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-0606

Hex Screw, 1/4-20 x 1.50

$5.49

$

In Stock, Qty 10

0

9

Cub Cadet 912-3027

Flange Top Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-04064

Cap Screw, 1/4-20 x .750

$8.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 01009874

Air Cleaner Mounting Band

$

$

Not available

12

Cub Cadet 01009878

Air Cleaner Inlet Hood

$

$

Not available

13

Cub Cadet 01009880

Air Cleaner Assembly

$191.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 751-3207

Air Filter

$28.99

$

In Stock, only 1 left!

0

13

Cub Cadet 751-3206

Canister, Air Cleaner

$

$

Not available

13

Cub Cadet 751-3208

Cap, Air Cleaner

$

$

Not available

13

Cub Cadet 751-3197

Valve, Dust Ejector

$37.99

$

In Stock, only 4 left!

0

14

Cub Cadet 01009895

Hose Clamp

$

$

Not available

15

Cub Cadet 01009937

Washer, .313 x 1.06 x .062

$

$

Not available

16

Cub Cadet 01010119

Flange Top Lock Nut, 1/2-13

$7.49

$

In Stock, only 2 left!

0

17

Cub Cadet 02001127

Grommet, .62 x 1.13 x 1/8

$14.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 02001142

Spacer, .357 x .625 x .375

$

$

Not available

19

Cub Cadet 02002567

Radiator Hose, 1/4 x 27

$

$

Not available

20

Cub Cadet 02002577

Washer, .280 x .690 x .180

$

$

Not available

21

Cub Cadet 680-00080-0637

Front Radiator Mount

$

$

Not available

22

Cub Cadet 680-00098-0637

Radiator Mount Plate

$

$

Not available

23

Cub Cadet 680-00127-0637

Hood Frame

$

$

Not available

24

Cub Cadet 703-07386-0637

Hydro Cooler Upper Mount Bracket

$

$

Not available

25

Cub Cadet 703-07387-0637

Hydro Cooler Lower Mount Bracket

$

$

Not available

26

Cub Cadet 703-07601-0637

RH Radiator Support Bracket

$

$

Not available

27

Cub Cadet 703-07602-0637

LH Radiator Support Bracket

$

$

Not available

28

Cub Cadet 703-07715-0637

Air Cleaner Support Bracket

$

$

Not available

29

Cub Cadet 703-07716-0637

Air Cleaner Support Bracket

$

$

Not available

30

Cub Cadet 703-07718-0637

Air Cleaner Mount Bracket

$

$

Not available

31

Cub Cadet 710-0136

Hex Screw, 1/4-20 x 1.75

$3.99

$

In Stock, Qty 20+

0

32

Cub Cadet 710-3131

Hex Screw, 1/2-13 x 1.00

$5.49

$

In Stock, only 1 left!

0

33

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 726-0205

Hose Clamp, .490

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 731-04731

Coolant Over-Flow Container

$143.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 935-0199A

Rubber Bumper, .62 x .22
(Superseded to 735-0199A)

$7.99

$

In Stock, only 2 left!

0

37

Cub Cadet 735-04190

Hose, Radiator RH, 29.50"

$

$

Not available

37

Cub Cadet 735-04191

Hose, Radiator LH, 26.50"

$

$

Not available

37

Cub Cadet 735-04214

Hose, 1-1/8" ID, 25 feet Length

$

$

Not available

38

Cub Cadet 735-04192

Hose Air Cleaner, 2" ID, 10" Length

$36.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 735-04219

Flexible Reinforced Hose " ID
(Superseded to 735-04192)

$36.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 737-04156

Pipe Plug, 1/8-27

$

$

Not available

40

Cub Cadet 951-11364

Radiator, Complete

$

$

Not available

40

Cub Cadet 02003811

Fan assembly

$

$

Not available

40

Cub Cadet 02002923

Debris Screen

$

$

Not available

40

Cub Cadet 759-04129

Radiator Cap

$50.99

$

Usually ships in 3-6 days

0
