S7232-D (53BY8DU8750) - Cub Cadet 72" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel Hydro Hose & Pump Assembly Parts Diagram

72" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel

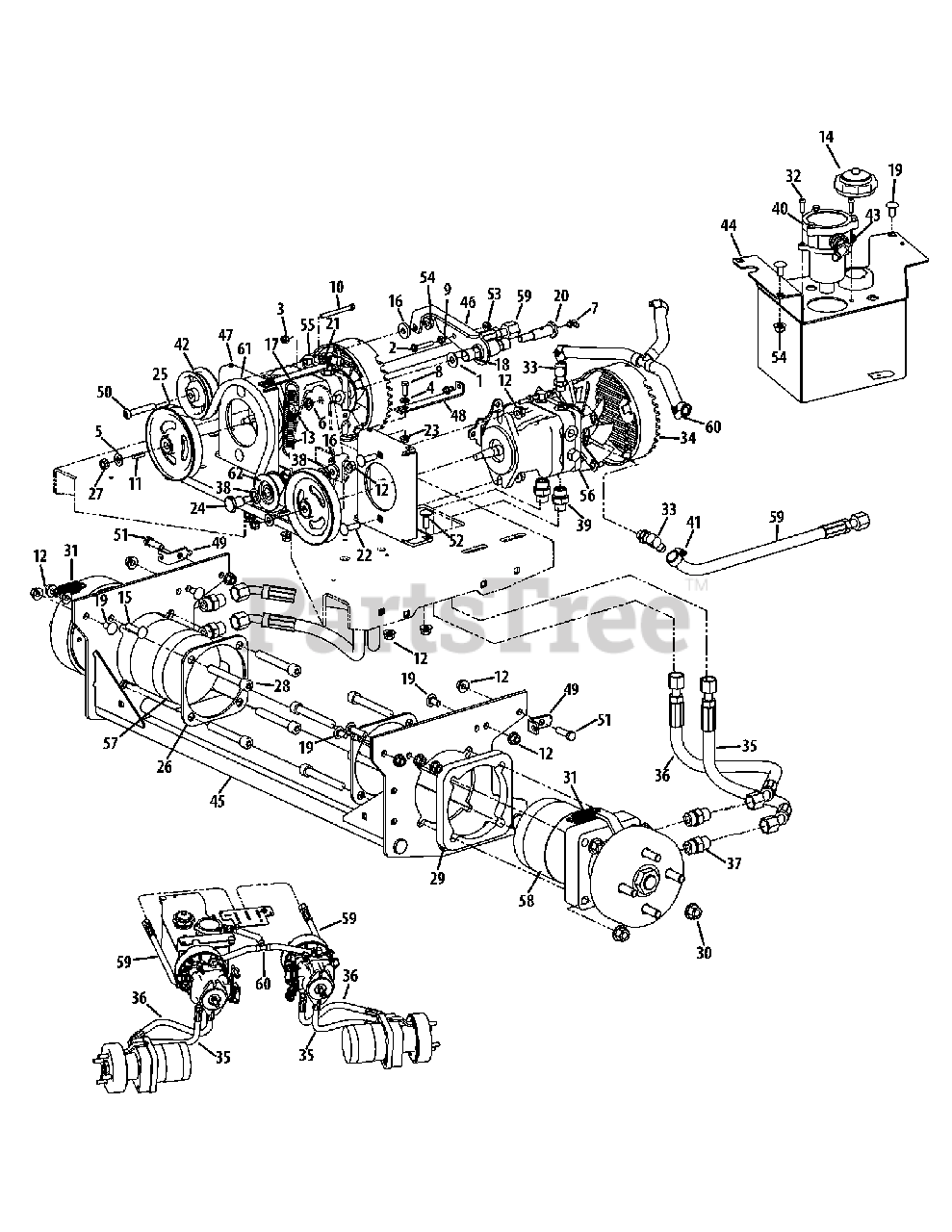

Hydro Hose & Pump Assembly Parts Diagram

  • Title

1

Cub Cadet 00006168

Washer, .438 x 1.00 x .078
(Superseded to 936-3015)

$4.49

$

In Stock, Qty 19

0

2

Cub Cadet 00011446

Hex Screw, 1/4-20 x 1.50

$

$

Not available

3

Cub Cadet 00012152

Nut, 1/4-20

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00012154

Washer, .281 x .625 x .063
(Superseded to 936-3020)

$

$

Not available

5

Cub Cadet 00012158

Washer, .406 x .813 x .063

$4.49

$

In Stock, Qty 9

0

6

Cub Cadet 00012195

Lock Washer, .438 x .762 x .113

$

$

Not available

7

Cub Cadet 737-3004

Grease Fitting, 1/4-28 x .788

$11.99

$

In Stock, Qty 6

0

8

Cub Cadet 00013131

Hex Screw, 1/4-20 x .750

$6.49

$

In Stock, only 1 left!

0

9

Cub Cadet 00013291

Nut, 1/4-20

$2.99

$

In Stock, only 3 left!

0

10

Cub Cadet 00019962

Screw, 1/4-20 x .500

$

$

Not available

11

Cub Cadet 00020628

Key, .188 x .188 x .875

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 00022560

Flange Counter Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 712-0290

Nut, 7/16-14

$4.99

$

In Stock, Qty 11

0

14

Cub Cadet 00030261

Hydro Oil Tank Cap

$36.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 00030276

Carriage Bolt, 3/8-16 x 1.50
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 00083192

Washer, .390 x 1.00 x .180
(Superseded to 736-0258)

$4.49

$

In Stock, only 4 left!

0

17

Cub Cadet 01000199

Extension Spring, 1.00 x 5.00 x .125

$17.99

$

In Stock, only 4 left!

0

18

Cub Cadet 01000308

Sleeve Bearing, .628 x.753 x.625
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

19

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

20

Cub Cadet 738-3108

Shoulder Bolt, 7/16-14 x .60 x 1.6
(Superseded to 738-05004)

$22.99

$

In Stock, Qty 6

0

21

Cub Cadet 710-0599

Hex Flange Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 710-3034

Carriage Bolt, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

23

Cub Cadet 912-3027

Flange Top Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 01003536

Shoulder Bolt, 3/8-16 x .625 x .830
(Superseded to 738-05007)

$8.99

$

In Stock, only 4 left!

0

25

Cub Cadet 01006799

Hydro Pump Pulley

$181.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 01006949

Hydro Motor Back-Up Plate

$40.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 01007309

Counter Lock Nut, 3/8-24

$5.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 01007791

Socket Cap Screw, 1/2-13 x 3.50

$

$

Not available

29

Cub Cadet 01009775

Hydro Wheel Motor Spacer

$58.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 01010119

Flange Top Lock Nut, 1/2-13

$7.49

$

In Stock, only 2 left!

0

31

Cub Cadet 02000401

Extension Spring, .74 x 2.7 x .075

$9.99

$

In Stock, only 1 left!

0

32

Cub Cadet 02000841

Socket Cap Screw, 1/4-20 x .750

$5.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 02001160

Elbow Fitting, 9/16 x 1/2

$59.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 02001169

Pump Fan Shroud

$35.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 02001178

Pump Motor Hose Assembly, 16.38

$115.99

$

In Stock, Qty 6

0

36

Cub Cadet 02001179

Pump Motor Hose Assembly, 18.75

$118.99

$

In Stock, only 2 left!

0

37

Cub Cadet 02001715

Hydro Adapter, 8 x 10
(Superseded to 737P05711)

$15.99

$

In Stock, only 1 left!

0

38

Cub Cadet 02001891

Washer, .625 x 1.00 x .048

$6.99

$

In Stock, only 1 left!

0

39

Cub Cadet 02001975

Hydro Adapter, 8 x 8

$

$

Not available

40

Cub Cadet 02002257

Hydro Filter

$175.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 02002392

Hose Clamp

$10.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 02004558

Pulley

$22.99

$

In Stock, only 1 left!

0

43

Cub Cadet 02005160

45° Fitting, 3/4 x 1/2

$

$

Not available

44

Cub Cadet 680-00056-0637

Hydro Tank Assembly

$

$

Not available

45

Cub Cadet 680-00059-0637

Wide Motor Frame

$

$

Not available

46

Cub Cadet 680-00077-0637

Pump Idler

$

$

Not available

47

Cub Cadet 680-00088-0637

Pump Assembly Mount Bracket

$

$

Not available

48

Cub Cadet 703-07669-0637

Pump Mount Brace

$

$

Not available

49

Cub Cadet 703-07750

Brake Cable Bracket

$

$

Not available

50

Cub Cadet 710-05066

Screw, 3/8-16 x 2.25

$

$

Not available

51

Cub Cadet 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

52

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

54

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

55

Cub Cadet 918-04710

LY Hydro Pump

$1710.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 718-04711P

RH Hydro Pump

$1471.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 918-04717

LH Hydro Motor w/ Brake

$1588.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 918-04718

RH Hydor Motor w/ Brake

$

$

Not available

59

Cub Cadet 727-04284

Wheel Pump to Manifold Hose Assy.

$

$

Not available

60

Cub Cadet 727-04342

Return Tee Hydro Hose

$

$

Not available

61

Cub Cadet 954-04267

Belt

$43.99

$

In Stock, only 1 left!

0

62

Cub Cadet 756-04431

Idler Pulley

$132.99

$

Usually ships in 3-6 days

0
