S7232-D (53BY8DU8750) - Cub Cadet 72" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel Hydro Controls Parts Diagram

72" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel

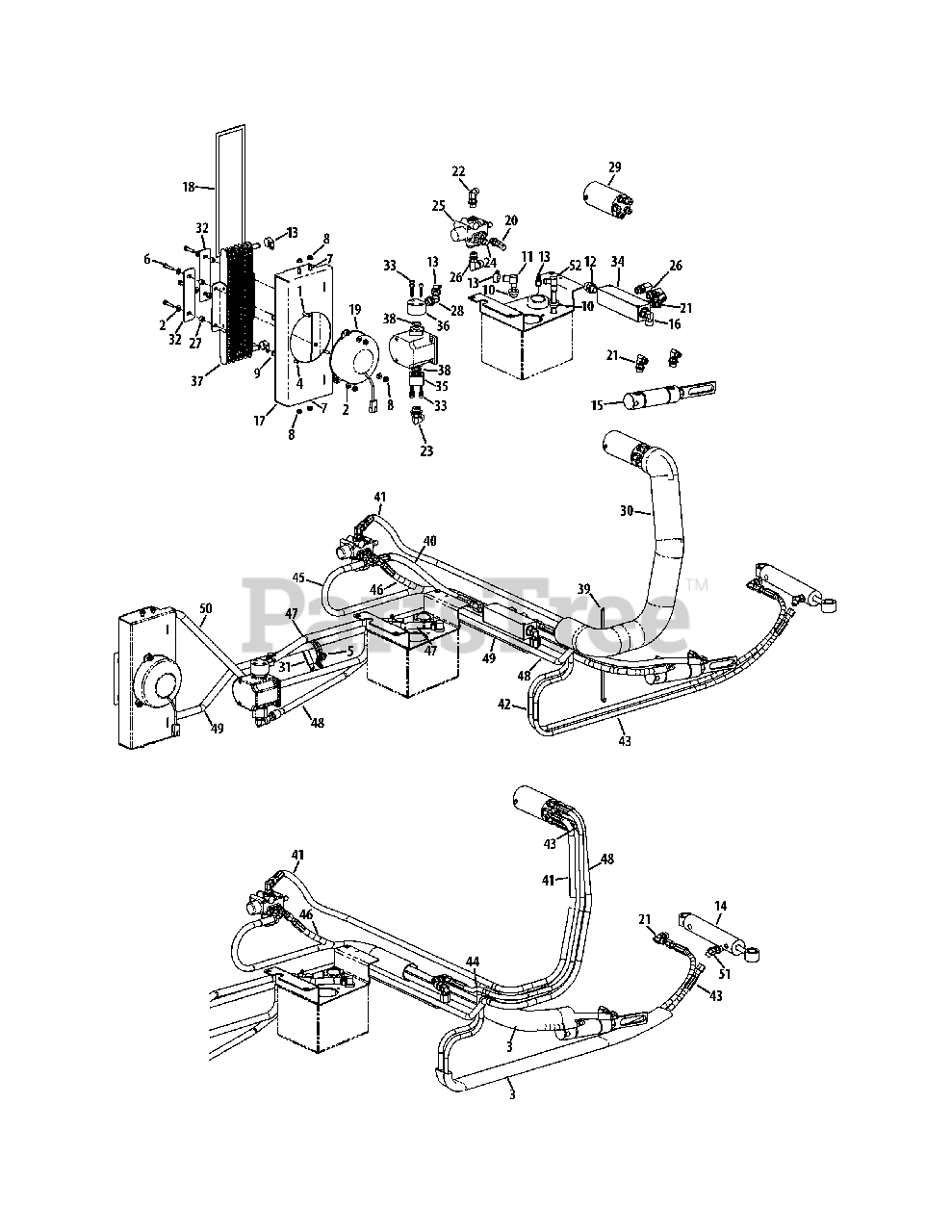

Hydro Controls Parts Diagram

  • Title

1

Cub Cadet 00011447

Hex Screw, 1/4-20 x 1.00

$

$

Not available

2

Cub Cadet 00012154

Washer, .281 x .625 x .063
(Superseded to 936-3020)

$

$

Not available

3

Cub Cadet 00012529

Sleeve

$

$

Not available

4

Cub Cadet 710-0751

Hex Screw, 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0599

Hex Flange Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 01000913

Hex Screw, 1/4-20 x 1.25

$2.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 01001160

Carriage Bolt, 1/4-20 x .620

Note: NLA

$

$

Not available

8

Cub Cadet 912-3027

Flange Top Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 01008539P

Nut, 1/4-20
(Superseded to 726-3054)

$4.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 02000296

Grommet, .54 x .78

$20.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 02001151

Elbow Fitting, 5/8 x 1/2

$

$

Not available

12

Cub Cadet 02001975

Hydro Adapter

$

$

Not available

13

Cub Cadet 02002392

Hose Clamp

$10.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 02003368P

Steering Cylinder

$496.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 02003930

Hydro Cylinder, 1.50 x 2.75

$

$

Not available

16

Cub Cadet 02004258

Hydro Adapter

$

$

Not available

17

Cub Cadet 02004473-0637

Radiator Housing Assembly

$271.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 02004480

Heat Exchanger Screen

$

$

Not available

19

Cub Cadet 02004481

Fan

$355.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 02004642

Elbow Fitting, 40RB-40RS

$

$

Not available

21

Cub Cadet 02004643

Elbow Fitting, 40RS-60RB

$

$

Not available

22

Cub Cadet 02004644

Elbow Fitting, 60RB-60RS

$

$

Not available

23

Cub Cadet 02004645

Elbow Fitting, 60RS-80RB

$

$

Not available

24

Cub Cadet 02004687

Elbow Fitting, 40RB-40RS

$

$

Not available

25

Cub Cadet 02004696

Dual Action Lift Hydro Valve

$415.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 02004837

Elbow Fitting, 80RS-60RB

$

$

Not available

27

Cub Cadet 02005057

Spacer, .256 x .500 x .330

$

$

Not available

28

Cub Cadet 02005160

45° Fitting, 3/4 x 1/2

$

$

Not available

29

Cub Cadet 02005325

Hydro Steering Valve

$

$

Not available

30

Cub Cadet 02005462

Anti-Abrasion Sleeve

$

$

Not available

31

Cub Cadet 02005672

Loop Clamp, 2.00 x 3.50

$

$

Not available

32

Cub Cadet 703-07680-0637

Hydro Cooler Screen Retainer Brkt.

$

$

Not available

33

Cub Cadet 710-04991

Socket Head Screw, 6-1.0

$

$

Not available

34

Cub Cadet 718-04563

Hydro Manifold, 08 x 06

$

$

Not available

35

Cub Cadet 718-04667

Pump Adapter Fitting Mount

$

$

Not available

36

Cub Cadet 718-04704

Suction Hydro Fitting, 3/4-16

$

$

Not available

37

Cub Cadet 918-3132

Oil Radiator

$

$

Not available

38

Cub Cadet 721-04188

O-Ring, .734 x .139

$8.49

$

In Stock, Qty 9

0

39

Cub Cadet 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

40

Cub Cadet 727-04281

Lift Valve to Manifold Hose Assy.

$

$

Not available

41

Cub Cadet 727-04304

Lift Valve to Steering Valve Assy.

$

$

Not available

42

Cub Cadet 727-04305

Steering Ext. to Steering Valve Hose Assy.

$

$

Not available

43

Cub Cadet 727-04306

Steering Ret. to Steering Valve Hose Assy.

$

$

Not available

44

Cub Cadet 727-04307

Manifold to Steering Valve Hose Assy.

$

$

Not available

45

Cub Cadet 727-04309

Cylinder Ret. to Lift Valve Hose Assy.

$

$

Not available

46

Cub Cadet 727-04310

Cylinder Ext. to Lift Valve Hose Assy.

$

$

Not available

47

Cub Cadet 727-04312

Tank to Pump Hose Assembly

$

$

Not available

48

Cub Cadet 727-04313

Pump to Steering Valve Hose Assy.

$

$

Not available

49

Cub Cadet 727-04314

Manifold to Exchanger Hose Assy.

$

$

Not available

50

Cub Cadet 727-04315

Exchanger to Tank Hose Assy.

$

$

Not available

51

Cub Cadet 727-04317

45degree Elbow Fitting

$

$

Not available

52

Cub Cadet 737-04260

Elbow, 1/2 x 5/8 Barb w/ Straw

$

$

Not available

Cub Cadet 00008382

Adhesive Backed Foam, 1/4 x 4

Note: Not shown

$

$

Not available
