S7232-D (53AY8DU8050) - Cub Cadet 72" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel Deck Lift Assembly Parts Diagram

72" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel

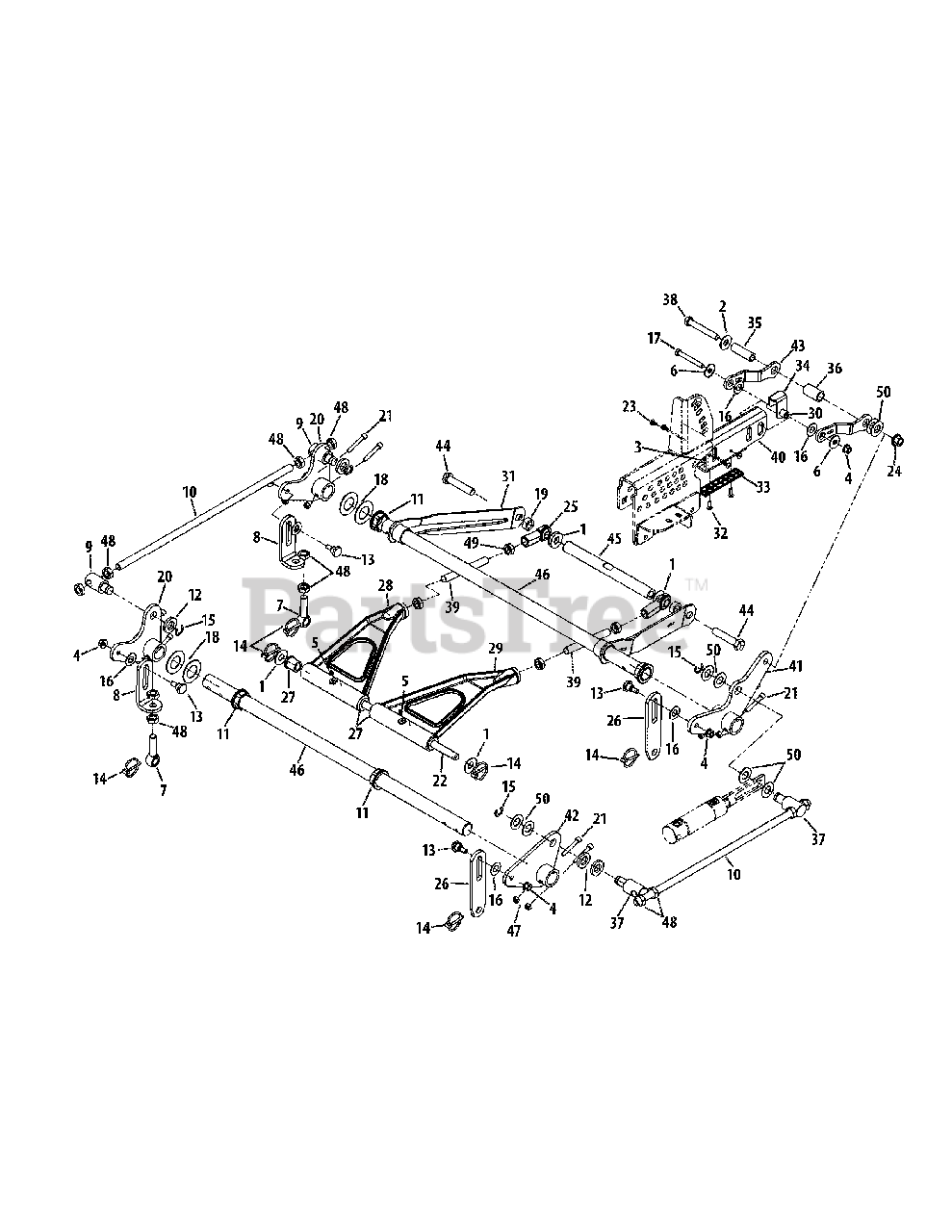

Deck Lift Assembly Parts Diagram

  • Title

1

Cub Cadet 00002766

Washer, .655 x 1.5 x .055

$3.49

$

In Stock, only 4 left!

0

2

Cub Cadet 00011459

Washer, .563 x 1.38 x .109

$5.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 00012152

Nut, 1/4-20

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00022560

Flg. Cnter. Lock Nut, 3/8-16 (60" Deck)
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 912-0431

Flange Lock Nut, 3/8-16 (72" Deck)

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 737-04345

Grease Fitting, 1/4-28

$4.99

$

In Stock, Qty 6

0

6

Cub Cadet 936-0133

Washer, .411 x 1.25 x 1.00
(Superseded to 736-0133)

$

$

Not available

7

Cub Cadet 01001744

Eye Bolt, 5/8-16 x 2.63
(Superseded to 710-05355)

$17.99

$

In Stock, only 2 left!

0

8

Cub Cadet 01001746-0637

Eye Bolt Link, 5/8

$34.99

$

In Stock, only 1 left!

0

9

Cub Cadet 01001855

Lift Ferrule

$62.99

$

In Stock, only 1 left!

0

10

Cub Cadet 01001857

Lift Connecting Rod

$46.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 01001930

Hex Flange Bearing

$19.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 01003123

Spacer, .812 x 1.47 x .218
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

13

Cub Cadet 01003535

Shoulder Bolt, 3/8-16 x .625 x .437

$28.99

$

In Stock, only 2 left!

0

14

Cub Cadet 01003993

Lynch Pin, 3/16 x 1.25
(Superseded to 753-04070)

$9.99

$

In Stock, Qty 20+

0

15

Cub Cadet 01003994

Retainer Clip

$6.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 01004003

Washer
(Superseded to 736-04602)

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 01004127

Hex Screw, 3/8-16 x 3.00
(Superseded to 710-0521)

$5.49

$

In Stock, Qty 11

0

18

Cub Cadet 01006408

Washer, 1.25 x 2.25 x .075

$12.99

$

In Stock, only 1 left!

0

19

Cub Cadet 01007527

Spacer, .630 x 1.06 x .440

$12.99

$

In Stock, only 2 left!

0

20

Cub Cadet 01007680-0637

Assembly Bellcrank

$

$

Not available

21

Cub Cadet 01007962

Screw, 5/16-18 x 2.0

$3.99

$

In Stock, only 2 left!

0

22

Cub Cadet 01008453

Deck Lift Link Rod (60" Deck)

$38.99

$

In Stock, only 1 left!

0

22

Cub Cadet 01007544

Deck Lift Link Rod (72" Deck)

$40.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 01008801

Rivet, 1/4 x .625

$

$

Not available

24

Cub Cadet 01010119

Flange Top Lock Nut, 1/2-13

$7.49

$

In Stock, only 2 left!

0

25

Cub Cadet 02000293

RH Rod End, 5/8

$58.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 02000561-0637

Deck Lift Link

$

$

Not available

27

Cub Cadet 02002384

Flange Bearing

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 02002708P

LH Lift Brace Bearing

$203.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 02002709P

RH Lift Brace Bearing

$

$

Not available

30

Cub Cadet 02003043

Spacer, .375 x .625 x 2.20

$5.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 02003257-0637

Front Frame Support Assembly

$

$

Not available

32

Cub Cadet 02003505

Flat Head Screw, 1/4-20 x .750

$3.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 02003749

Wear Plate, 1.125 x 5.0

$33.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 02003942-0637

Lock Bracket

$

$

Not available

35

Cub Cadet 02003944

Spacer, .510 x .750 x 2.38

$

$

Not available

36

Cub Cadet 02003945

Spacer, .765 x 1.00 x 1.70

$

$

Not available

37

Cub Cadet 02004280

Lift Ferrule, 1.938

$

$

Not available

38

Cub Cadet 02004518

Hex Screw, 1/2-13 x 3.5

$

$

Not available

39

Cub Cadet 02004692

Rod, 5/8-18 x 5.5 (60" Deck)

$

$

Not available

39

Cub Cadet 02004691

Rod, 5/8-18 x 3.5 (72" Deck)

$5.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 02005103-0637

Tube, 3.0 x 1.5

$

$

Not available

41

Cub Cadet 02005350-0637

Hydro Assist Bellcrank

$

$

Not available

42

Cub Cadet 02005352-0637

Lift Bellcrank Assembly

$

$

Not available

43

Cub Cadet 02005354-0637

Loft Offset Yoke Bracket

$

$

Not available

44

Cub Cadet 710-04813

Hex Screw, 5/8-11 x 3.00

$7.99

$

In Stock, only 3 left!

0

45

Cub Cadet 711-05072

Front Lift Link Mount Shaft

$61.99

$

Usually ships in 3-6 days

0

46

Cub Cadet 711-05216

Deck Lift Shaft

$

$

Not available

47

Cub Cadet 912-0429

Hex Lock Nut, 5/16 -18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 912-3015

Jam Nut, 5/8-11
(Superseded to 712-3015)

$4.99

$

In Stock, Qty 20+

0

49

Cub Cadet 712-3056

Jam Nut, 5/8-18

$4.99

$

In Stock, Qty 13

0

50

Cub Cadet 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0
