S6032-D (53BY8DU6750) - Cub Cadet 60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel Control Group Parts Diagram

60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel

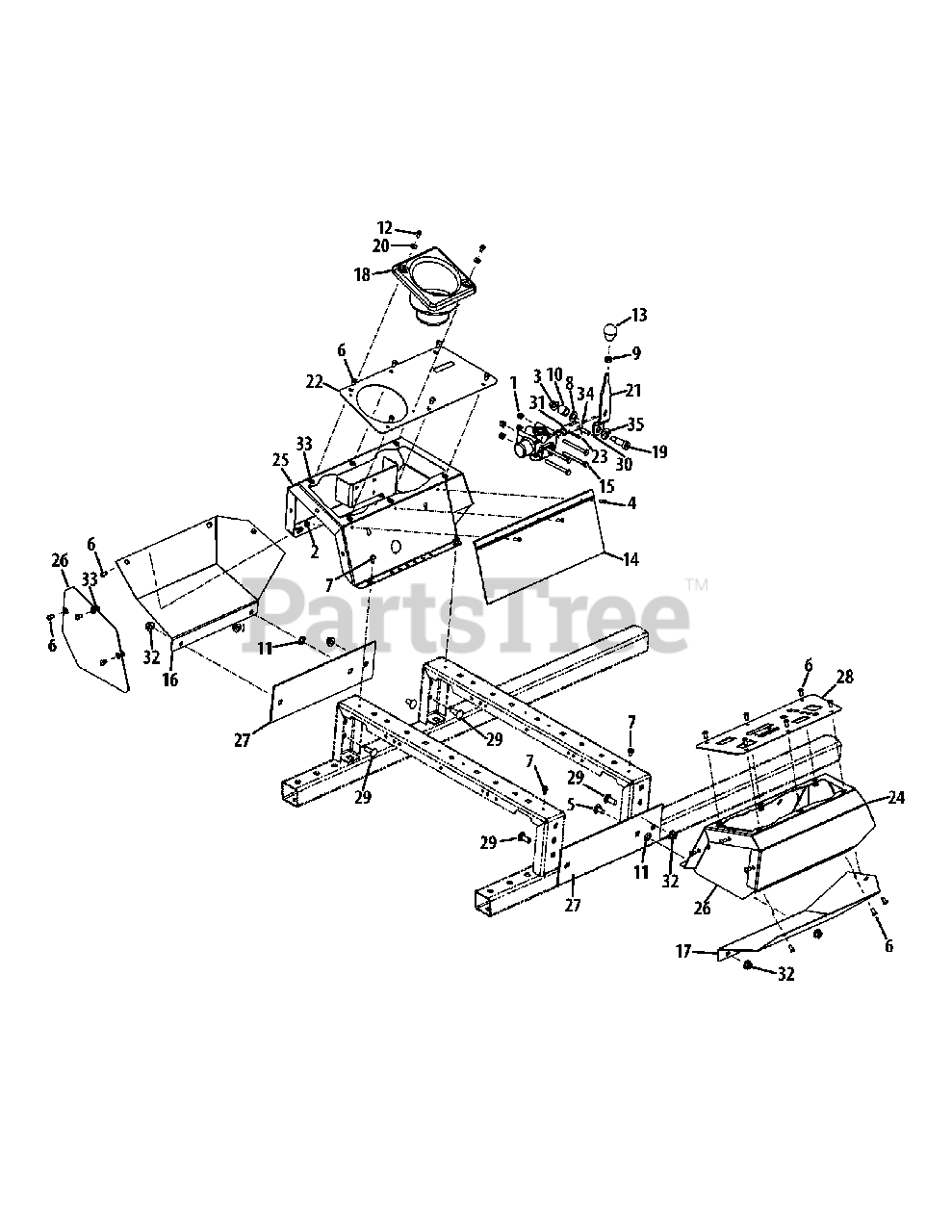

Control Group Parts Diagram

  • Title

1

Cub Cadet 00012152

Nut, 1/4-20

$4.49

$

In Stock, only 1 left!

0

2

Cub Cadet 00014608

Nut, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

3

Cub Cadet 00022560

Flange Counter Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00030906

Machine Screw, #10-32 x .625

$6.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 710-3256

Screw, 1/4-20 x .500

$10.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0599

Hex Flange Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 936-0160

Washer, .536 x .930 x .050

$4.49

$

In Stock, Qty 9

0

9

Cub Cadet 01002511

Jam Nut, 3/8-16

$5.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 01004546

Spacer, .500 x .750 x .700

$

$

Not available

11

Cub Cadet 01008225

Push Nut, .335 x .780 x .015
(Superseded to 712-0229)

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 01008531P

Flange Screw, #10-32 x .500

$5.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01009369

Lever Knob, 3/8-16

$14.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 02000362

Debris/Storage Bag

$

$

Not available

15

Cub Cadet 02000925

Hex Screw, 1/4-20 x 2.75

$

$

Not available

16

Cub Cadet 02002785-4021

LH Lower Panel

$

$

Not available

17

Cub Cadet 02002786-4021

RH Lower Panel

$

$

Not available

18

Cub Cadet 02002874

Cup Holder

$39.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 02003603

Shoulder Bolt, 3/8-16 x .50 x 1.0
(Superseded to 738-04533)

$6.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 02003725

Washer, .300 x .550 x .047

$

$

Not available

21

Cub Cadet 02004138-0637

Lift Valve Lever Bracket

$

$

Not available

22

Cub Cadet 02004142-4021

LH Cover Control Plate

$

$

Not available

23

Cub Cadet 02004622

Spirol Pin, 3/16 x 1.0

$

$

Not available

24

Cub Cadet 680-00119-4021

RH Control Panel Assembly

$

$

Not available

25

Cub Cadet 680-00121-4021

LH Bracket Control Panel Assembly

$

$

Not available

26

Cub Cadet 703-07328-4021

Panel Plate

$

$

Not available

27

Cub Cadet 703-07330-0637

Lower Side Panel

$

$

Not available

28

Cub Cadet 703-07603-4021

RH Cover Control Plate

$42.99

$

In Stock, only 1 left!

0

29

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 711-04214

Pin, .25 x .9375

$6.49

$

Usually ships in 3-6 days

0

31

Cub Cadet 711-1614

Valve Link

$

$

Not available

32

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 712-04199

Nut, 1/4-20

$

$

Not available

34

Cub Cadet 714-0127

Cotter Pin, 1/16 x .75

$

$

Not available

35

Cub Cadet 936-0253

Bell Washer, .525 x 1.00 x .050
(Superseded to 736-0253)

$

$

Not available
