S6032-D (53BY8DU6750) - Cub Cadet 60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel Brake Pedal Assembly Parts Diagram

60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel

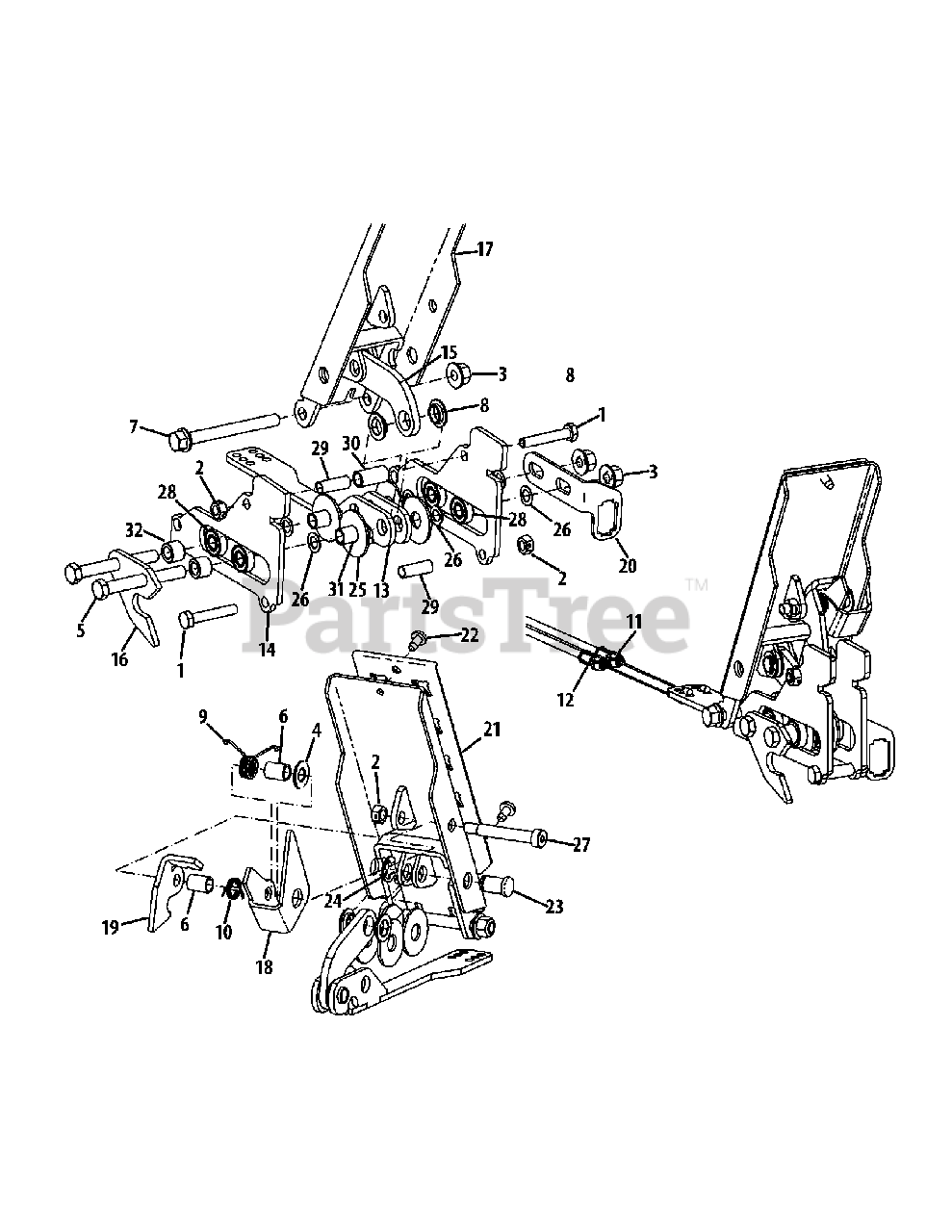

Brake Pedal Assembly Parts Diagram

  • Title

1

Cub Cadet 00006129

Hex Screw, 5/16-18 x 1.75

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 00022547

Counter Lock Nut, 5/16-18

$

$

Not available

3

Cub Cadet 00022560

Flange Counter Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00061053

Washer, .416 x .875 x .046

$3.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 01004127

Hex Screw, 3/8-16 x 3.00
(Superseded to 710-0521)

$5.49

$

In Stock, Qty 11

0

6

Cub Cadet 02003436

Spacer, .380 x .500 x .667

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 02003666

Hex Screw, 3/8-16 x 3.50

$

$

Not available

8

Cub Cadet 02005568

Flange Bearing, .502 x .875 x .180

$

$

Not available

9

Cub Cadet 02005591

Torsion Spring

$

$

Not available

10

Cub Cadet 02005592

Torsion Spring

$

$

Not available

11

Cub Cadet 02005606P

LH Brake Cable

$80.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 02005607P

RH Brake Cable

$87.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 02005612-0637

Brake Carrier Assembly

$

$

Not available

14

Cub Cadet 02005703

Brake Roller Guide Bracket

$

$

Not available

15

Cub Cadet 02005714

Brake Control Link

$

$

Not available

16

Cub Cadet 02005718

Lockout Plate

$

$

Not available

17

Cub Cadet 603-04639

Brake Pedal Assembly

Variations

Cub Cadet 603-04639-0637

PEDAL ASM - BRAKE - POWDER BLACK (0637)

$

$

Not available

$

$

18

Cub Cadet 703-06762

Park Engagement Bracket

$

$

Not available

19

Cub Cadet 703-06766

Brake Hook Bracket

$

$

Not available

20

Cub Cadet 703-06975

Brake Switch Mount Bracket

Variations

Cub Cadet 703-06975-0637

BRACKET - BRAKE SW - POWDER BLACK (0637)

$

$

Not available

$

$

21

Cub Cadet 703-07762

Brake Pedal Grip

Variations

Cub Cadet 703-07762-4021

GRIP - BRAKE PEDAL - CUB YELLOW 2 (4021)

$

$

Not available

$

$

22

Cub Cadet 710-05070

Screw, 1/4-20 x .5
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

23

Cub Cadet 711-05058

Pin, .500 x .804

$

$

Not available

24

Cub Cadet 916-0104

E-Ring

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 736-04407

Flat Washer, .531 x 1.5 x .08

$

$

Not available

26

Cub Cadet 736-04418

Washer, .39 x .62 x .03

$

$

Not available

27

Cub Cadet 738-04360

Shoulder Screw, 5/16-18 x .375 x 2.00

$

$

Not available

28

Cub Cadet 741-04371

Bearing, .375 x .875

$4.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 750-05071

Spacer, .319 x .375 x 1.056

$

$

Not available

30

Cub Cadet 750-05072

Spacer, .384 x .500 x 1.000

$

$

Not available

31

Cub Cadet 750-05178

Spacer, .38 x .5 x .955

$

$

Not available

32

Cub Cadet 750-05180

Spacer, .385 x .625 x .458

$

$

Not available
