S6032-D (53AY8DU6050) - Cub Cadet 60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel Yanmar 3TNV82A-BDCB Crankshaft & Piston Parts Diagram

60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel

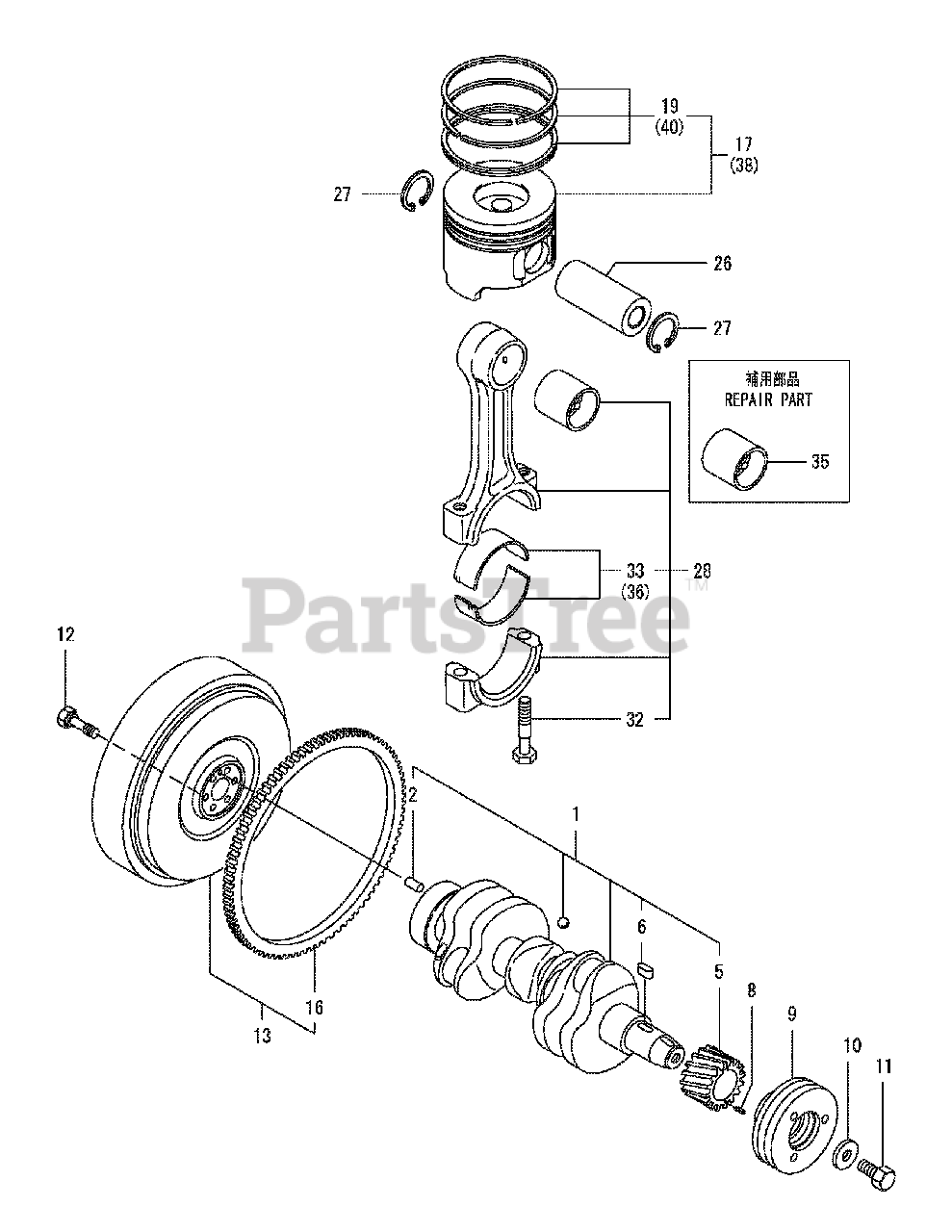

Yanmar 3TNV82A-BDCB Crankshaft & Piston Parts Diagram

  • Title

1

Cub Cadet YA-119803-21000

Crankshaft Assembly

$

$

Not available

2

Cub Cadet YA-129100-01580

Parallel Pin, M8 x 16

$1.99

$

Usually ships in 3-6 days

0

5

Cub Cadet YA-119803-21200

Crankshaft Gear

$

$

Not available

6

Cub Cadet YA-22512-070140

Key, 7 x 14

$2.99

$

Usually ships in 3-6 days

0

8

Cub Cadet YA-22351-030010

Spring Pin, 3 x 10

$

$

Not available

9

Cub Cadet YA-119802-21650

Crankshaft V-Pulley

$

$

Not available

10

Cub Cadet YA-129795-21661

Washer

$

$

Not available

11

Cub Cadet YA-121850-21680

V-Pulley Bolt

$13.99

$

In Stock, only 1 left!

0

12

Cub Cadet YA-121111-21501

Flywheel Bolt

$

$

Not available

13

Cub Cadet YA-171420-21580

Flywheel Assembly

$

$

Not available

16

Cub Cadet YA-119865-21600

Ring Gear

$

$

Not available

17

Cub Cadet YA-119803-22080

Piston w/ Ring

$182.99

$

In Stock, only 1 left!

0

19

Cub Cadet YA-119802-22500

Piston Ring Set

$

$

Not available

26

Cub Cadet YA-119813-22300

Piston Pin

$40.99

$

In Stock, only 1 left!

0

27

Cub Cadet YA-129792-22400

Circlip, 23

$2.49

$

In Stock, only 2 left!

0

28

Cub Cadet YA-719810-23100

Connecting Rod Assembly

$

$

Not available

32

Cub Cadet YA-119810-23200

Connecting Rod Bolt

$

$

Not available

33

Cub Cadet YA-119810-23601

Crank Pin Metal Assembly

$

$

Not available

35

Cub Cadet YA-119810-23910

Piston Pin Bushing

$

$

Not available

36

Cub Cadet YA-119810-23611

Pin Bearing, 0.25

$

$

Not available

38

Cub Cadet YA-719803-22900

Piston w/ Ring, .25OS

$

$

Not available

40

Cub Cadet YA-119802-22950

Piston Ring Set, .25

$

$

Not available
