S6032-D (53AY8DU6050) - Cub Cadet 60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel Steering Column Parts Diagram

60" Tank S Zero-Turn Mower, 31.2hp Yanmar Diesel

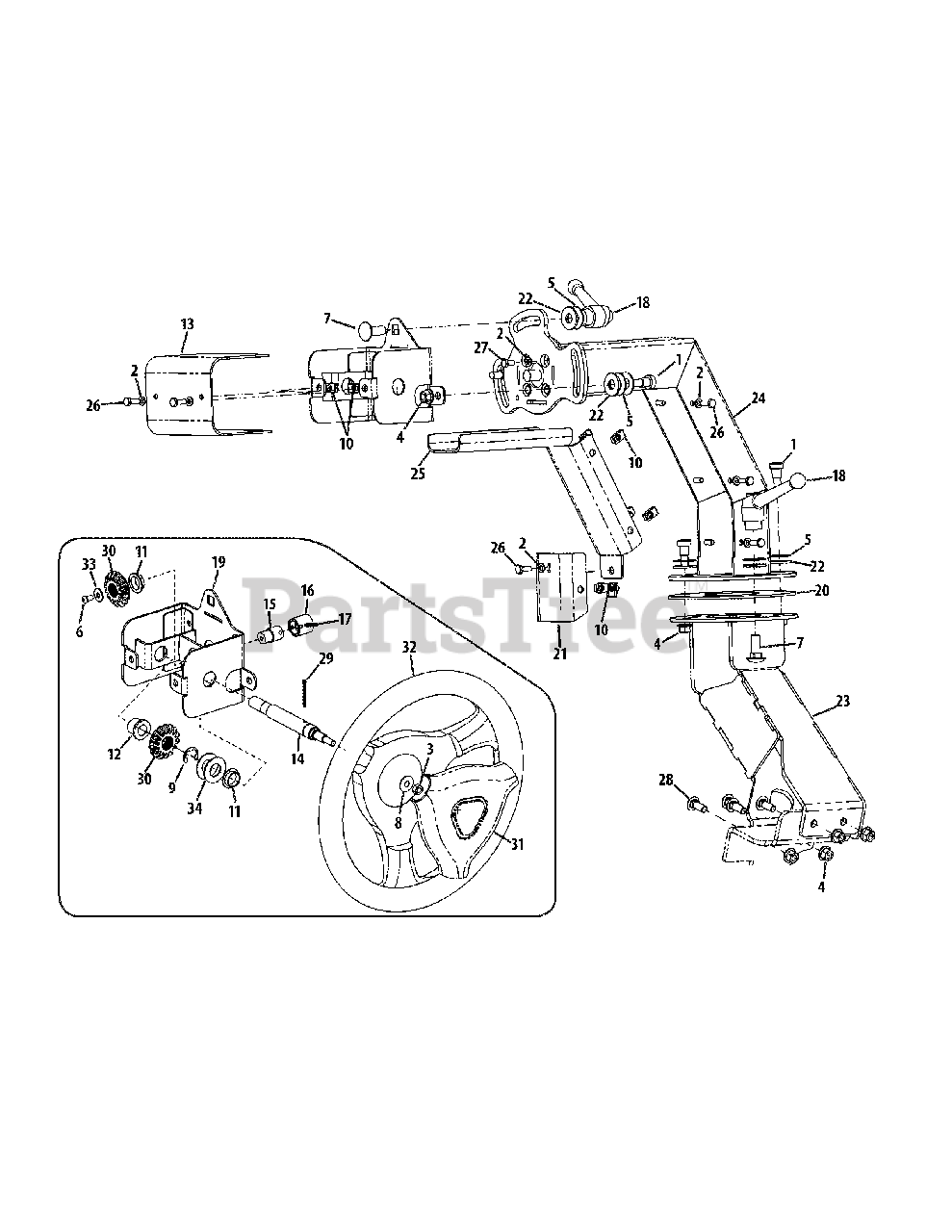

Steering Column Parts Diagram

  • Title

1

Cub Cadet 00011450

Shoulder Bolt, 3/8-16 x .495 x .500

$4.99

$

In Stock, only 1 left!

0

2

Cub Cadet 936-0329

Lock Washer, .250 x .489 x .110

$4.49

$

In Stock, Qty 11

0

3

Cub Cadet 912-3057

Nut, 5/16-24

$6.99

$

In Stock, only 3 left!

0

4

Cub Cadet 00022560

Flange Counter Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 00070022

Washer, .533 x 1.25 x .058

$

$

Not available

6

Cub Cadet 710-3256

Screw, 1/4-20 x .500

$10.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 01000517

Carriage Bolt, 1/2-13 x 1.25
(Superseded to 710-05375)

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 936-0425

Bell Washer, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

9

Cub Cadet 01003994

Retainer Clip

$6.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 01008539P

U-Nut, 1/4-20
(Superseded to 726-3054)

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 02003163

Flange Bearing, .752 x 1.25 x .305

$

$

Not available

12

Cub Cadet 02004002

Flange Slv. Bearing, .630 x .875 x .75

$23.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 02004107-0637

Box Steering Cover

$

$

Not available

14

Cub Cadet 02004109

Steering Shaft

$516.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 02004110

Valve Steering Shaft

$75.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02004308

Steering Valve Spline Hub

$295.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 02004622

Spirol Pin, 3/16 x 1.0

$

$

Not available

18

Cub Cadet 02005058

Steering Adjust/Lock Lever

$72.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 02005378-0637

Steering Box Housing Assembly

$63.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 02005396

Wear Swing Plate

$

$

Not available

21

Cub Cadet 02005495-0637

Steering Column Cover

$

$

Not available

22

Cub Cadet 02005512

Washer, .531 x 1.250 x .100

$3.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 680-00082-0637

Base Column Assembly

$

$

Not available

24

Cub Cadet 680-00093-0637

Upper Steering Column Assembly

$

$

Not available

25

Cub Cadet 703-07470-0637

Upper Steering Column Cover

$

$

Not available

26

Cub Cadet 710-3015

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

27

Cub Cadet 710-3140

Hex Screw, M6-1.00 x 14

$

$

Not available

28

Cub Cadet 710-3168

Carriage Bolt, 3/8-16 x 1.00

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet 914-0470

Cotter Pin, 1/8 x 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 917-1019

Splined Bore Miter Gear

$29.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 731-06459

Steering Wheel Cover

$21.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 731-3209

Steering Wheel

$

$

Not available

33

Cub Cadet 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 736-0188

Flat Washer, .76 x 1.49 x .06

$4.49

$

In Stock, Qty 20+

0
