S6031-KW LP (53AP8DU6750) - Cub Cadet 60" Tank S Zero-Turn Mower, 852cc Kawasaki Propane Pedal Controls Parts Diagram

60" Tank S Zero-Turn Mower, 852cc Kawasaki Propane

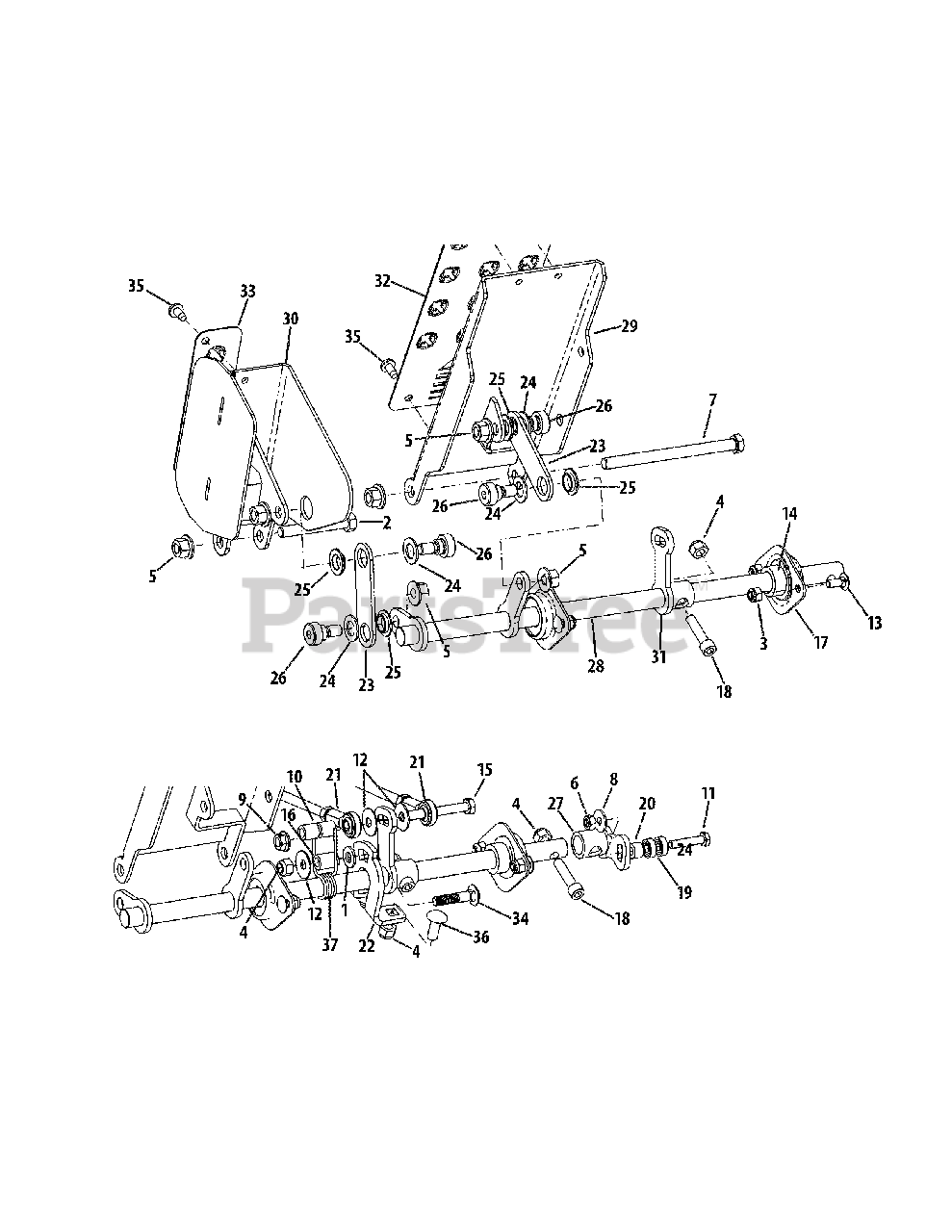

Pedal Controls Parts Diagram

  • Title

1

Cub Cadet 00009812

Washer, .344 x .688 x .063

$

$

Not available

2

Cub Cadet 00011861

Hex Screw, 3/8-16 x 2.50
(Superseded to 710-0859)

$6.99

$

In Stock, Qty 16

0

3

Cub Cadet 00012152

Nut, 1/4-20

$4.49

$

In Stock, only 1 left!

0

4

Cub Cadet 00012165

Nut, 5/16-18

$4.99

$

In Stock, only 1 left!

0

5

Cub Cadet 00022560

Flange Counter Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00023041

Counter Lock Nut, 1/4-20

$

$

Not available

7

Cub Cadet 00034167

Hex Screw, 3/8-16 x 5.00

$

$

Not available

8

Cub Cadet 01000489

Bell Washer, .265 x .75 x .062
(Superseded to 736-0270)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 712-3004A

Flange Counter Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 01000799

Spacer, .315 x .500 x .520

$9.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 01000913

Hex Screw, 1/4-20 x 1.25

$2.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 936-0425

Bell Washer, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

13

Cub Cadet 01001160

Carriage Bolt, 1/4-20 x .620

Note: NLA

$

$

Not available

14

Cub Cadet 01006350

Shaft Collar, .625 x 1.00 x .438

$24.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01007122P

Hex Screw, 5/16-18 x 2.50

$

$

Not available

16

Cub Cadet 01007984

Spacer, .315 x .500 x .699

$

$

Not available

17

Cub Cadet 02000487

Flange Bearing
(Superseded to 741-04566)

$15.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 02002994

Screw, 5/16-18 x 1.25

$6.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 02003377

Ball Bearing, .25 x .625 x .196

$26.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 02005057

Spacer, .256 x .500 x .330

$

$

Not available

21

Cub Cadet 02005464

Speed Control Link Assembly

$

$

Not available

22

Cub Cadet 02005547

Bracket

$

$

Not available

23

Cub Cadet 02005549

Pedal Control Link

$15.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 02005560

Washer, .51 x .88 x .06

$

$

Not available

25

Cub Cadet 02005568

Flange Bearing, .502 x .875 x .180

$

$

Not available

26

Cub Cadet 02005570

Shoulder Bolt, 3/8-16 x .50 x .25

$

$

Not available

27

Cub Cadet 02005629

Lockout Hub Assembly

$68.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 680-00103

Pedal Bellcrank Assembly

$

$

Not available

29

Cub Cadet 680-00132-0637

Forward Pedal Assembly

$

$

Not available

30

Cub Cadet 680-00133-0637

Reverse Pedal Assembly

$

$

Not available

31

Cub Cadet 680-00135

Control Arm Assembly

$

$

Not available

32

Cub Cadet 703-07763

Forward Pedal Grip

$

$

Not available

33

Cub Cadet 703-07764

Reverse Pedal Grip

$

$

Not available

34

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 11

0

35

Cub Cadet 710-05070

Screw, 1/4-20 x .5
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

36

Cub Cadet 710-3105

Carriage Bolt, 5/16-18 x .875

$6.49

$

In Stock, only 2 left!

0

37

Cub Cadet 732-04721A

Torsion Spring, .66 x .56

$

$

Not available
