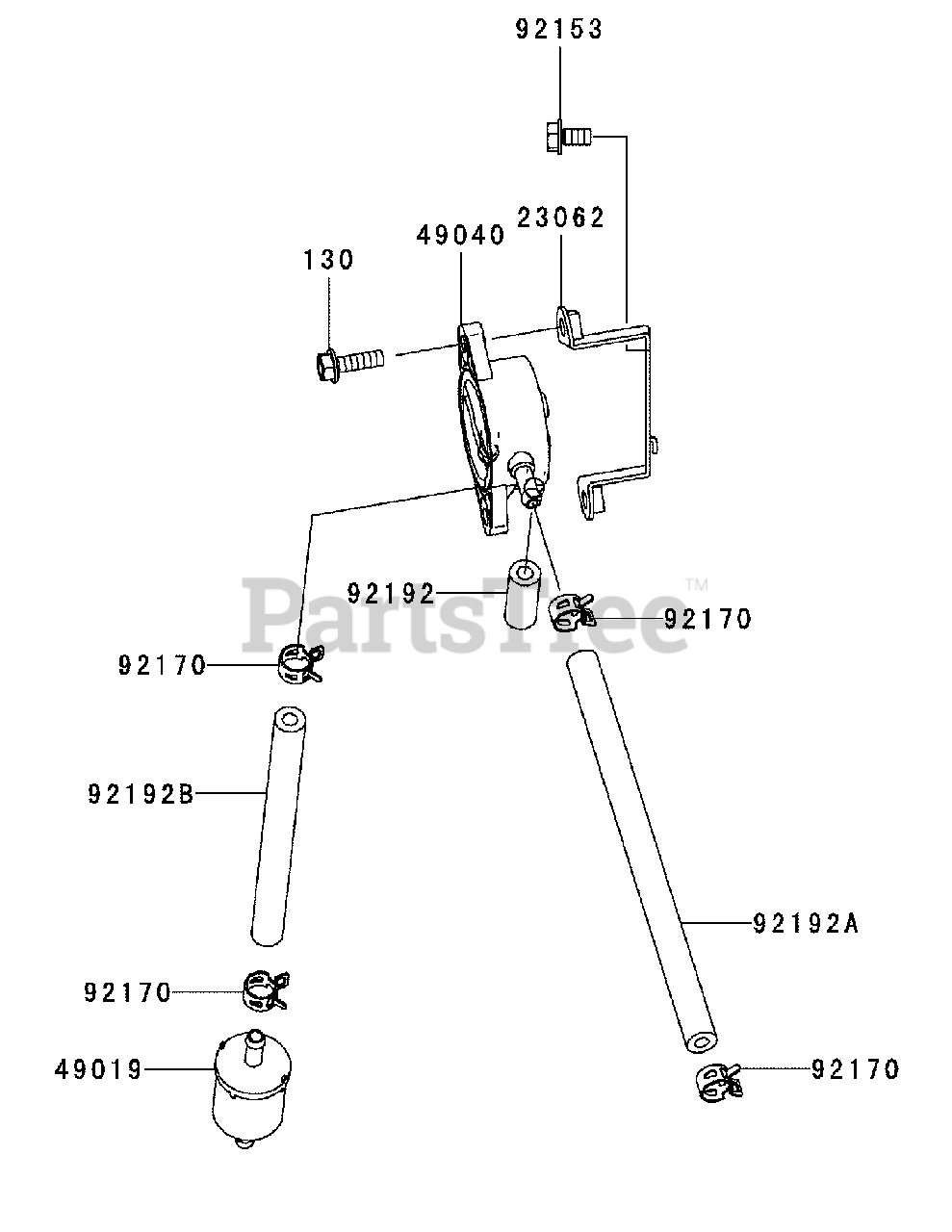

S6031-KW LP (53AP8DU6750) - Cub Cadet 60" Tank S Zero-Turn Mower, 852cc Kawasaki Propane Kawasaki FX850V-AS00 Fuel Tank & Fuel Valve Parts Diagram

60" Tank S Zero-Turn Mower, 852cc Kawasaki Propane

Kawasaki FX850V-AS00 Fuel Tank & Fuel Valve Parts Diagram

  • Title
23062

$11.99

$

Usually ships in 2-5 days

0

49019

Cub Cadet KM-49019-0014

Filter-Fuel
(Superseded to KM-49019-0027)

$9.99

$

In Stock, Qty 20+

0

49040

Cub Cadet KM-49040-7001

Pump-Fuel
(Superseded to KM-49040-0769)

$37.99

$

Usually ships in 2-5 days

0

92153

Cub Cadet KM-92153-7043

Bolt, 6x12
(Superseded to KM-92154-2938)

$0.99

$

In Stock, Qty 20+

0

92170

Cub Cadet KM-92170-2009

Clamp
(Superseded to KM-92173-1582)

$2.99

$

In Stock, Qty 20+

0

92192

Cub Cadet KM-92192-7088

Tube, 6.4 x 12.7x28.5

$0.99

$

In Stock, only 1 left!

0

92192A

Cub Cadet KM-92192-7102

Tube, 6x12.7x195

$

$

Not available

92192B

Cub Cadet KM-92192-7116

Tube, 6x12.7x140

$

$

Not available

130

Cub Cadet KM-130AA0620

Bolt-Flanged, 6x20

$3.49

$

In Stock, Qty 20+

0
