S6031-KW (53DI8DU6050) - Cub Cadet 60" Tank S Zero-Turn Mower, 31hp Kawasaki Seat Assembly Parts Diagram

60" Tank S Zero-Turn Mower, 31hp Kawasaki

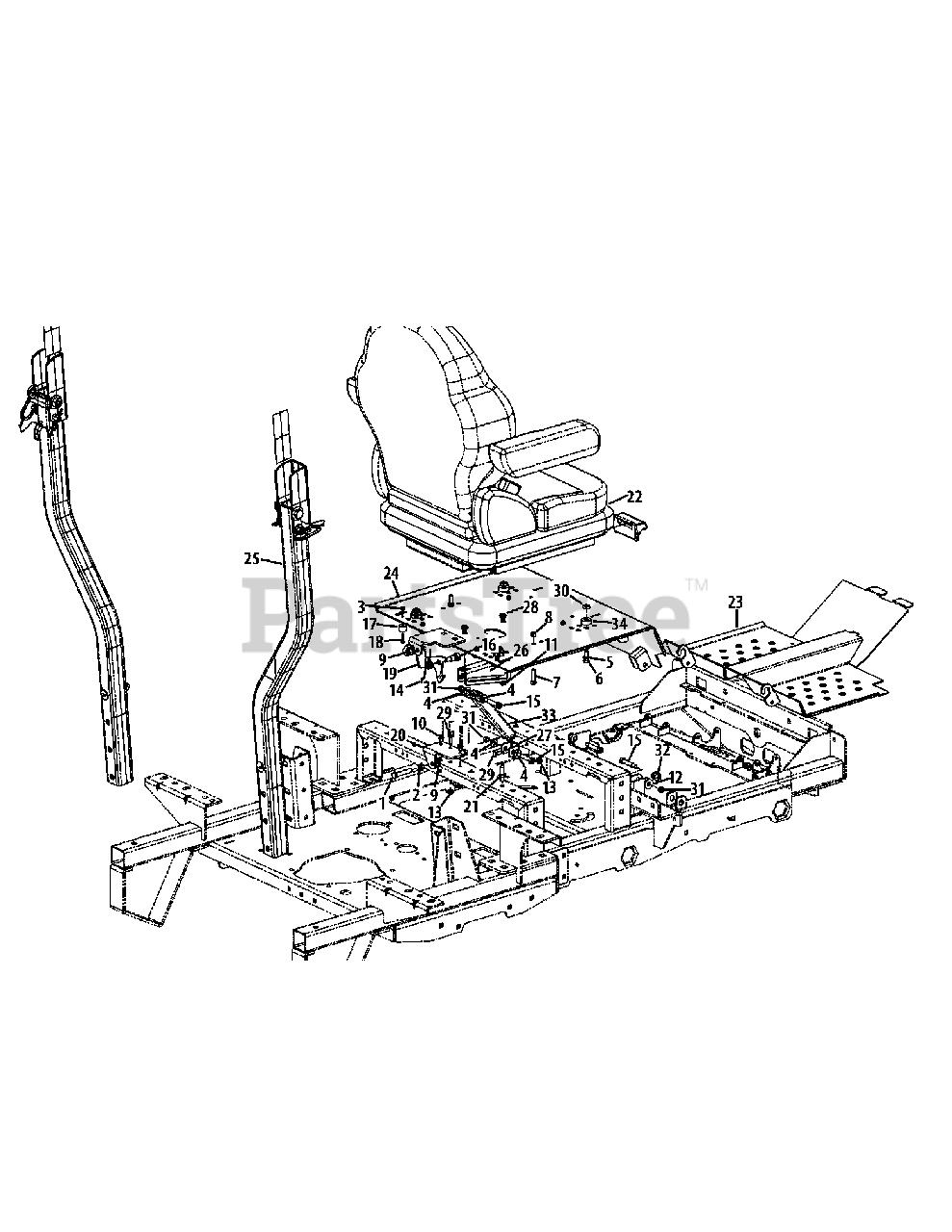

Seat Assembly Parts Diagram

  • Title

1

Cub Cadet 00002528

Hex Screw, 3/8-16 x 2.00

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 912-3017

Nut, 3/8-16
(Superseded to 712-3017)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 712-0161

Nylock Nut, #10-24

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 00012158

Wsdher, .406 x .813 x .063

$4.49

$

In Stock, Qty 9

0

5

Cub Cadet 00012168

Lock Washer, .312 x .583 x .083

$

$

Not available

6

Cub Cadet 00012180

Hex Screw, 5/16-18 x 1.00

$

$

Not available

7

Cub Cadet 00013116

Hex Screw, 5/16-18 x 1.25

$5.99

$

In Stock, only 1 left!

0

8

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 00022560

Flange Counter Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0599

Hex Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 712-3004A

Flange Counter Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

Cub Cadet 736-3052

Washer, .406 x 1.00 x .105

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 912-3027

Flange Top Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 01008140P

LH Torsion Spring, .725 x 1.07 x .09

$34.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 01009459

Shoulder Bolt, 5/16-18 x .37 x 1.50

$12.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02002091

Shoulder Bolt, 3/8-16 x .50 x .75

$

$

Not available

17

Cub Cadet 02002963

Bump Stop w/ Washer
(Superseded to 735-04287)

$3.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 02002964

Flat Head Screw, #10-24 x .750
(Superseded to 710-04868)

$3.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 02003732

Lever Latch Bracket

$

$

Not available

20

Cub Cadet 02003738-0637

Mount Latch Bracket

$

$

Not available

21

Cub Cadet 02003745

Center Adjust Stud, .375 x 1.125
(Superseded to 711-05676)

$

$

Not available

22

Cub Cadet 02004228

Suspension Seat w/ Seat Belt

$

$

Not available

23

Cub Cadet 680-00087-4021

Wide Assembly Floor Panel

$

$

Not available

24

Cub Cadet 680-00096-0637

Seat Mount Bracket Assembly

$

$

Not available

25

Cub Cadet 680-00110

Folding ROPS Assembly

$

$

Not available

26

Cub Cadet 703-07490

Seat Support Lock Bracket

$

$

Not available

27

Cub Cadet 703-07491

Seat Link Pivot Mount Bracket

$

$

Not available

28

Cub Cadet 710-0260A

Carriage Bolt, 5/16-18 x .62

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 710-3015

Hex Screw, 1/4-20 x .75

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 712-04190

Nut

$

$

Not available

31

Cub Cadet 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

32

Cub Cadet 735-04159

Grommet, .38 x .75 x .75

$

$

Not available

33

Cub Cadet 749-04613

Link Tube

$

$

Not available

34

Cub Cadet 750-3119

Spacer, .406 x 1.00 x .38

$11.99

$

In Stock, only 4 left!

0
