S6031-KW (53DI8DU6050) - Cub Cadet 60" Tank S Zero-Turn Mower, 31hp Kawasaki Fuel Tank Assembly Parts Diagram

60" Tank S Zero-Turn Mower, 31hp Kawasaki

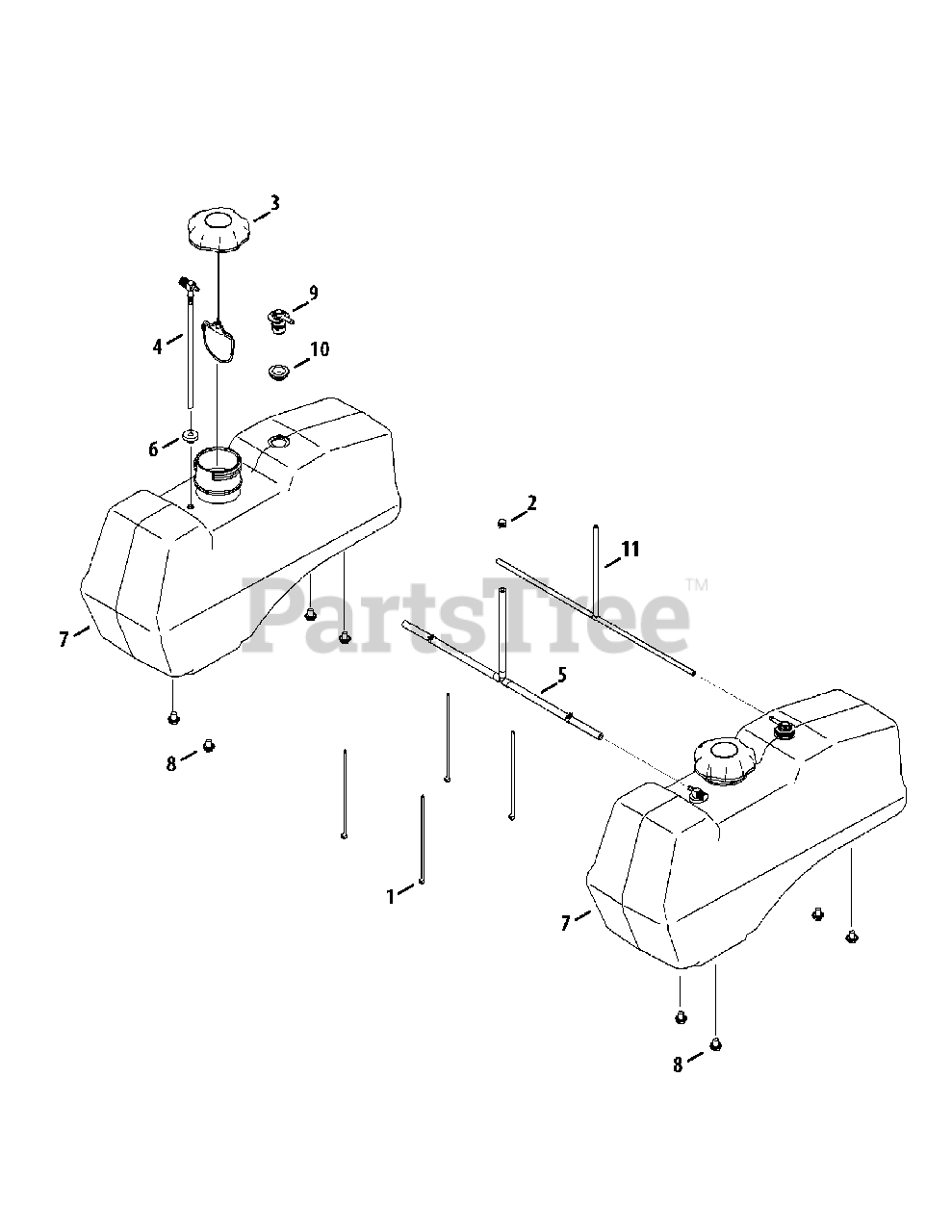

Fuel Tank Assembly Parts Diagram

  • Title

1

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 2 left!

0

2

Cub Cadet 00012235

Hose Clamp, SAE #4: 1/4-5/8, SS
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

3

Cub Cadet 951-12193A

Fuel Cap, 3.5

$57.99

$

In Stock, only 4 left!

0

4

Cub Cadet 01007425

Fuel Fitting
(Superseded to 751-12478)

$52.99

$

In Stock, only 2 left!

0

5

Cub Cadet 02001908

Fuel Hose Assembly

$88.99

$

In Stock, only 1 left!

0

5

Cub Cadet N/A

Hose, 1/4" Fuel Line

Note: Purchase locally

$

$

Currently unavailable

5

Cub Cadet 00012235

Clamp, Union
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

5

Cub Cadet 01003473

Tee Fitting, Fuel

$7.49

$

In Stock, only 2 left!

0

6

Cub Cadet 02002253

Grommet, Fuel Tank

$4.99

$

In Stock, only 1 left!

0

7

Cub Cadet 951-04317

Fuel Tank Assembly
(Superseded to 951-04317A)

$312.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 02005013

Hex Cap Screw, 3/8-16 x .50 Flange
(Superseded to 710-05412)

$3.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 751-12118

Fuel Rollover Valve

$35.99

$

In Stock, only 1 left!

0

10

Cub Cadet 735-04081

Rubber Grommet

$4.99

$

In Stock, Qty 20+

0

11

Cub Cadet 751-12282

Fuel Hose Assembly
(Superseded to 751-12282A)

$75.99

$

Usually ships in 3-6 days

0

11

Cub Cadet N/A

Hose, 3/16" Fuel Line

Note: Purchase locally

$

$

Currently unavailable

11

Cub Cadet 737-04341

Tee Fitting, Fuel

$6.49

$

Usually ships in 3-6 days

0
