S6031-KW (53CI8DU6050) - Cub Cadet 60" Tank S Zero-Turn Mower, 31hp Kawasaki Engine Accessories S6031 Parts Diagram

60" Tank S Zero-Turn Mower, 31hp Kawasaki

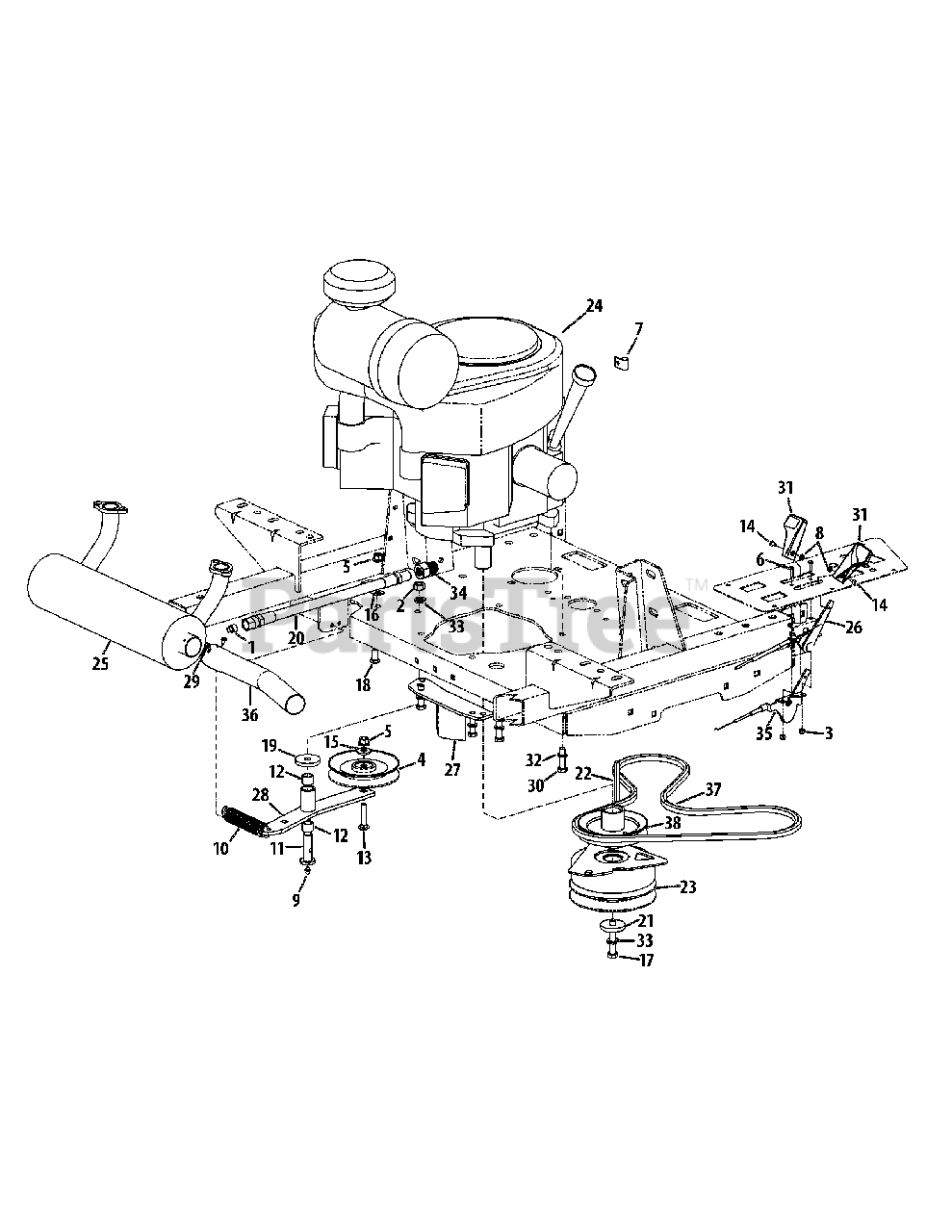

Engine Accessories S6031 Parts Diagram

  • Title

1

Cub Cadet 737-04202

Pipe Plug, 3/8

$6.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 912-3019

Nut, 7/16-14
(Superseded to 712-3019)

$6.99

$

In Stock, only 1 left!

0

3

Cub Cadet 00014608

Nut, #10-32
(Superseded to 712-05003)

$3.49

$

In Stock, only 3 left!

0

4

Cub Cadet 00021975

Idler

$74.99

$

In Stock, only 1 left!

0

5

Cub Cadet 00022560

Flange Counter Lock Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00030906

Machine Screw, #10-32 x .625

$6.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 00031081

Clamp, 1/2

$6.49

$

Usually ships in 3-6 days

0

8

Cub Cadet 00060056

Nut, 8-32

$6.99

$

In Stock, only 1 left!

0

9

Cub Cadet 737-04345

Grease Fitting, 1/4-28

$4.99

$

In Stock, Qty 6

0

10

Cub Cadet 01000199

Extension Spring, 1.00 x 5.00 x .125

$17.99

$

In Stock, only 4 left!

0

11

Cub Cadet 01000302

Shoulder Bolt, .625 x 1.95
(Superseded to 738-3102)

$21.99

$

In Stock, only 1 left!

0

12

Cub Cadet 01000308

Sleeve Bearing, .628 x.753 x .625
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

13

Cub Cadet 710-0560

Carriage Bolt, 3/8-18 x 1.75

$6.99

$

In Stock, Qty 11

0

14

Cub Cadet 710-3217

Machine Screw, #8-32 x .356

$6.99

$

In Stock, Qty 7

0

15

Cub Cadet 736-3052

Washer, .406 x 1.00 x .105

$4.49

$

In Stock, Qty 20+

0

16

Cub Cadet 726-3008

Clip, .470 x 1.80

$4.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01001395

Hex Screw, 7/16-20 x 2.50

$4.99

$

In Stock, only 2 left!

0

18

Cub Cadet 710-0216

Hex Screw, 3/8-16 x .750

$4.49

$

In Stock, Qty 15

0

19

Cub Cadet 01003269

Washer, .438 x 1.75 x .250
(Superseded to 736-3082A)

$9.99

$

In Stock, Qty 16

0

20

Cub Cadet 01003283

Oil Drain Hose

$84.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 736-04131

Washer, .438 x 1.745 x .250

$15.99

$

In Stock, only 1 left!

0

22

Cub Cadet 01005856

Key, .250 x .250 x 3.00

$11.99

$

In Stock, only 1 left!

0

23

Cub Cadet 02002825

Brake Clutch
(Superseded to 02002825P)

$1056.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 02003200P

Kawasaki FX850V-AS00-S Engine
(Superseded to 952SFX850S11)

$5254.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 02003201

Muffler

$399.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 02003422P

Choke Cable

$131.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 02003543-0637

Clutch Return Assembly

$63.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 02004075

Idler Arm Assembly

$

$

Not available

29

Cub Cadet 910-0224

Hex Washer Screw, #10-16 x 0.500

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 710-0520

Hex Screw, 3/8-16 x 1.50

$4.49

$

In Stock, Qty 6

0

31

Cub Cadet 731-04914

Throttle Control Knob

$13.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 936-0169

Lock Washer, 3/8
(Superseded to 736-0169)

$3.99

$

In Stock, Qty 20+

0

33

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

34

Cub Cadet 737-04138

Fitting, 1.0

$25.99

$

In Stock, only 3 left!

0

35

Cub Cadet 746-04534

Throttle Cable

$

$

Not available

36

Cub Cadet 751-11235

Exhaust Pipe

$

$

Not available

37

Cub Cadet 954-04233

Belt

$75.99

$

In Stock, only 4 left!

0

38

Cub Cadet 756-04382

Drive Pulley

$50.99

$

Usually ships in 3-6 days

0
