S6031-KW (53CI8DU6050) - Cub Cadet 60" Tank S Zero-Turn Mower, 31hp Kawasaki Deck Spindle Assembly 60-Inch Parts Diagram

60" Tank S Zero-Turn Mower, 31hp Kawasaki

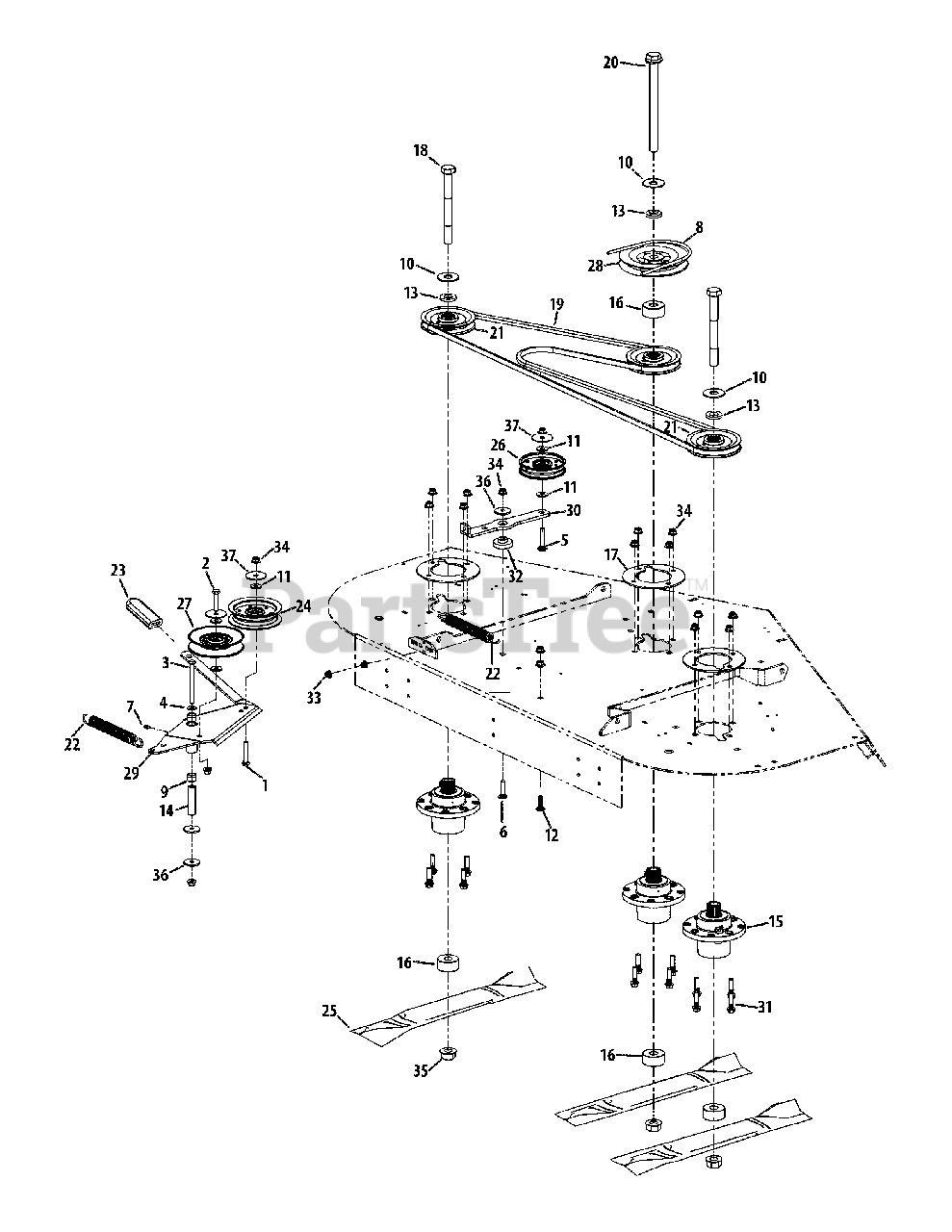

Deck Spindle Assembly 60-Inch Parts Diagram

  • Title

1

Cub Cadet 00002528

Hex Screw, 3/8-16 x 2.00

$6.99

$

In Stock, Qty 7

0

2

Cub Cadet 00008495

Hex Screw, 3/8-16 x 1.75

$6.99

$

In Stock, Qty 8

0

3

Cub Cadet 00011925

Hex Screw, 3/8-16 x 4.00
(Superseded to 710-0411)

$8.49

$

In Stock, Qty 17

0

4

Cub Cadet 00012158

Washer, .406 x .813 x .063

$4.49

$

In Stock, Qty 9

0

5

Cub Cadet 00014270

Carriage Bolt, 3/8-16 x 2.00
(Superseded to 710-04157)

$8.99

$

In Stock, only 1 left!

0

6

Cub Cadet 00030276

Carriage Bolt, 3/8-16 x 1.50
(Superseded to 710-0431)

$4.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 737-04345

Grease Fitting, 1/4-28

$4.99

$

In Stock, Qty 6

0

8

Cub Cadet 00068079

V-Belt

$92.99

$

In Stock, only 2 left!

0

9

Cub Cadet 01000308

Sleeve Bearing, .628 x .753 x .625
(Superseded to 741-04555)

$16.99

$

In Stock, Qty 18

0

10

Cub Cadet 736-3014

Washer, .781 x 2.00 x .105

$4.49

$

In Stock, only 4 left!

0

11

Cub Cadet 736-3052

Washer, .406 x 1.00 x .105

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3034

Carriage Bolt, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 5

0

13

Cub Cadet 01003123

Spacer, .812 x 1.47 x .218
(Superseded to 750-05553)

$9.99

$

In Stock, Qty 20+

0

14

Cub Cadet 01003245

Spacer, .390 x .635 x 2.75

$18.99

$

In Stock, only 1 left!

0

15

Cub Cadet 01003532P

Spindle Assembly
(Superseded to 918-05125)

$331.99

$

In Stock, Qty 12

0

16

Cub Cadet 01004415

Spacer, .760 x 2.00 x .925

$40.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 01004478-0637

Spindle Support Plate
(Superseded to 703-08898)

$42.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 01005213

Hex Screw, 3/4-16 x 7.00
(Superseded to 710-05387)

$14.99

$

In Stock, only 1 left!

0

19

Cub Cadet 01005376

V-Belt
(Superseded to 01005376P)

$87.99

$

In Stock, only 2 left!

0

20

Cub Cadet 01005388

Hex Screw, 3/4-16 x 9.00
(Superseded to 710-05388)

$32.99

$

In Stock, only 4 left!

0

21

Cub Cadet 01005616

Pulley

$

$

Not available

22

Cub Cadet 02003712

Extension Spring, .94x 7.57 x .14
(Superseded to 732-04960)

$14.99

$

In Stock, only 3 left!

0

23

Cub Cadet 02003740

Flat Grip, 1.0 x 3.2 x .25

$10.99

$

In Stock, only 1 left!

0

24

Cub Cadet 02004447

Idler Pulley

$57.99

$

In Stock, Qty 20+

0

25

Cub Cadet 02005019

Hi-Lift Blade, 21.0
(Superseded to 942-04415)

$35.99

$

In Stock, Qty 20+

0

26

Cub Cadet 02005077

Idler Pulley

$35.99

$

In Stock, Qty 20+

0

27

Cub Cadet 02005079

Idler Pulley
(Superseded to 756-04522)

$39.99

$

In Stock, only 4 left!

0

28

Cub Cadet 02005097

Pulley

$

$

Not available

29

Cub Cadet 02005509P

Double Idler Weldment w/ Handle

$100.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 703-07010

Deck Idler Arm

$19.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 11

0

32

Cub Cadet 710-04829

Flange Bolt, 3/8-16 x 1.5

$6.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

34

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

35

Cub Cadet 712-3078

Flange Lock Nut, 3/4-16

$9.99

$

In Stock, Qty 20+

0

36

Cub Cadet 936-0227

Flat Washer, .390 x 1.500 x .134
(Superseded to 736-0227)

$

$

Not available

37

Cub Cadet 736-3040

Flat Washer, .406 x 1.92 x .060

$6.49

$

In Stock, Qty 8

0

38

Cub Cadet 738-04376

Shoulder Spacer, .854 x .280

$9.99

$

In Stock, only 3 left!

0
