S6031-KW (53AI8DU6050) - Cub Cadet 60" Tank S Zero-Turn Mower, 31hp Kawasaki Speed Control Assembly Parts Diagram

60" Tank S Zero-Turn Mower, 31hp Kawasaki

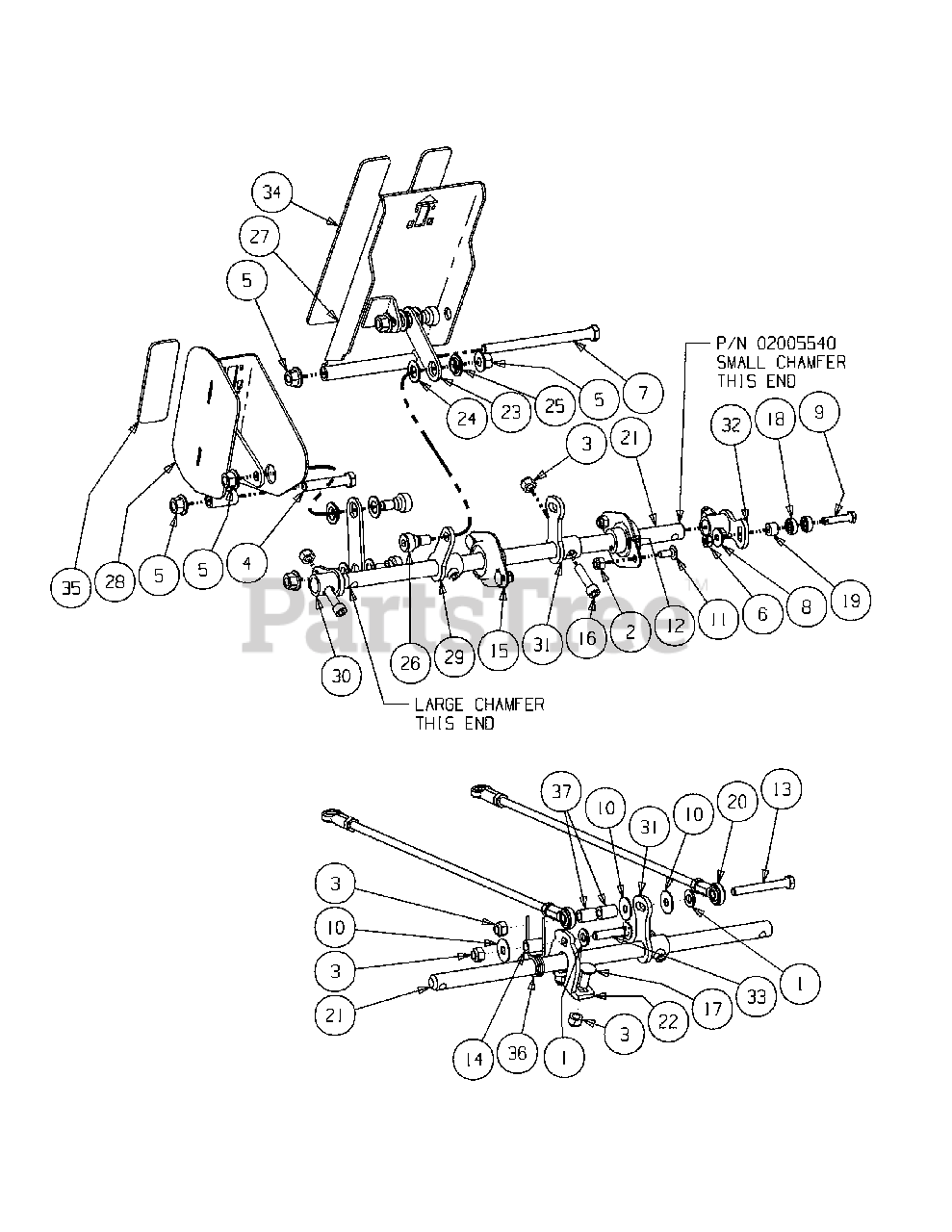

Speed Control Assembly Parts Diagram

  • Title

1

Cub Cadet 00009812

Flat Washer, 5/16

$

$

Not available

2

Cub Cadet 00012152

Lock Nut w/Nylon Insert

$4.49

$

In Stock, only 1 left!

0

3

Cub Cadet 00012165

Nut, 5/16-18, nylock

$4.99

$

In Stock, only 1 left!

0

4

Cub Cadet 00012172

HHCS, 3/8-16 x 2.00
(Superseded to 710-3096)

$7.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 00022560

Flange Lock Hex Nut, 3/8-16
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 00023041

Lock Nut, 1/4-NC, Side

$

$

Not available

7

Cub Cadet 00034167

HHCS, 3/8-16 x 5.00

$

$

Not available

8

Cub Cadet 01000489

Washer, .265 x .75 x .062
(Superseded to 736-0270)

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 01000913

HHCS, 1/4-20 x 1.25

$2.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 936-0425

Washer, .325 x .930 x .045
(Superseded to 736-0425)

$

$

Not available

11

Cub Cadet 01001160

Carriage Screw, 1/4-20 x .62

Note: NLA

$

$

Not available

12

Cub Cadet 01006350

Shaft Collar

$24.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 01007122P

HHCS, 5/16-18 x 2.5

$

$

Not available

14

Cub Cadet 01007984

Spacer, .315 ID x .500 OD x .699 LG

$

$

Not available

15

Cub Cadet 02000487

Flange Bearing
(Superseded to 741-04566)

$15.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 02002994

Socket Head Capscrew, 5/16-18 x 1.25

$6.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 02003264

Carriage Bolt, 5/16-18 x .88

$

$

Not available

18

Cub Cadet 02003377

Ball Bearing, .25 ID x .625 OD x .196

$26.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 02005057

Spacer, .256 x .500 x .330

$

$

Not available

20

Cub Cadet 02005464

Speed Control Rod Assembly

$

$

Not available

21

Cub Cadet 02005540

Shaft, .625 x 15.556

$

$

Not available

22

Cub Cadet 02005547

Retainer Bracket

$

$

Not available

23

Cub Cadet 02005549

Conrol Pedal Link

$15.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 02005560

Washer, .51 x .88 x .06

$

$

Not available

25

Cub Cadet 02005568

Flange Bearing, .502 x .875 x .180

$

$

Not available

26

Cub Cadet 02005570

Shoulder Bolt, .50 x .25 x 3/8-16

$

$

Not available

27

Cub Cadet 02005616-0637

Pedal Assembly, Forward

$

$

Not available

28

Cub Cadet 02005618-0637

Pedal Assembly, Reverse

$

$

Not available

29

Cub Cadet 02005622

Arm Assembly, 1.75 LG x .625 Dia.

$

$

Not available

30

Cub Cadet 02005624

Arm Assembly, 1.375 LG x .625 Dia.

$

$

Not available

31

Cub Cadet 02005627

Arm Assembly, 1.75 LG x .625 Dia.

$

$

Not available

32

Cub Cadet 02005629

Hub Assembly

$68.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 710-0262

Carriage Bolt, 5/16-18 x 1.50

$3.99

$

In Stock, Qty 13

0

34

Cub Cadet 720-04109

Grip, Fwd

$

$

Not available

35

Cub Cadet 720-04110

Grip, Rev

$

$

Not available

36

Cub Cadet 732-04590

Torsion Spring, .66 ID x .47 LG

$

$

Not available

37

Cub Cadet 01000799

Spacer, .315 ID x .500 OD x .520 LG

$9.49

$

Usually ships in 3-6 days

0
