S5002 (8983-5) - Generac 5,000 Watt Portable Generator Generator Parts Diagram

5,000 Watt Portable Generator

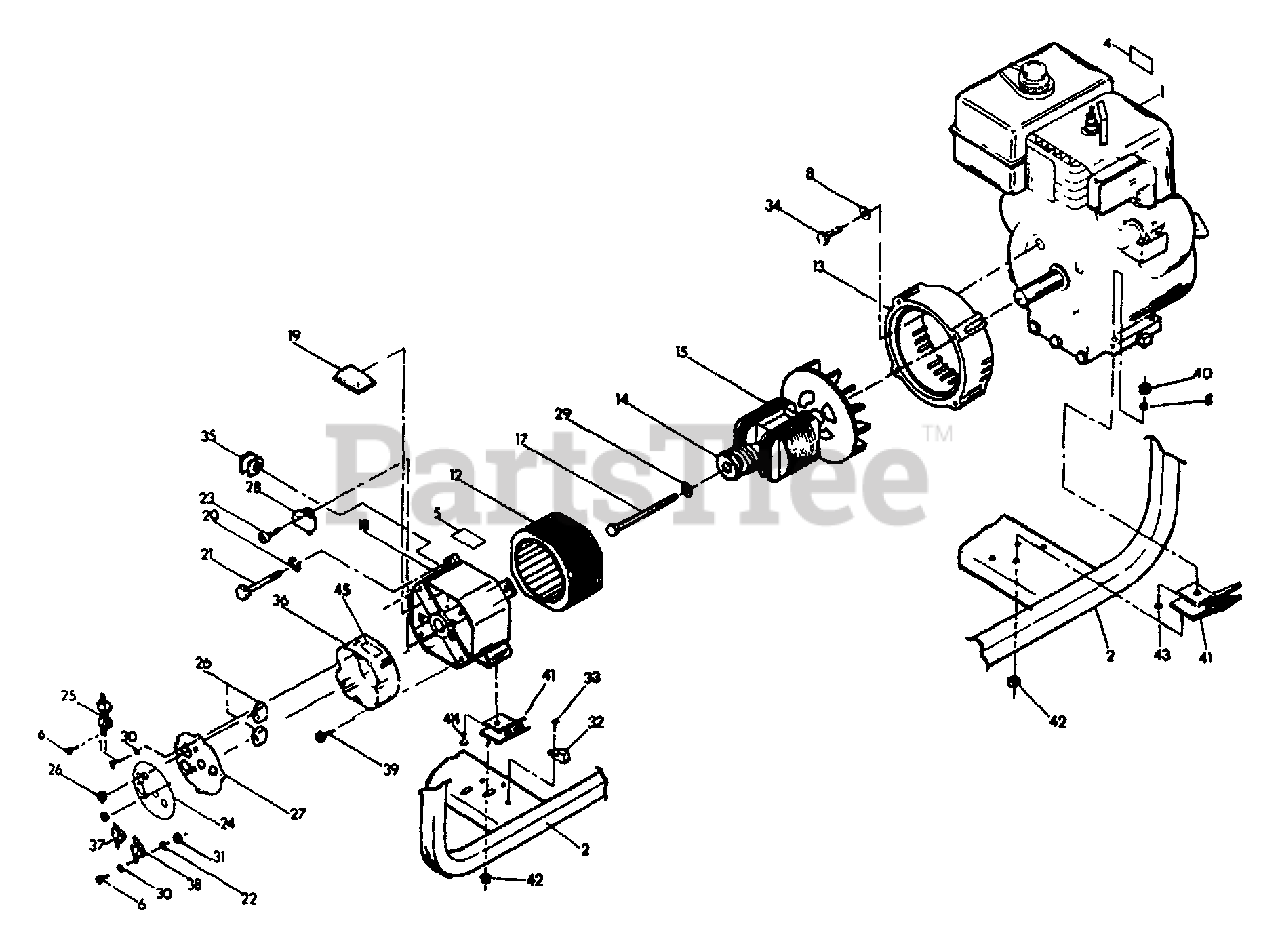

Generator Parts Diagram

  • Title

1

Briggs & Stratton 71389

ENGINE-TECUMSEH HM100

$

$

Currently unavailable

2

Briggs & Stratton 75987

CRADLE ASSEMBLY

$

$

Currently unavailable

5

Briggs & Stratton 72079

DECAL-WARNING

$

$

Currently unavailable

4

Briggs & Stratton 39178

DECAL

$

$

Currently unavailable

6

Briggs & Stratton 36917

SCREW, PAN HD, MACH.-NO.8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22129

LOCKWASHER-M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 33528

SCREW, PAN HD.-NO. 10-32 x 1/4"

$

$

Currently unavailable

12

Briggs & Stratton 74709

STATOR ASSEMBLY

$

$

Currently unavailable

13

Briggs & Stratton 66365D

HOUSING, ENGINE ADAPTOR
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 74716

ROTOR ASSEMBLY

$

$

Not available

16

Briggs & Stratton 22145

FLAT WASHER-5/16"

$

$

Not available

17

Briggs & Stratton 73067

BOLT, ROTOR-5/16"-24 x 8.25

$

$

Currently unavailable

18

Briggs & Stratton 66825

CARRIER, REAR BEARING

$

$

Currently unavailable

19

Briggs & Stratton 66850

BOARD, CIRCUIT-BRIDGE RECTIFIER
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22097

LOCK WASHER-M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66449D

BOLT, STATOR-M6-1.00 x 130MM

$

$

Currently unavailable

22

Briggs & Stratton 22264

LOCKWASHER-M8

$

$

Not available

23

Briggs & Stratton 66849

SCREW(TAPTITE)-M5-0.60 x 15MM
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

24

Briggs & Stratton 72293

DECAL-RECEPTACLE PANEL
(Superseded to 7072293YP)

$51.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 69759

RECEPTACLE-120 VOLTS AC

$

$

Currently unavailable

26

Briggs & Stratton 66819

BREAKER, CIRCUIT-20 AMP

$

$

Currently unavailable

27

PANEL

$

$

Not available

28

Briggs & Stratton 66385

BRUSH

$

$

Currently unavailable

29

Briggs & Stratton 67451

FLAT WASHER-(SPECIAL)

$

$

Currently unavailable

30

Briggs & Stratton 23365

LOCKWASHER(SERRATED)-NO.8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 22471

NUT, HEX-NO. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 25433

LUG, GROUNDING

$

$

Not available

33

Briggs & Stratton 24489

SCREW, (TAPTITE)-NO. 10-24 x 1/2"

$

$

Currently unavailable

34

Briggs & Stratton 22336

SCREW, HEX HEAD-5/16"-24 x 3/4"

$

$

Not available

35

Briggs & Stratton 67022

GROMMET, BEARING CARRIER
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 72280

SHROUD, PANEL
(Superseded to 7072280YP)

$22.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 68868

RECEPTACLE, 120 VOLT 30 AMP
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 68867

RECEPTACLE, 120/240 VOLT 20AMP
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 73540

SCREW, PAN HD.-M5-0.80 x 25MM

$

$

Currently unavailable

40

Briggs & Stratton 45771

HEX NUT-M8-1.25

$

$

Not available

41

Briggs & Stratton 70642

VIBRATION MOUNT
(Superseded to 70642GS)

$31.99

$

In Stock, only 2 left!

0

42

Briggs & Stratton 52858

FLANGE NUT-LOCK-M8-1.25
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

43

Briggs & Stratton 76222

PHILIPS PAN HD. MACH. SCR.-M8-1.25 x 40MM LG
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 70644

PHILIPS PAN HD. MACH. SCR.-M8-1.25 x 20MM LG
(Superseded to 70644GS)

$4.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 74728

DECAL, GROUNDED NEUTRAL
(Superseded to 74728GS)

$5.49

$

Usually ships in 2-12 days

0
