S5002 (8983-0) - Generac 5,000 Watt Portable Generator A-C Generator Parts Diagram

5,000 Watt Portable Generator

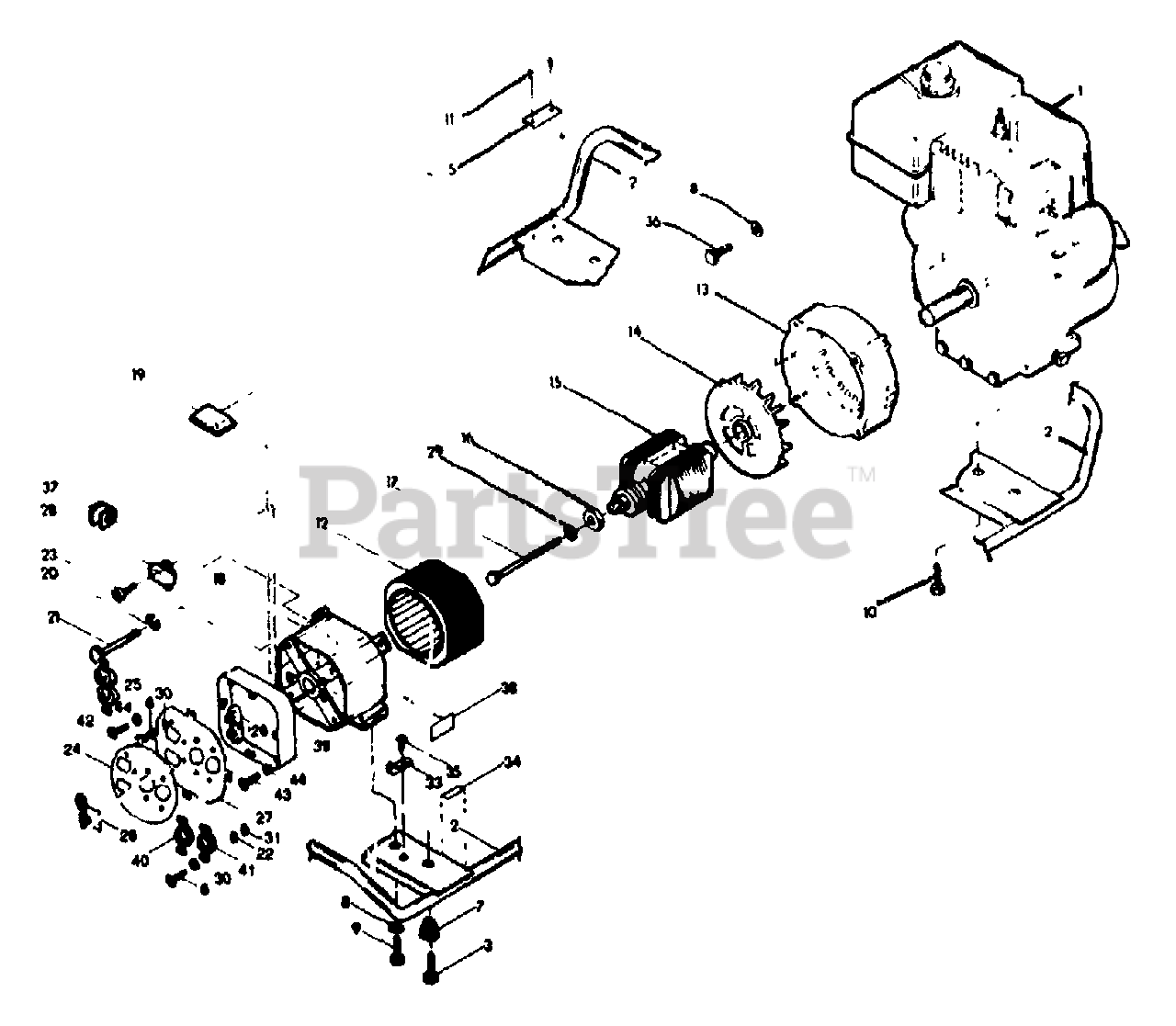

A-C Generator Parts Diagram

  • Title

1

Briggs & Stratton 71389

ENGINE-Tecumseh HM-100

$

$

Currently unavailable

2

Briggs & Stratton 72097

CRADLE

$

$

Currently unavailable

3

Briggs & Stratton 24910

SCREW (Taptite)-5/16"-18 x 1/2"

$

$

Not available

5

Briggs & Stratton 67430K

PLATE- Serial

$

$

Currently unavailable

6

Briggs & Stratton 36917

SCREW, Pan Head Machine No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23594

MOUNT, Vibration

$

$

Currently unavailable

8

Briggs & Stratton 22129

WASHER, Lock- M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 38253

SCREW, Pan Head Machine M8- 1.25 x 20mm

$

$

Not available

10

Briggs & Stratton 59637

SCREW (Taptite)- 3/8"-16 x 3/4"

$

$

Not available

11

Briggs & Stratton 36261

RIVET- Stainless Steel

$

$

Not available

12

Briggs & Stratton 73057

STATOR

$

$

Currently unavailable

13

Briggs & Stratton 66365D

HOUSING, Engine Adaptor
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66389

FAN, Cooling

$

$

Not available

15

Briggs & Stratton 73063

ROTOR

$

$

Currently unavailable

16

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 46958

BOLT, Rotor-5/16"-24 x 8"

$

$

Not available

18

Briggs & Stratton 66925

CARRIER, Rear Bearing

$

$

Currently unavailable

19

Briggs & Stratton 66850

BOARD, Circuit-Bridge Rectifier
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22097

WASHER, Lock- M8
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66449F

BOLT, Stator- M8-1.00 x 140mm

$

$

Not available

22

Briggs & Stratton 22254

WASHER, Lock- M8

$

$

Currently unavailable

23

Briggs & Stratton 66849

SCREW (Taptite)- M5-0.60 x 15
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 72293

DECAL- Receptacle Panel
(Superseded to 7072293YP)

$51.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 69759

RECEPTACLE- 120 volts a-c

$

$

Currently unavailable

26

Briggs & Stratton 66819

BREAKER, Circuit- 20 amp

$

$

Currently unavailable

27

Briggs & Stratton 72290

PANEL, Receptacle
(Superseded to 7058295YP)

$47.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 66386

DRUSH
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

29

Briggs & Stratton 67451

WASHER, Flat (Special)

$

$

Currently unavailable

30

Briggs & Stratton 23365

WASHER, Serrated (No. 8)
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 25433

LUG, Grounding

$

$

Not available

34

Briggs & Stratton 67210A

DECAL-Ground
(Superseded to 67210AGS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 56893

SCREW (Taptite) No. 10-24 x 1/2"
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 22338

SCREW, Hex-5/16"-24 x 3/4"
(Superseded to 5022338)

$1396.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 67022

GROMMET, Bearing Carrier
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 72298

DECAL-Data

$

$

Not available

39

Briggs & Stratton 72280

SHROUD, Panel
(Superseded to 7072280YP)

$22.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 68868

RECEPTACLE- 120 volts, 30 amp
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 68867

RECEPTACLE- 120/240v., 20 amp
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 33528

SCREW, Pan Head No. 10-32 x 1/4"

$

$

Currently unavailable

43

Briggs & Stratton 73540

SCREW, Pan Head-M5-0.80

$

$

Currently unavailable

44

Briggs & Stratton 22152

WASHER, Lock-No.10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 73732

MANUAL, Owner's
(Superseded to 73732GS)

$14.99

$

Usually ships in 2-12 days

0
