S4002 (8973-4) - Generac 4,000 Watt Portable Generator Generator Parts Diagram

4,000 Watt Portable Generator

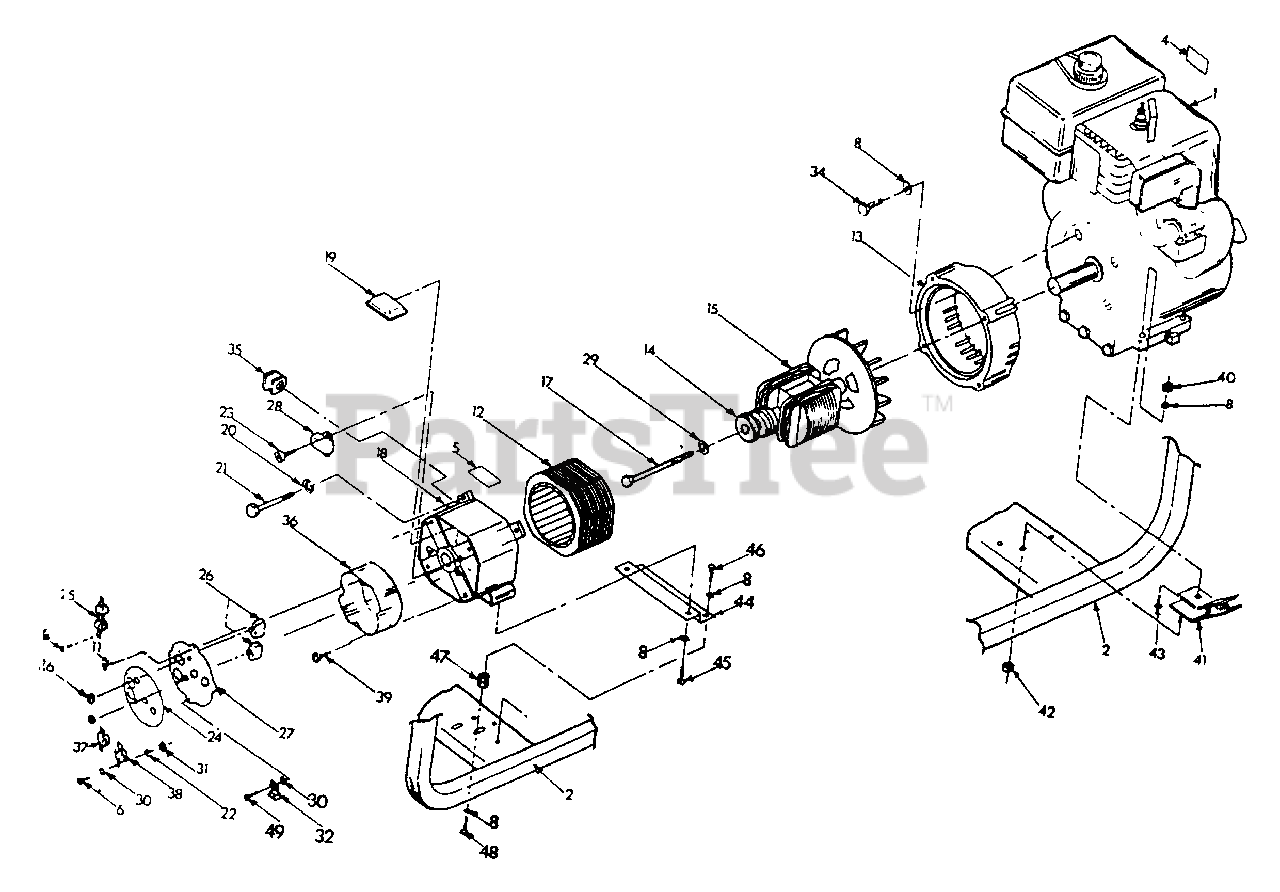

Generator Parts Diagram

  • Title

1

Briggs & Stratton 76516

ENGINE BRIGGS & STRATTON 8HP.

$

$

Currently unavailable

2

Briggs & Stratton 75987

CRADLE ASSEMBLY

$

$

Currently unavailable

4

Briggs & Stratton 39178

DECAL

$

$

Currently unavailable

5

Briggs & Stratton 72079

DECAL-WARNING

$

$

Currently unavailable

6

Briggs & Stratton 36917

SCREW, PAN HD.-MACH.-NO. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22129

LOCKWASHER-M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 36933

SCREW, PAN HD. PHILLIPS-NO. 10-32 x 3/8"

$

$

Not available

12

Briggs & Stratton 74705

STATOR ASSEMBLY
(Superseded to 7074705YP)

$159.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 66365

HOUSING, ENGINE ADAPTOR
(Superseded to 66365GS)

$69.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 74716

ROTOR ASSEMBLY

$

$

Not available

16

Briggs & Stratton 22145

FLAT WASHER-5/16"

$

$

Not available

17

Briggs & Stratton 73067

BOLT, ROTOR-5/16"-24 x 8.25

$

$

Currently unavailable

18

Briggs & Stratton 66825

CARRIER, REAR BEARING

$

$

Currently unavailable

19

Briggs & Stratton 66850

BOARD, CIRCUIT-BRIDGE RECTIFIER
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22097

LOCKWASHER-M8
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66449D

BOLT, STATOR-M6 1.00 x 130MM

$

$

Currently unavailable

22

Briggs & Stratton 22264

LOCKWASHER M-8

$

$

Not available

23

Briggs & Stratton 66849

SCREW (TAPTITE)-M5-0.80 x 15MM
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 72284

DECAL-RECEPTACLE PANEL
(Superseded to 7072284YP)

$

$

Not available

25

Briggs & Stratton 68759

RECEPTACLE- 120 VOLTS AC
(Superseded to 68759GS)

$24.99

$

In Stock, Qty 8

0

26

Briggs & Stratton 66819

BREAKER, CIRCUIT-30 AMP

$

$

Currently unavailable

27

Briggs & Stratton 72290

PANEL
(Superseded to 7058295YP)

$47.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 66386

BRUSH
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

29

Briggs & Stratton 67451

FLAT WASHER-(SPECIAL)

$

$

Currently unavailable

30

Briggs & Stratton 23365

LOCKWASHER (SERRATED)-NO.8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 22471

NUT, HEX-NO. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 25433

LUG, GROUNDING

$

$

Not available

34

Briggs & Stratton 22336

SCREW, HEX HD.- 5/16" 24 x 3/4"

$

$

Not available

35

Briggs & Stratton 67022

GROMMET, BEARING CARRIER
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 72280

SHROUD, PANEL
(Superseded to 7072280YP)

$22.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 68868

RECEPTACLE, 120 VOLT 30 AMP.
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 68867

RECEPTACLE, 120/240 VOLT 20 AMP.
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 73540

SCREW, PAN HEAD-M5-0.80 x 23MM

$

$

Currently unavailable

40

Briggs & Stratton 45771

HEX NUT -M8 1.25 x 20

$

$

Not available

41

Briggs & Stratton 70642

VIBRATION MOUNT
(Superseded to 70642GS)

$31.99

$

In Stock, only 2 left!

0

42

Briggs & Stratton 52858

FLANGE NUT-LOCK-M8- 1.28
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

43

Briggs & Stratton 76222

PHILIPS PAN HD. MACH. SCR.-M8 1.25 x 40MM LG
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 73078

GENERATOR SUPPORT

$

$

Currently unavailable

45

Briggs & Stratton 39253

SCREW, HEX HEAD-M8-1.25 x 20
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

46

Briggs & Stratton 36223

SCREW, HEX HEAD-5/16"-18 x 1/2"

$

$

Currently unavailable

47

Briggs & Stratton 44624

VIBRATION MOUNT

$

$

Not available

48

Briggs & Stratton 30332

SCREW, HEX HEAD-5/16"-18 x 3/4"

$

$

Currently unavailable

49

Briggs & Stratton 36934

SCREW, PAN HD. PHILIPS-NO. 10 32 x 5/8"

$

$

Currently unavailable
