S4001 (9173-0) - Generac 4,000 Watt Portable Generator S4001 Generator Parts Diagram

4,000 Watt Portable Generator

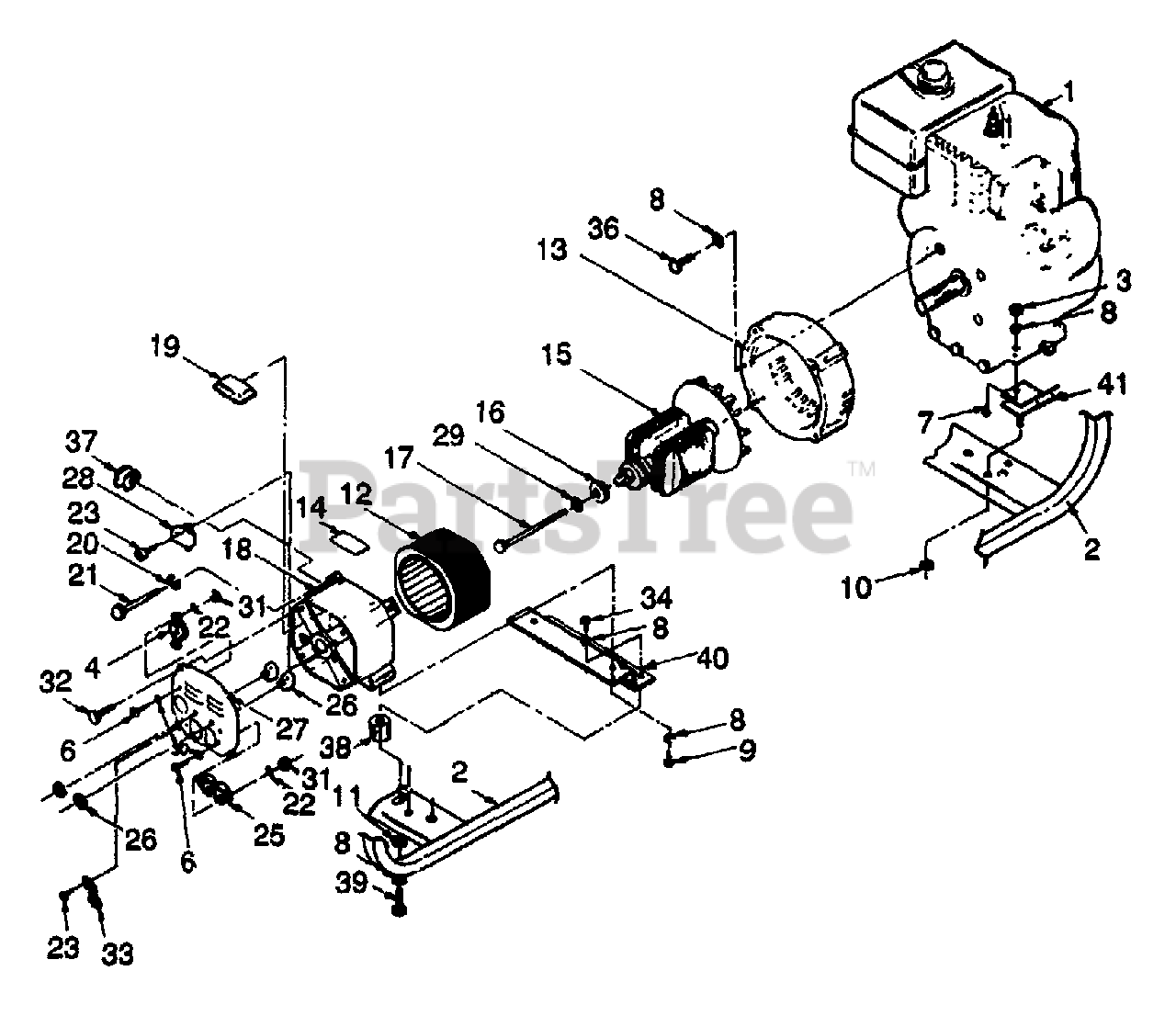

S4001 Generator Parts Diagram

  • Title

1

Briggs & Stratton 76516

Briggs & Stratton engine

$

$

Currently unavailable

2

Briggs & Stratton 75987

Cradle assembly

$

$

Currently unavailable

3

Briggs & Stratton 45771

M8-1.25 hex nut

$

$

Not available

4

Briggs & Stratton 68735

240 volts receptacle

Note: Receptacle is a NEMA 6-20R. Use a NEMA 6-20P mating connector plug.

$

$

Not available

6

Briggs & Stratton 36917

No. 8-32 x 3/8" screw
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 76222

M8-1.25 x 40 screw
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22129

M8 lockwasher
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 39253

M8-1.25 x 20 capscrew
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

10

Briggs & Stratton 52858

M8-1.25 flanged lock nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

11

Briggs & Stratton 22145

5/16" flatwasher

$

$

Not available

12

Briggs & Stratton 74709

Stator assembly

$

$

Currently unavailable

13

Briggs & Stratton 66365G

Engine adapter housing
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

14

UNKNOWN

$

$

Not available

15

Briggs & Stratton 74716

Rotor assembly

$

$

Not available

16

Briggs & Stratton 65791

Ball bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 73067

Rotor bolt

$

$

Currently unavailable

18

Briggs & Stratton 66825

Rear bearing carrier

$

$

Currently unavailable

19

Briggs & Stratton 66850

Bridge rectifier board
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22097

M8 lockwasher
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66449D

Stator bolt

$

$

Currently unavailable

22

Briggs & Stratton 22264

Lockwasher

$

$

Not available

23

Briggs & Stratton 66849

M5-0.80 x 15 screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 68759

120 volts receptacle
(Superseded to 68759GS)

$24.99

$

In Stock, Qty 8

0

26

Briggs & Stratton 66819

20 amp circuit breaker

$

$

Currently unavailable

27

Briggs & Stratton 72098

Receptacle panel

$

$

Not available

28

Briggs & Stratton 66386

Brush holder assembly
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

29

Briggs & Stratton 67451

Special flatwasher

$

$

Currently unavailable

30

Briggs & Stratton 23365

No. 8 serrated lockwasher
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 22471

No. 8-32 hex nut
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 74908

M5-0 80 x 10 screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 25433

Grounding lug

$

$

Not available

34

Briggs & Stratton 36223

5/16"-18 x 1/2" capscrew

$

$

Currently unavailable

36

Briggs & Stratton 22336

5/16"-24 x 2-1/2" screw

$

$

Not available

37

Briggs & Stratton 67022

Bearing carrier grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 44624

Vibration mount

$

$

Not available

39

Briggs & Stratton 30332

5/16"-18 x 3/4" capscrew

$

$

Currently unavailable

40

Briggs & Stratton 73078

Generator support

$

$

Currently unavailable

41

Briggs & Stratton 70642

Vibration mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 2 left!

0
