S4001 (8972-3) - Generac 4,000 Watt Portable Generator Generator Parts Diagram

4,000 Watt Portable Generator

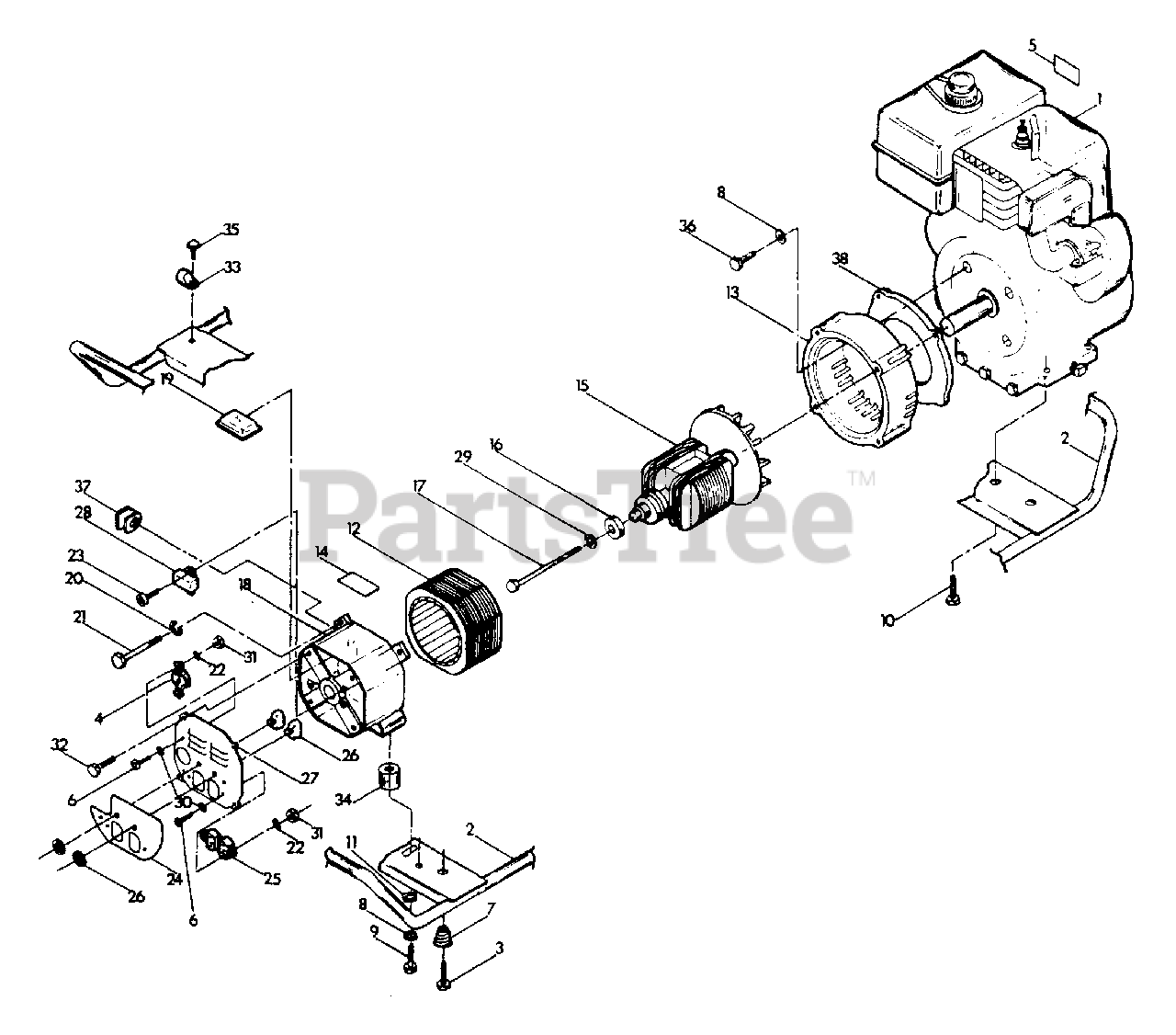

Generator Parts Diagram

  • Title

1

Briggs & Stratton 68701

ENGINE-Briggs & Stratton

$

$

Currently unavailable

2

Briggs & Stratton 74766

CRADLE

$

$

Currently unavailable

3

Briggs & Stratton 24910

SCREW (Taptite) 5/16"-18 x 1/2"

$

$

Not available

4

Briggs & Stratton 68735

RECEPTACLE 240 volts, 20 amp

$

$

Not available

5

Briggs & Stratton 39178

DECAL

$

$

Currently unavailable

6

Briggs & Stratton 36917

SCREW, Pan Head No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23594

MOUNT, Vibration

$

$

Currently unavailable

8

Briggs & Stratton 22129

LOCKWASHER- M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 39287

SCREW, Hex Head Mach M8-1.25 x 45mm
(Superseded to 39287GS)

$3.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 59637

SCREW (Taptite) 3/8"-16 x 3/4"

$

$

Not available

11

Briggs & Stratton 22145

FLATWASHER-5/16"

$

$

Not available

12

Briggs & Stratton 74708

STATOR ASSY

$

$

Currently unavailable

13

Briggs & Stratton 66365D

HOUSING, Engine Adapter
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 72079

DECAL

$

$

Currently unavailable

15

Briggs & Stratton 74715

ROTOR ASSY

$

$

Currently unavailable

16

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 24823

BOLT, Rotor 5/16"-24 x 7.87"
(Superseded to 24823GS)

$18.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 66825

CARRIER, Rear Bearing

$

$

Currently unavailable

19

Briggs & Stratton 66850

BOARD, Circuit (Bridge Rectifier)
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22097

LOCKWASHER-M8
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66449E

BOLT, Stator-M6-1.00 x 115mm

$

$

Currently unavailable

22

Briggs & Stratton 22264

LOCKWASHER-M8

$

$

Not available

23

Briggs & Stratton 66849

SCREW (Taptite) M5-0.80 x 15mm
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 72278

DECAL-Receptacle Panel

$

$

Currently unavailable

25

Briggs & Stratton 68759

RECEPTACLE-120 Volts a-c
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

26

Briggs & Stratton 66819

BREAKER, Circuit-20 amp

$

$

Currently unavailable

27

Briggs & Stratton 72098

PANEL, Receptacle

$

$

Not available

28

Briggs & Stratton 66386

HOLDER ASSY, Brush
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

29

Briggs & Stratton 67451

FLATWASHER (Special)

$

$

Currently unavailable

30

Briggs & Stratton 23365

LOCKWASHER (Serrated) No. 8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 74908

SCREW (Taptite) M5-0.80 x 10mm
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 25433

LUG, Grounding

$

$

Not available

34

Briggs & Stratton 73528

SPACER
(Superseded to 7073528YP)

$38.99

$

In Stock, Qty 20+

0

35

Briggs & Stratton 24489

SCREW (Crimptite) No. 10-24 x 1/2"

$

$

Currently unavailable

36

Briggs & Stratton 23541

SCREW, Hex Head 5/16"-24 x 2-1/2"

$

$

Currently unavailable

37

Briggs & Stratton 67022

GROMMET, Bearing Carrier
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 68342

SPACER, Engine

$

$

Currently unavailable
