S4000 (9676-0) - Generac 4,000 Watt Portable Generator B&S 8 H.P. Engine S4000 AC Generator - No. 69140 Parts Diagram

4,000 Watt Portable Generator

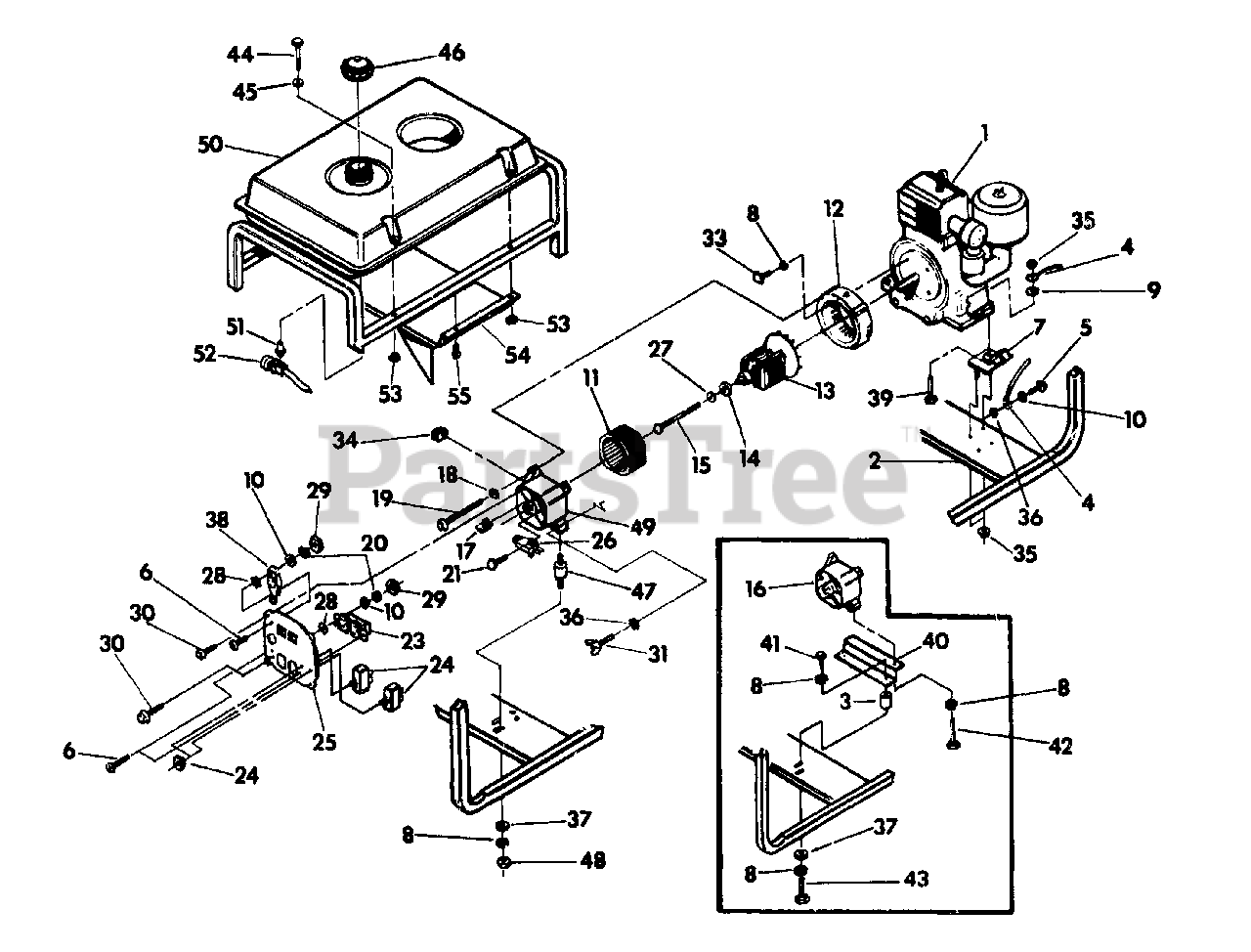

B&S 8 H.P. Engine S4000 AC Generator - No. 69140 Parts Diagram

  • Title

1

Briggs & Stratton 78266

Briggs & Stratton 8 H.P. Engine

$

$

Currently unavailable

2

Briggs & Stratton 77840

Cradle Assembly

$

$

Not available

3

Briggs & Stratton 44624

Vibration Mount

$

$

Not available

4

Briggs & Stratton 10953621

Ground Wire

$

$

Currently unavailable

5

Briggs & Stratton 24911

No. 8 x 3/8" Taptite Screw
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 75475

M4-0.7 x 10mm Pan Head Machine Screw

$

$

Not available

7

Briggs & Stratton 70642

Vibration Mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 27482

5/16" Shakeproof Washer
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 38150

No. 8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 77259

Stator Assembly

$

$

Currently unavailable

12

Briggs & Stratton 66365G

Engine Adaptor Housing
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 74715

Rotor Assembly

$

$

Currently unavailable

14

Briggs & Stratton 65791

Ball Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 24823

5/16"-24 x 7-7/8" Rotor Bolt
(Superseded to 24823GS)

$18.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66825

Rear Bearing Carrier

$

$

Currently unavailable

17

Briggs & Stratton 66850

Bridge Rectifier Circuit Board
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 66449E

M6-1.0 x 115mm Stator Bolt

$

$

Currently unavailable

20

Briggs & Stratton 22264

No. 8 Lock Washer

$

$

Not available

21

Briggs & Stratton 66849

M5-0.8 x 15mm Taptite Screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 68759

120 volts AC, 20 amp Receptacle
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 77247

20 amp Circuit Breaker
(Superseded to 77247GS)

$10.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 72098

Control Panel Sheet Metal

$

$

Not available

26

Briggs & Stratton 66386

Brusher Holder Assembly
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

27

Briggs & Stratton 67451

Flat Washer (special)

$

$

Currently unavailable

28

Briggs & Stratton 23365

No. 8 Lock Washer (serrated)
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

M5-0.8 x 10mm Taptite Screw
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 86494

M6-1.0 x 16mm Wing Screw
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 22336

5/16"-24 x 3/4" Hex Head Screw

$

$

Not available

34

Briggs & Stratton 67022

Bearing Carrier Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 52858

M8-1.25 Hex Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 26850

M6 (1/4") Shakeproof Washer

$

$

Not available

37

Briggs & Stratton 22145

M8 Flat Washer

$

$

Not available

38

Briggs & Stratton 68735

240 volts, 20 amp Outlet

$

$

Not available

39

Briggs & Stratton 76222

M8 x 40mm Pan Head Screw
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 73078

Alternator Support

$

$

Currently unavailable

41

Briggs & Stratton 36223

5/16-18 x 1/2" Hex Head Screw

$

$

Currently unavailable

42

Briggs & Stratton 39253

M8-1.25 x 20mm Hex Head Screw
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

43

Briggs & Stratton 30332

5/16-18 x 3/4" Hex Head Screw

$

$

Currently unavailable

44

Briggs & Stratton 78831

M6-1.0 x 55mm Hex Head Screw

$

$

Currently unavailable

45

Briggs & Stratton 78830

Special Black Washer
(Superseded to 78830GS)

$1.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 78824

Fuel Tank Cap

$

$

Currently unavailable

47

Briggs & Stratton 82857

Vibration Mount
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 25244

5/16-18 Hex Nut
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 66825A

Rear Bearing Carrier

$

$

Currently unavailable

50

Briggs & Stratton 77374

Fuel Tank

$

$

Currently unavailable

51

Briggs & Stratton 78299

Plastic Tank Bushing
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 78298

Plastic Tank Valve
(Superseded to 7078298YP)

$192.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 77395

M6 Hex Lock Nut
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 78951A

Heat Shield

$

$

Currently unavailable

55

Briggs & Stratton 56892

No.-10-24 x 3/8" Crimptite Screw
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0
