S4000 (9420-0) - Generac 4,000 Watt Portable Generator Generator Parts Diagram

4,000 Watt Portable Generator

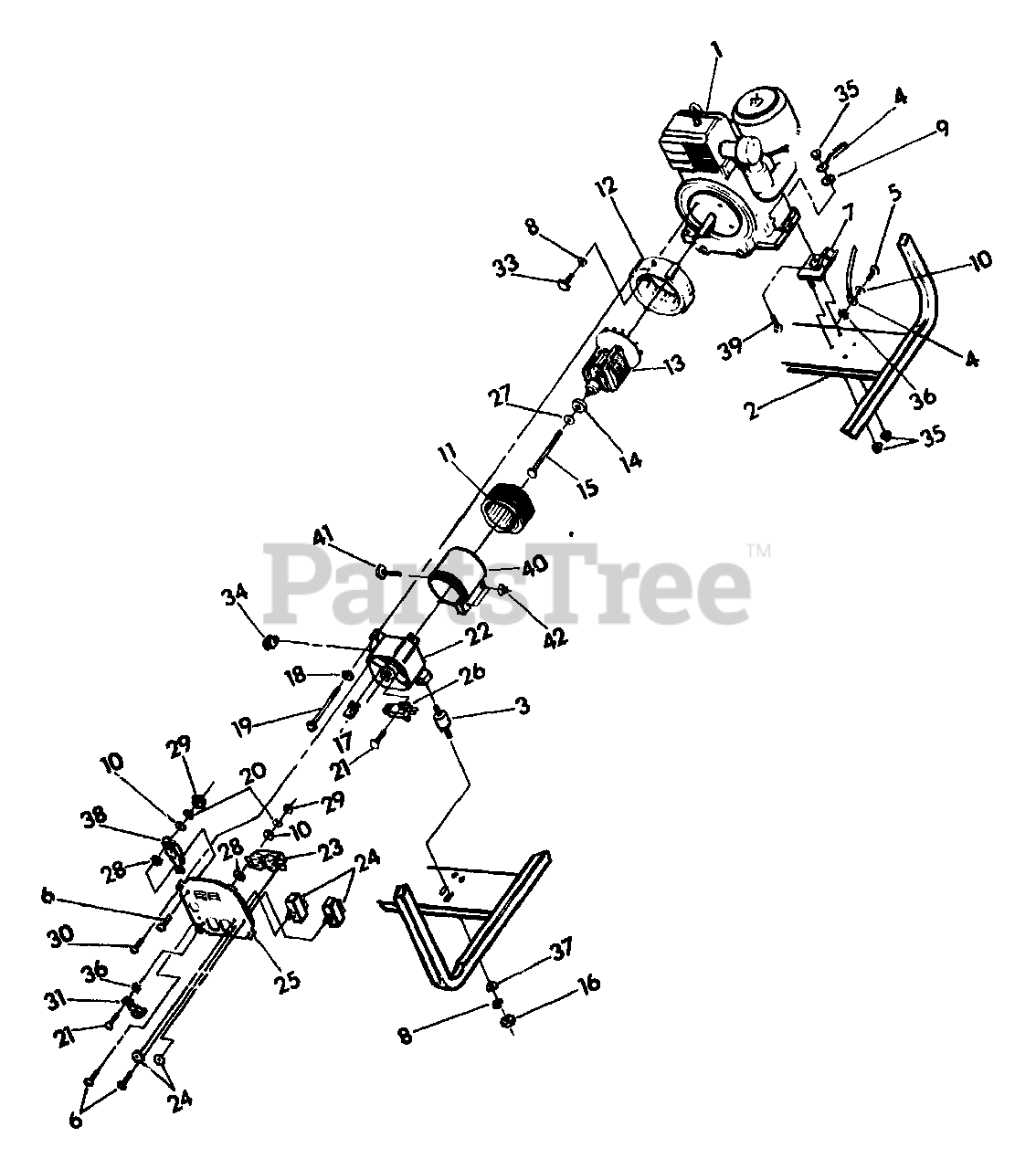

Generator Parts Diagram

  • Title

1

Briggs & Stratton 76516

Briggs & Stratton 8 H.P. Engine

$

$

Currently unavailable

2

Briggs & Stratton 75987

Cradle Assembly

$

$

Currently unavailable

3

Briggs & Stratton 82857

Vibration Mount
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 10953621

Ground Wire

$

$

Currently unavailable

5

Briggs & Stratton 24911

No. 8-3/8" Taptite Screw
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 75475

M4-0.7 x 10mm Pan Head Machine Screw

$

$

Not available

7

Briggs & Stratton 70642

Vibration Mount
(Superseded to 70642GS)

$31.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 22129

M8 Lock Washer
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 27482

5/16" Shakeproof Washer
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 38150

No. 8 Flat Washer
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 82337

Stator Assembly

$

$

Currently unavailable

12

Briggs & Stratton 66365G

Engine Adaptor Housing
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 74715

Rotor Assembly

$

$

Currently unavailable

14

Briggs & Stratton 65791

Ball Bearing
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 24823

5/16"-24 x 7-7/8" Rotor Bolt
(Superseded to 24823GS)

$18.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 25244

5/16-18" Hex Nut
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 66850

Bridge Rectifier Circuit Board
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 66449E

M6-1.0 x 115mm Stator Bolt

$

$

Currently unavailable

20

Briggs & Stratton 22264

No. 8 Lock Washer

$

$

Not available

21

Briggs & Stratton 66849

M5-0.8 x 15mm Taptite Screw
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 66825A

Rear Bearing Carrier

$

$

Currently unavailable

23

Briggs & Stratton 63025

120 volts, 15 amp Receptacle
(Superseded to 63025GS)

$12.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 66848

15 amp Circuit Breaker
(Superseded to 66848GS)

$25.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 72098

Control Panel Sheet Metal

$

$

Not available

26

Briggs & Stratton 66386

Brush Holder Assembly
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

27

Briggs & Stratton 67451

Flat Washer (special)

$

$

Currently unavailable

28

Briggs & Stratton 23365

No. 8 Lock Washer (serrated)
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 51715

M4-0.7 Hex Nut
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

M5-0.8 x 10mm Screw (Taptite)
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 25433

Grounding Lug

$

$

Not available

33

Briggs & Stratton 22336

5/16"-24 x 3/4" Hex Head Screw

$

$

Not available

34

Briggs & Stratton 67022

Bearing Carrier Grommet
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 52858

M8-1.25 Hex Nut
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 22769

No. 10 Shakeproof Washer
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 22145

M8 Flat Washer

$

$

Not available

38

Briggs & Stratton 58889

240 volt, 15 amp Outlet

$

$

Not available

39

Briggs & Stratton 76222

M8 x 40mm Pan Head Screw
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 81887B

Alternator Wrapper

$

$

Not available

41

Briggs & Stratton 52618

M5-0.8 x 12mm Capscrew
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 52856

M5-0.8 Locking Nut
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0
