S4000 (8971-2) - Generac 4,000 Watt Portable Generator Generator And Stator Assembly (10/95) Parts Diagram

4,000 Watt Portable Generator

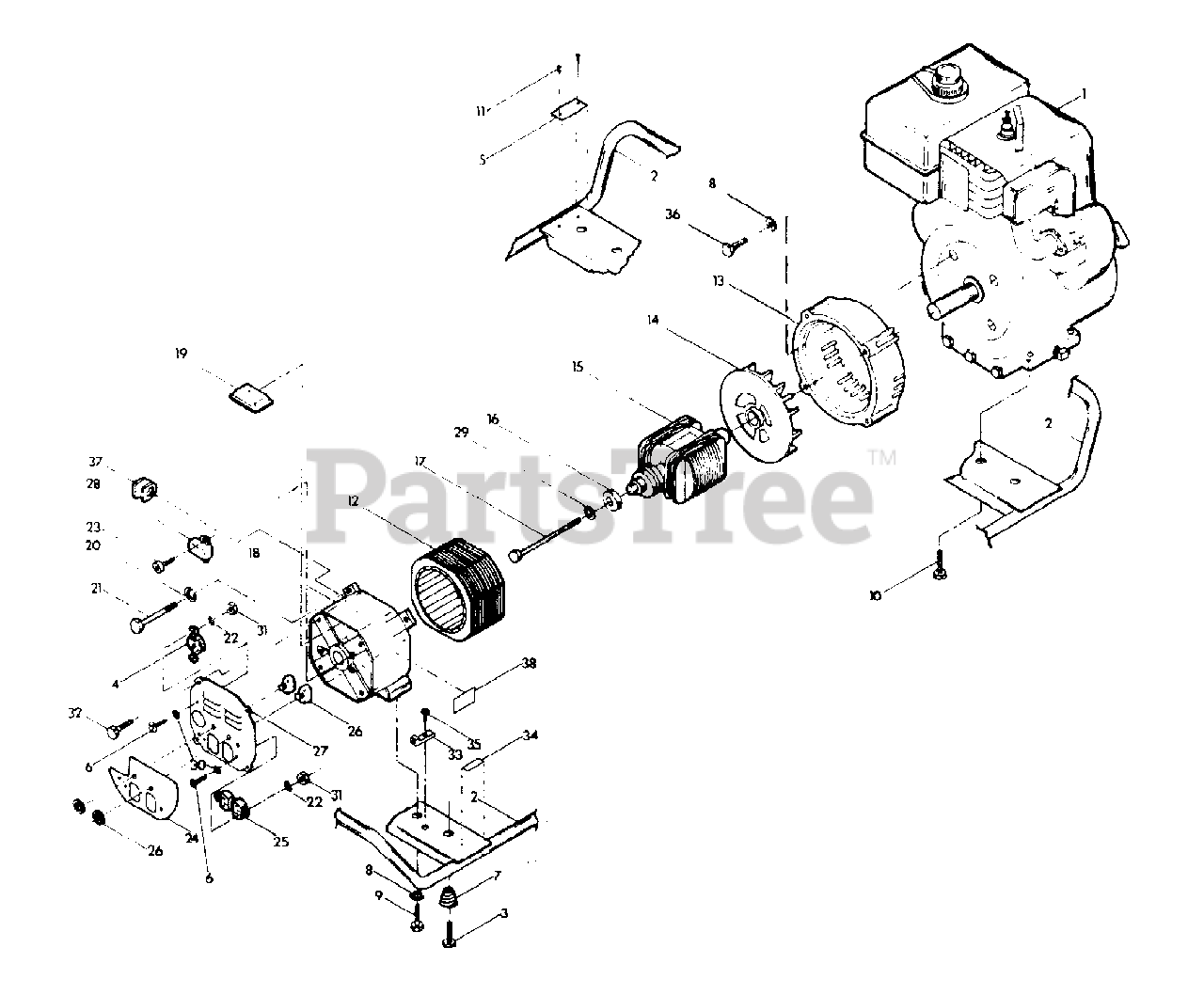

Generator And Stator Assembly (10/95) Parts Diagram

  • Title

1

Briggs & Stratton 69649

ENGINE - Tecumseh HM80

$

$

Currently unavailable

2

Briggs & Stratton 72291

CRADLE

$

$

Currently unavailable

3

Briggs & Stratton 24910

SCREW (Taptite) - 5/16" - 18 x 1/2"

$

$

Not available

4

Briggs & Stratton 68735

RECEPTACLE - 240 volts, 20 amp

$

$

Not available

5

Briggs & Stratton 67430H

PLATE, Serial

$

$

Currently unavailable

6

Briggs & Stratton 36917

SCREW, Pan Head - No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23594

MOUNT, Vibration

$

$

Currently unavailable

8

Briggs & Stratton 22129

WASHER, Lock - M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 39253

SCREW, Hex Head Machine - M8-1.25 x 20mm
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

10

Briggs & Stratton 59637

SCREW (Taptite) - 3/8" - 16 x 3/4"

$

$

Not available

11

Briggs & Stratton 36261

RIVET - Stainless Steel

$

$

Not available

12

Briggs & Stratton 70421

STATOR

$

$

Not available

13

Briggs & Stratton 66365D

HOUSING, Engine Adapter
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 66389

FAN, Cooling

$

$

Not available

15

Briggs & Stratton 72066

ROTOR

$

$

Currently unavailable

16

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 73071

BOLT, Rotor - 5/16" - 24 x 8"
(Superseded to 73071GS)

$8.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 66825

CARRIER, Rear Bearing

$

$

Currently unavailable

19

Briggs & Stratton 66850

BOARD, Circuit - Bridge Rectifier
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22097

WASHER, Lock - M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 66449D

BOLT, Stator - M6-1.00 x 130mm

$

$

Currently unavailable

22

Briggs & Stratton 22264

WASHER, Lock - No. 8

$

$

Not available

23

Briggs & Stratton 66849

SCREW (Taptite) - M5-0.80 x 15mm
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 72288

DECAL - Receptacle Panel

$

$

Currently unavailable

25

Briggs & Stratton 69759

RECEPTACLE - 120 volts a-c

$

$

Currently unavailable

26

Briggs & Stratton 66819

BREAKER, Circuit - 20 amp

$

$

Currently unavailable

27

Briggs & Stratton 72098

PANEL, Receptacle

$

$

Not available

28

Briggs & Stratton 66386

BRUSH
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

29

Briggs & Stratton 67451

WASHER, Flat

Note: (Special)

$

$

Currently unavailable

30

Briggs & Stratton 23365

WASHER, Serrated - No. 8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 66849B

SCREW (Taptite) - M5-0.80 x 8mm
(Superseded to 66849BGS)

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 25433

LUG, Grounding

$

$

Not available

34

Briggs & Stratton 67210A

DECAL - Ground
(Superseded to 67210AGS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 56893

SCREW (Taptite) - No. 10-24 x 1/2"
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

36

Briggs & Stratton 22336

SCREW, Hex Head - 5/16" - 24 x 3/4"

$

$

Not available

37

Briggs & Stratton 67022

GROMMET, Bearing Carrier
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 72296B

DECAL - Data

$

$

Currently unavailable

38

Briggs & Stratton 73072

MANUAL, Owner's

Note: Not Shown

$

$

Not available
