S27SS (1696842-00) (41ADZ24C707) - Snapper Straight Shaft String Trimmer Engine Group Parts Diagram

Straight Shaft String Trimmer

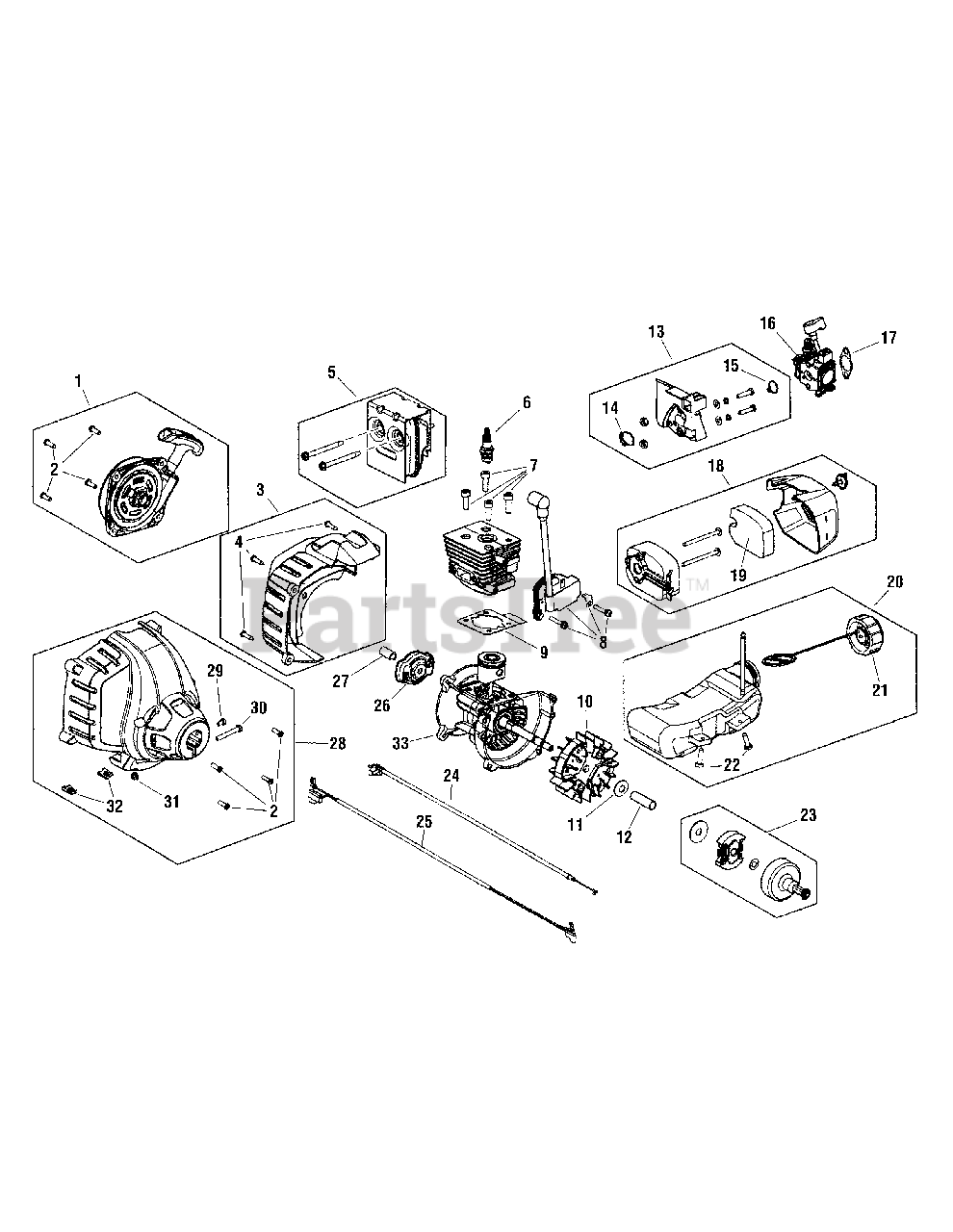

Engine Group Parts Diagram

  • Title

1

Snapper 771522

ASSEMBLY, Starter

Note: (Includes 2)

$29.99

$

In Stock, Qty 6

0

2

Snapper 771523

SCREW, Starter

$5.99

$

Usually ships in 2-12 days

0

3

Snapper 771524

COVER, Rear Engine

Note: (Includes 4)

$15.99

$

Usually ships in 2-12 days

0

4

Snapper 771525

SCREW, Cover

$6.99

$

Usually ships in 2-12 days

0

5

Snapper 705649

Muffler Assembly

$37.99

$

Usually ships in 2-12 days

0

6

Snapper 705647

Spark Plug

$5.49

$

In Stock, only 1 left!

0

7

Snapper 771526

BOLT, Cylinder

$10.99

$

Usually ships in 2-12 days

0

8

Snapper 771527

ASSEMBLY, Module

$87.99

$

Usually ships in 2-12 days

0

9

Snapper 771528

GASKET, Cylinder

$5.99

$

Usually ships in 2-12 days

0

10

Snapper 771529

ASSEMBLY, Flywheel

$32.99

$

Usually ships in 2-12 days

0

11

Snapper 771530

WASHER

$6.49

$

In Stock, only 1 left!

0

12

Snapper 771531

SPACER

$6.49

$

In Stock, only 1 left!

0

13

Snapper 705646

Insulator Assembly

Note: (Includes 14 & 15)

$16.99

$

Usually ships in 2-12 days

0

14

Snapper 771532

O-RING, Insulator

$5.99

$

Usually ships in 2-12 days

0

15

Snapper 771533

O-RING, Carburetor

$

$

Currently unavailable

16

Snapper 771571

CARBURETOR

$44.99

$

In Stock, Qty 20+

0

17

Snapper 705648

Carburetor Gasket

$6.49

$

In Stock, Qty 6

0

18

Snapper 771572

ASSEMBLY, Air Cleaner

Note: (Includes 19)

$23.99

$

In Stock, only 1 left!

0

19

Snapper 771534

FILTER, Air Cleaner

$7.49

$

In Stock, only 4 left!

0

20

Snapper 771535

ASSEMBLY, Fuel Tank

Note: (Includes 20 & 21)

$39.99

$

Usually ships in 2-12 days

0

21

Snapper 771536

CAP, Fuel Tank

$22.99

$

Usually ships in 2-12 days

0

22

Snapper 771537

SCREW, Fuel Tank

$12.99

$

Usually ships in 2-12 days

0

23

Snapper 771538

ASSEMBLY, Clutch

$43.99

$

In Stock, only 2 left!

0

24

Snapper 771539

CABLE, Throttle

$7.99

$

Usually ships in 2-12 days

0

25

Snapper 771540

WIRES, Lead

$14.99

$

Usually ships in 2-12 days

0

26

Snapper 771541

ASSEMBLY, Pawl

$14.99

$

Usually ships in 2-12 days

0

27

Snapper 771542

ADAPTER

$7.99

$

Usually ships in 2-12 days

0

28

Snapper 771543

ASSEMBLY, Clutch Cover

Note: (Included 2, 29 - 32)

$25.99

$

Usually ships in 2-12 days

0

29

Snapper 771890

SCREW, Anti-Rotation

$7.99

$

In Stock, only 2 left!

0

30

Snapper 771544

SCREW, Clamp

$16.99

$

Usually ships in 2-12 days

0

31

Snapper 771545

NUT, Clamp

$6.99

$

Usually ships in 2-12 days

0

32

Snapper 771546

NUT, U-Shaped

$8.99

$

Usually ships in 2-12 days

0

33

Snapper 771521

ASSEMBLY, Short Block

Note: (Not Shown)(Includeds Crankcase, Cylinder, Piston,5 - 12)

$168.99

$

In Stock, only 1 left!

0
