S27 BV (1696918-00) (41AR2HBC707) - Snapper Handheld Blower Vacuum Engine Group Parts Diagram

Handheld Blower Vacuum

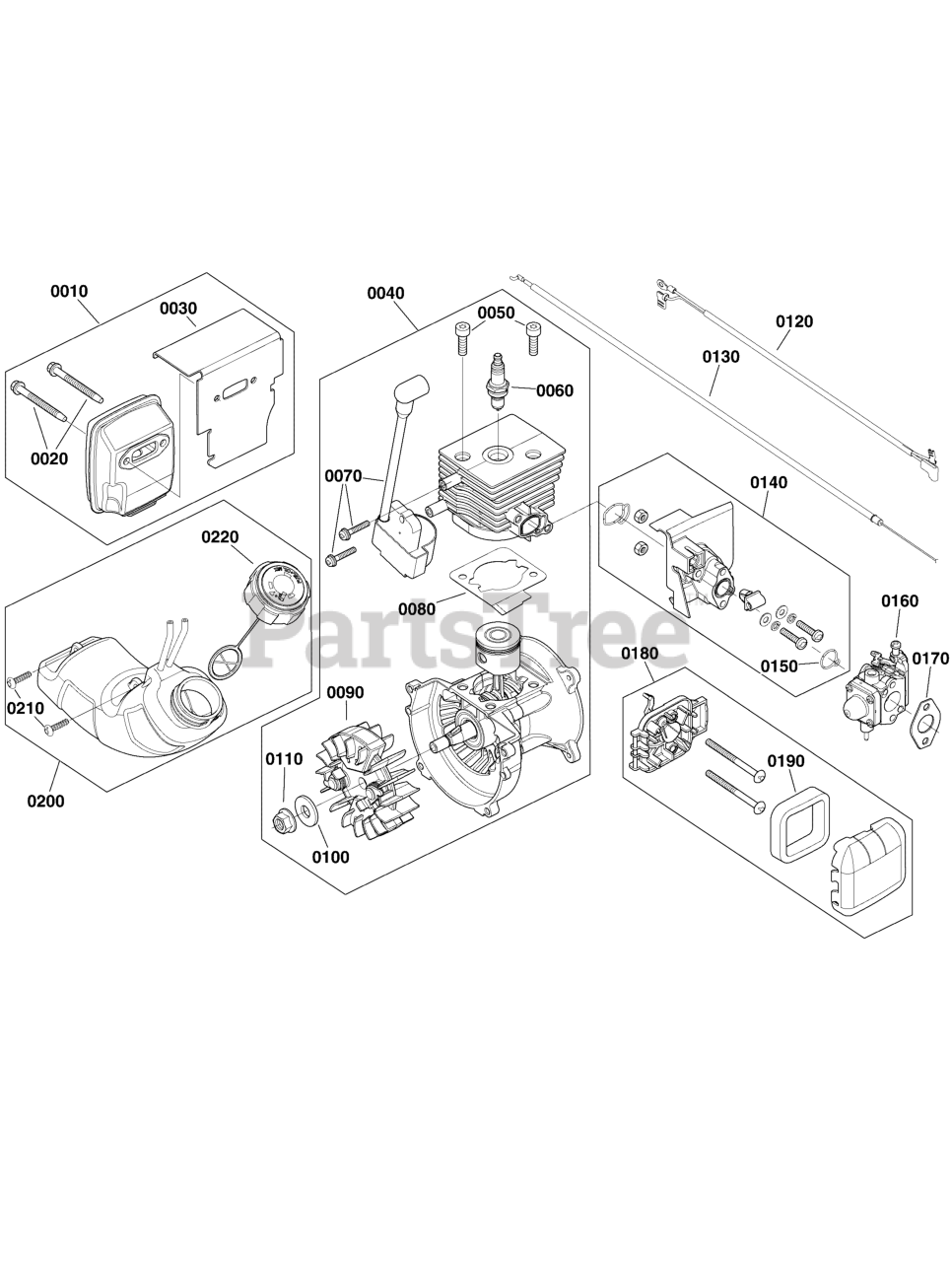

Engine Group Parts Diagram

  • Title

0010

Snapper 772047

ASSEMBLY, Muffler

Note: (Includes 0020 & 0030)

$72.99

$

Usually ships in 2-12 days

0

0020

Snapper 772048

SCREWS, Muffler

$5.99

$

Usually ships in 2-12 days

0

0030

Snapper 772049

GASKET, Muffler

$18.99

$

Usually ships in 2-12 days

0

0040

Snapper 772050

ASSEMBLY, Shortblock

Note: (Includes 0050 - 0325)

$173.99

$

Usually ships in 2-12 days

0

0050

Snapper 771526

BOLT, Cylinder

$10.99

$

Usually ships in 2-12 days

0

0060

Snapper 705647

Spark Plug

$5.49

$

In Stock, only 1 left!

0

0070

Snapper 705652

Module Assembly

$

$

Not available

0080

Snapper 771528

GASKET, Cylinder

$5.99

$

Usually ships in 2-12 days

0

0090

Snapper 772051

ASSEMBLY, Flywheel

$33.99

$

Usually ships in 2-12 days

0

0100

Snapper 772052

WASHER

$8.49

$

Usually ships in 2-12 days

0

0110

Snapper 772053

NUT

$12.99

$

Usually ships in 2-12 days

0

0120

Snapper 772054

WIRE, Lead

$10.99

$

Usually ships in 2-12 days

0

0130

Snapper 772055

CABLE, Throttle

$14.99

$

Usually ships in 2-12 days

0

0140

Snapper 705646

Insulator Assembly

Note: (Includes 0150)

$16.99

$

Usually ships in 2-12 days

0

0150

Snapper 71533

O-RING, Insulator

$4.99

$

Usually ships in 2-12 days

0

0160

Snapper 772056

ASSEMBLY, Carburetor

Note: (Includes 0170)

$60.99

$

Usually ships in 2-12 days

0

0170

Snapper 705648

Carburetor Gasket

$6.49

$

In Stock, Qty 6

0

0180

Snapper 705642

Air Cleaner Assembly

Note: (Includes 0190)

$35.99

$

In Stock, only 3 left!

0

0190

Snapper 705654

Air Filter

$6.99

$

In Stock, Qty 8

0

0200

Snapper 772057

ASSEMBLY, Fuel Tank

Note: (Includes 0210 & 0220)

$

$

Currently unavailable

0210

Snapper 772058

SCREW

$

$

Currently unavailable

0220

Snapper 705655

Fuel Cap

$21.99

$

In Stock, only 1 left!

0
