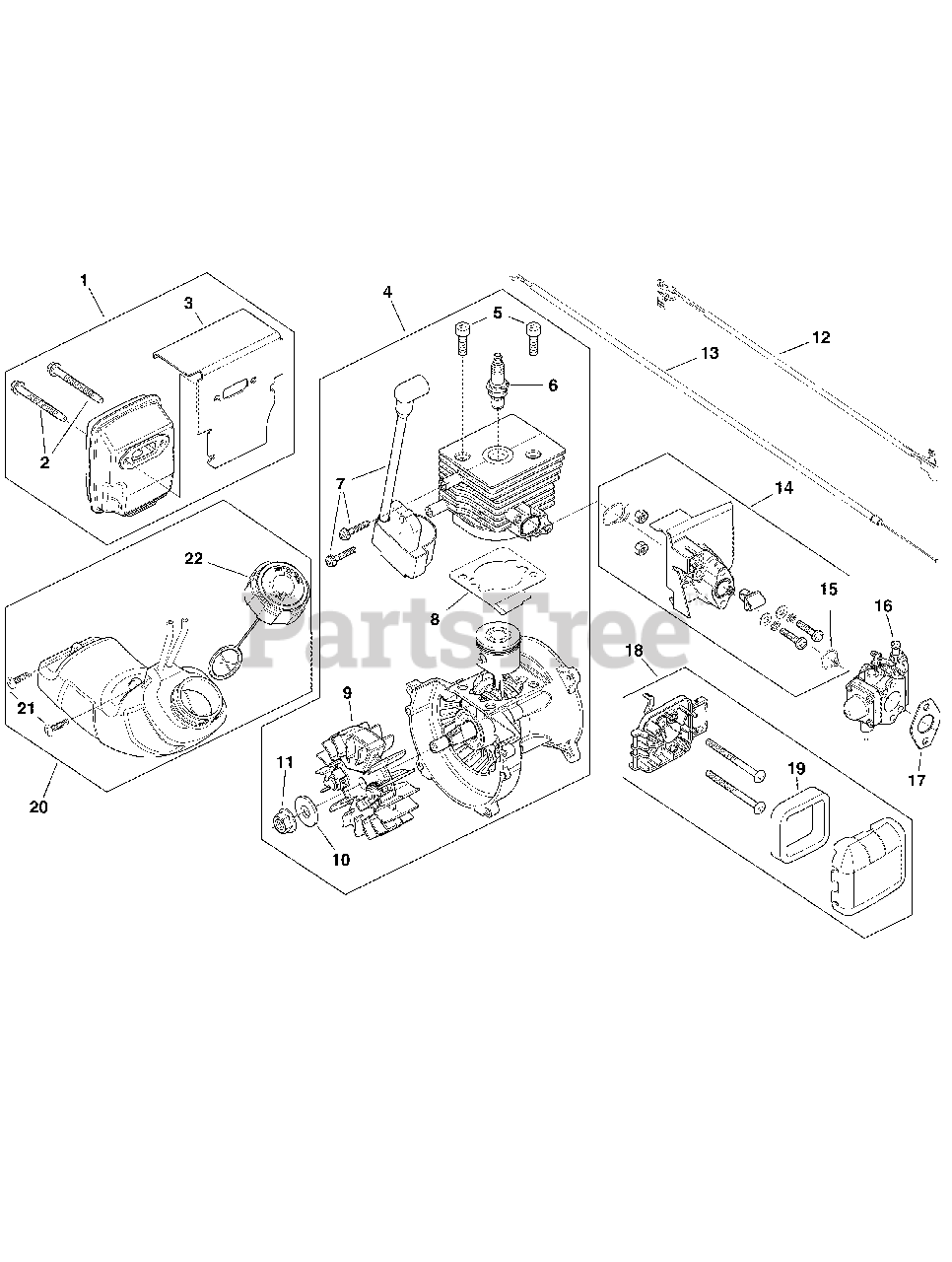

S27 BV (1696843-00) (41AR2HBC707) - Snapper Handheld Blower Vacuum Engine Group Parts Diagram

Handheld Blower Vacuum

Engine Group Parts Diagram

  • Title

1

Snapper 772047

ASSEMBLY, Muffler

$72.99

$

Usually ships in 2-12 days

0

2

Snapper 772048

SCREWS, Muffler

$5.99

$

Usually ships in 2-12 days

0

3

Snapper 772049

GASKET, Muffler

$18.99

$

Usually ships in 2-12 days

0

4

Snapper 772050

ASSEMBLY, Shortblock

$173.99

$

Usually ships in 2-12 days

0

5

Snapper 771526

BOLT, Cylinder

$10.99

$

Usually ships in 2-12 days

0

6

Snapper 705647

Spark Plug

$5.49

$

In Stock, only 1 left!

0

7

Snapper 705652

Module Assembly

$

$

Not available

8

Snapper 771528

GASKET, Cylinder

$5.99

$

Usually ships in 2-12 days

0

9

Snapper 772051

ASSEMBLY, Flywheel

$33.99

$

Usually ships in 2-12 days

0

10

Snapper 772052

WASHER

$8.49

$

Usually ships in 2-12 days

0

11

Snapper 772053

NUT

$12.99

$

Usually ships in 2-12 days

0

12

Snapper 772054

WIRE, Lead

$10.99

$

Usually ships in 2-12 days

0

13

Snapper 772055

CABLE, Throttle

$14.99

$

Usually ships in 2-12 days

0

14

Snapper 705646

Insulator Assembly

$16.99

$

Usually ships in 2-12 days

0

15

Snapper 71533

O-RING, Insulator

$4.99

$

Usually ships in 2-12 days

0

16

Snapper 772056

ASSEMBLY, Carburetor

$60.99

$

Usually ships in 2-12 days

0

17

Snapper 705648

Carburetor Gasket

$6.49

$

In Stock, Qty 6

0

18

Snapper 705642

Air Cleaner Assembly

$35.99

$

In Stock, only 3 left!

0

19

Snapper 705654

Air Filter

$6.99

$

In Stock, Qty 8

0

20

Snapper 772057

ASSEMBLY, Fuel Tank

$

$

Currently unavailable

21

Snapper 772058

SCREW

$

$

Currently unavailable

22

Snapper 705655

Fuel Cap

$21.99

$

In Stock, only 1 left!

0
