S2400 (8840-1) - Generac 2,250 Watt Portable Generator Receptacle Panel Parts Diagram

2,250 Watt Portable Generator

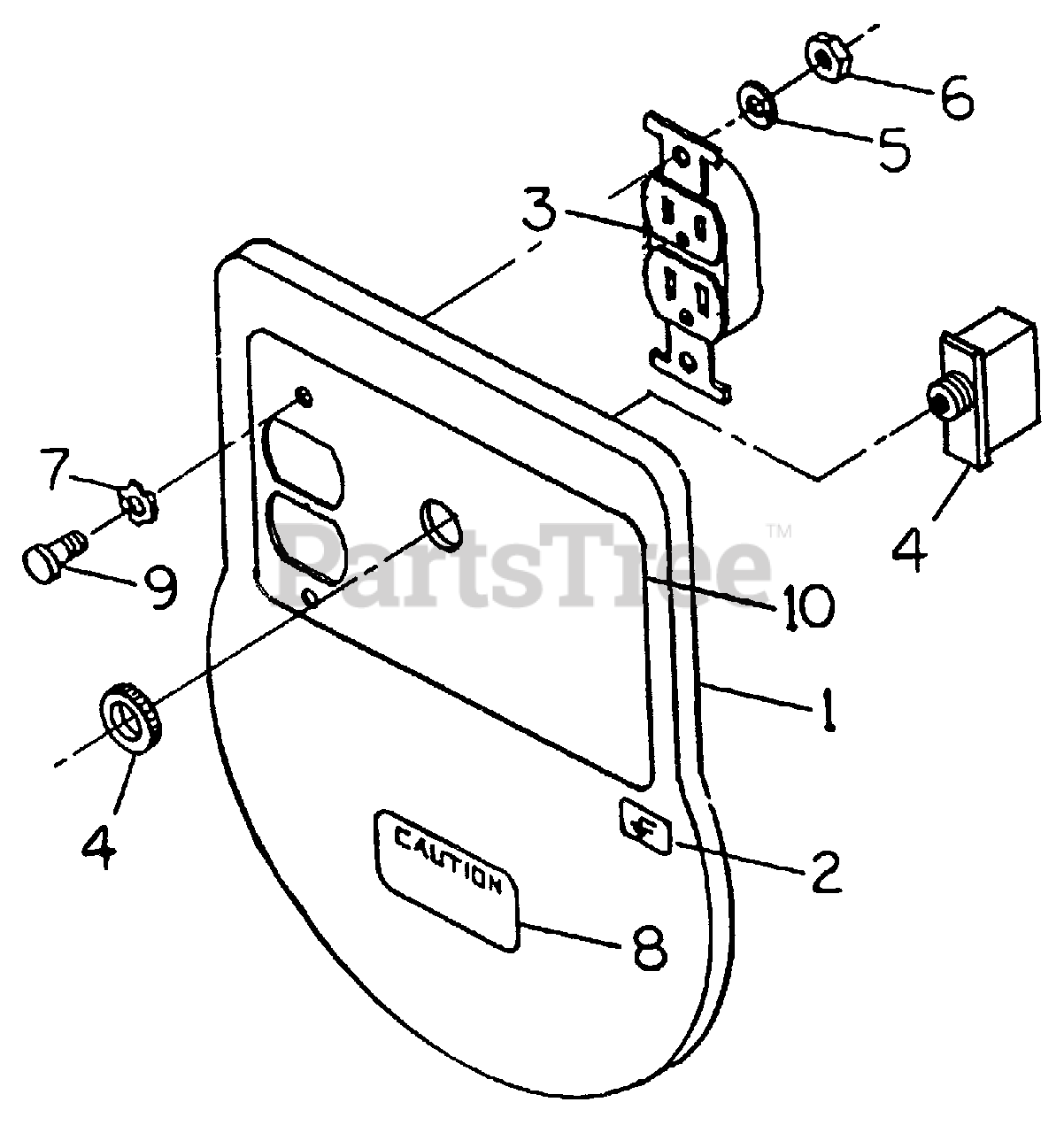

Receptacle Panel Parts Diagram

  • Title

1

Briggs & Stratton 68733

PANEL, Receptacle

$

$

Currently unavailable

2

Briggs & Stratton 67210A

DECAL- Ground
(Superseded to 67210AGS)

$3.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 63025

RECEPTACLE- 120 volts, 15 amp (S1500 Only)
(Superseded to 63025GS)

$12.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 68759

RECEPTACLE- 120 volts, 20 amp (S2400 Only)
(Superseded to 68759GS)

$24.99

$

In Stock, Qty 8

0

4

Briggs & Stratton 66861

BREAKER, Circuit- 12 amp (S1500 Only)

$

$

Currently unavailable

4

Briggs & Stratton 66819

BREAKER, Circuit- 20 amp (S2400 Only)

$

$

Currently unavailable

5

Briggs & Stratton 22264

WASHER, Lock - No. 8

$

$

Not available

6

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 26759

WASHER, Serrated - No. 8

$

$

Currently unavailable

8

Briggs & Stratton 39178

DECAL - Caution!

$

$

Currently unavailable

9

Briggs & Stratton 36917

SCREW, Pan Head Machine- No. 8-32 x 3/8"
(Superseded to 797483)

$4.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 68773A

DECAL, Receptacle Panel (S1500 Only)

$

$

Currently unavailable

10

Briggs & Stratton 68773B

DECAL, Receptacle Panel (S2400 Only)

$

$

Currently unavailable
