S2400 (8840-1) - Generac 2,250 Watt Portable Generator Cradle Assembly Parts Diagram

2,250 Watt Portable Generator

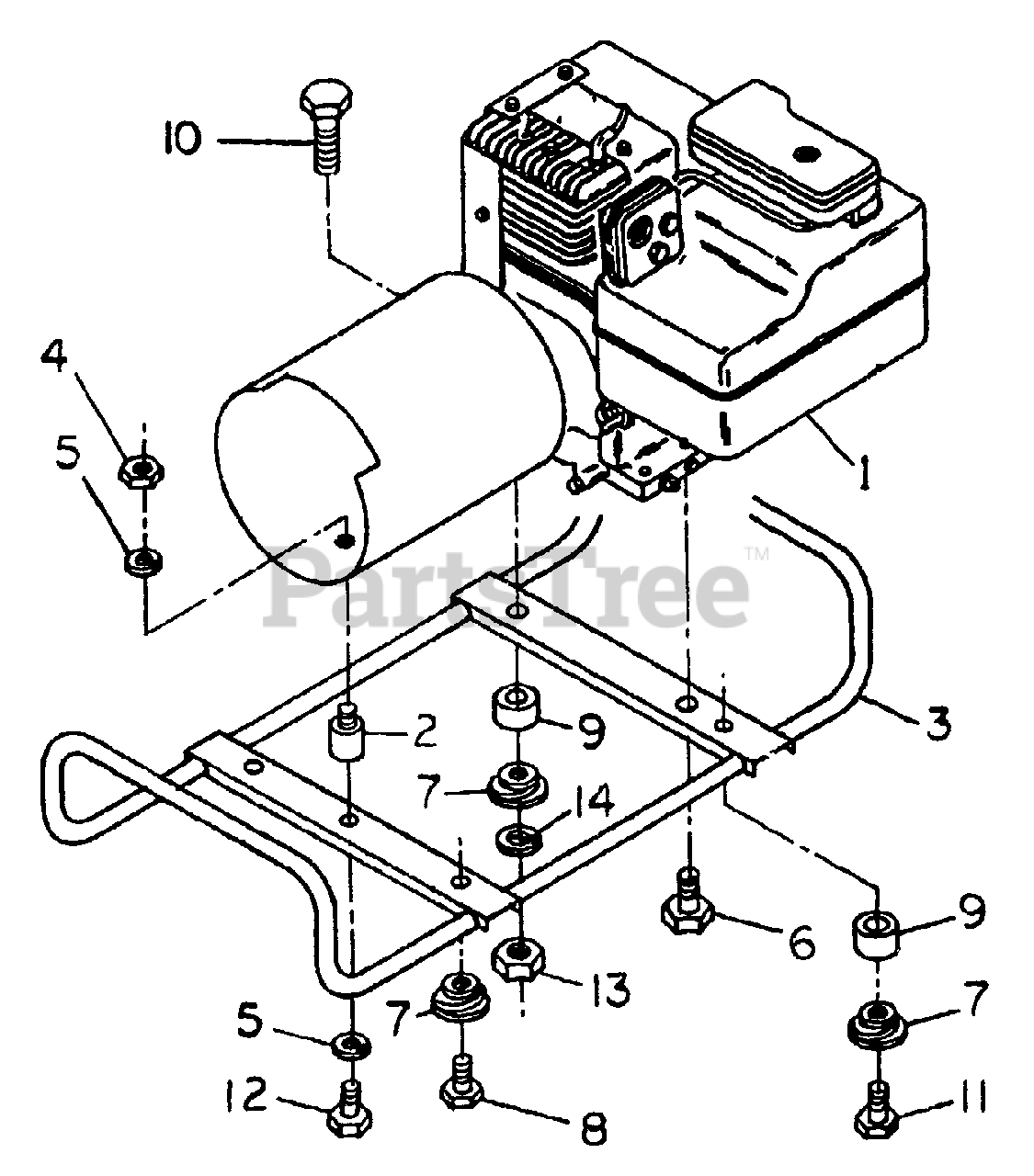

Cradle Assembly Parts Diagram

  • Title

1

Briggs & Stratton 63190

ENGINE- Briggs & Stratton 3 HP (S1500 Only)

$

$

Currently unavailable

1

Briggs & Stratton 68770

ENGINE- Briggs & Stratton 5 HP (S2400 Only)

$

$

Currently unavailable

2

Briggs & Stratton 40479

DAMPENER, Vibration

$

$

Currently unavailable

3

Briggs & Stratton 68395D

CRADLE

$

$

Currently unavailable

4

Briggs & Stratton 22127

NUT, Hex - 1/4"-20

$

$

Not available

5

Briggs & Stratton 22097

WASHER, Lock - 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 59637

SCREW (Taptite) - 3/8"-16 x 3/4"

$

$

Not available

7

Briggs & Stratton 23594

SPRING (Plain)

$

$

Currently unavailable

8

Briggs & Stratton 24910

SCREW (Taptite) - 5/16"-18 x 1/2"

$

$

Not available

9

Briggs & Stratton 22550J

SPACER- 1/2" long

$

$

Currently unavailable

10

Briggs & Stratton 23734

SCREW - 5/16"-18 x 2-1/4"

$1.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 24490

SCREW (Taptite) - 5/16"-18 x 1"

$

$

Currently unavailable

12

Briggs & Stratton 36949

SCREW- 1/4"-20 x 3/8"

$

$

Currently unavailable

13

Briggs & Stratton 22259

NUT, Hex - 5/16"-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0
