S2-12B502 (212-5 SB) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) SEAT ASSEMBLY Parts Diagram

Lawn Tractor

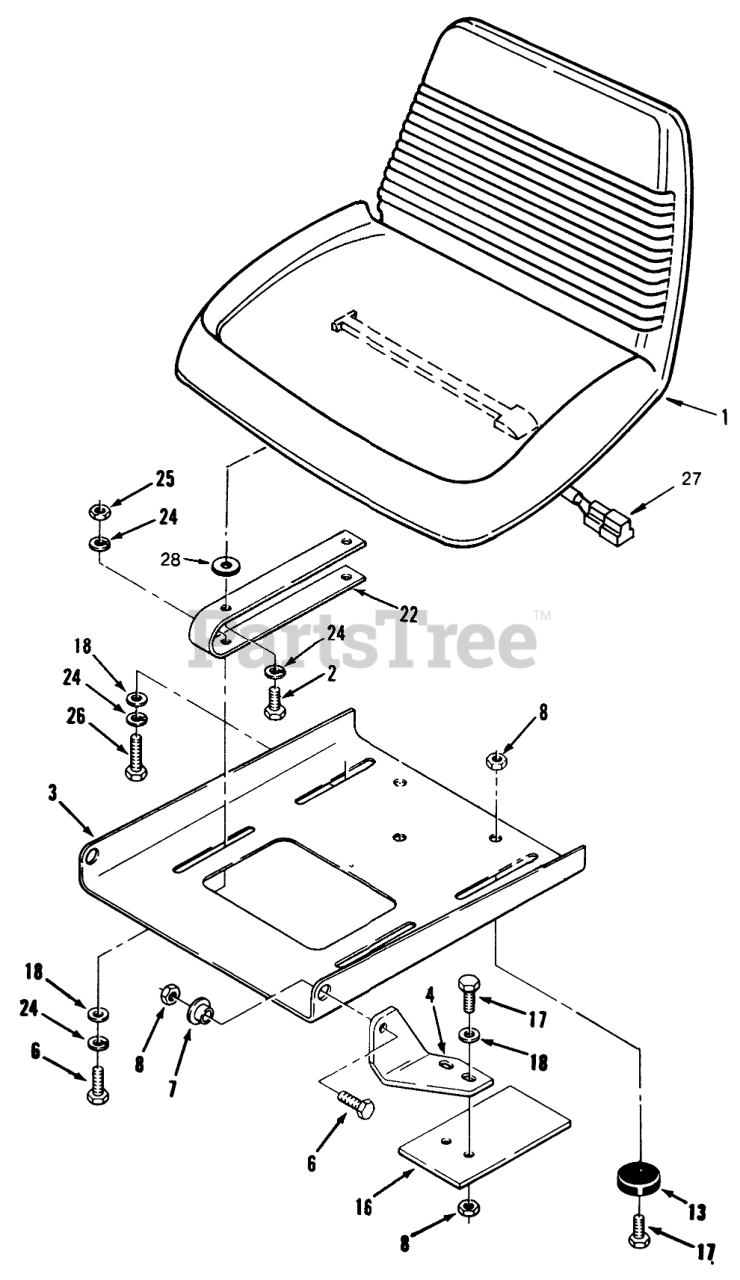

SEAT ASSEMBLY Parts Diagram

  • Title

1

Toro 79-0670

SEAT V-510

$

$

Not available

2

Toro 908019

Bolt
(Superseded to 322-5)

$0.99

$

In Stock, Qty 20+

0

3

Toro 116052

PLATE-SEAT PIVOT B

$

$

Not available

4

Toro 112745

BRACKET-PIVOT L.H B

$

$

Not available

Toro 112744

Bracket-Pivot RH

$

$

Not available

6

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

7

Toro 105503

BUSHING

$1.49

$

In Stock, Qty 7

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 108889

BUMPER

$24.99

$

Usually ships in 3-6 days

0

16

Toro 112961

PLATE R

$

$

Not available

17

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

18

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 112837

SPRING-SEAT B

$

$

Not available

24

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

25

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

26

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

27

Toro 38-1420

SWITCH-SEAT

$

$

Not available

28

Toro 109989

SPACER-NYLON

$5.49

$

In Stock, only 2 left!

0
