S2-12B502 (212-5 SB) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) ENGINE, FUEL & EXHAUST SYSTEMS Parts Diagram

Lawn Tractor

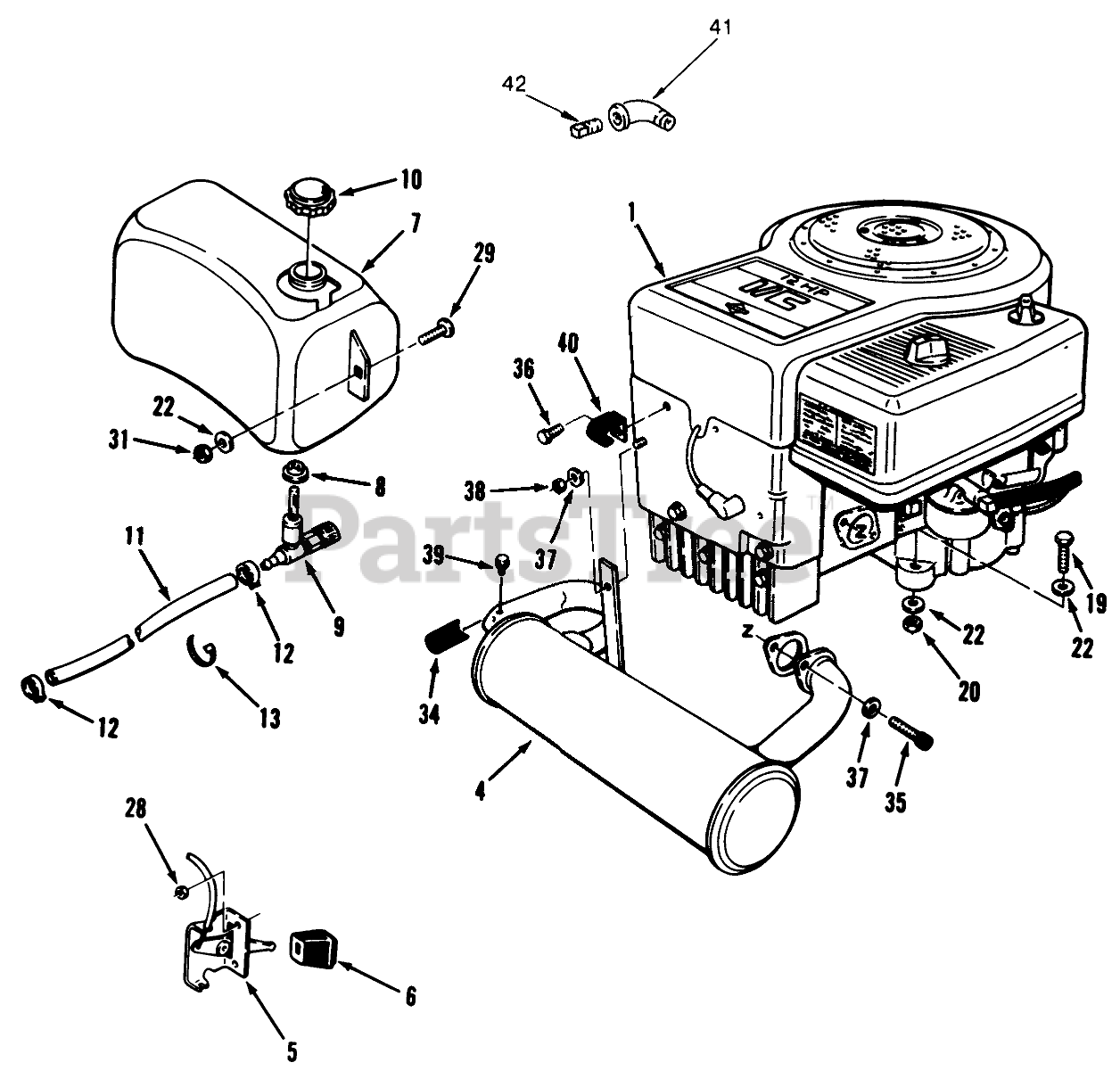

ENGINE, FUEL & EXHAUST SYSTEMS Parts Diagram

  • Title

1

Toro 78-8540

Engine-12 HP-B & S Model 286707, Type 0116-01

$

$

Currently unavailable

4

Toro 116707

EXHAUST-MUFFLER

$

$

Not available

5

Toro 115788

THROTTLE-CONTROL

$

$

Not available

6

Toro 116454

KNOB-CONTROL
(Superseded to 66-0120)

$5.99

$

In Stock, only 2 left!

0

7

Toro 112153

Fuel Tank Assembly (Incl. Ref. #8 & 9)

$

$

Not available

8

Toro 104047

BUSHING
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 10

0

9

Toro 104048

VALVE-FUEL

$33.99

$

In Stock, only 1 left!

0

10

Toro 55-3570

GAS CAP ASM

$14.99

$

In Stock, Qty 12

0

11

Toro 112442

Fuel Line

$

$

Not available

12

Toro 108898

Clamp
(Superseded to 950154)

$

$

Not available

13

Toro 100571

PLASTIC TIE

$

$

Not available

19

Toro 322-9

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

20

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

28

Toro 915740

Nut
(Superseded to 3296-2)

$2.49

$

In Stock, Qty 20+

0

29

Toro 900037

Bolt
(Superseded to 3230-1)

$1.99

$

In Stock, Qty 20+

0

31

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

34

Toro 115356

Arrester-Spark
(Superseded to 93-9911)

$45.99

$

Usually ships in 3-6 days

0

35

Toro 911066

SHCS 5/16-18X.625

$2.49

$

Usually ships in 3-6 days

0

36

Toro 908016

Bolt
(Superseded to 322-2)

$2.49

$

In Stock, Qty 13

0

37

Toro 920824

Lock Washer

$

$

Currently unavailable

38

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

39

Toro 911652

BOLT-HEX S.T. #8X1/2

$

$

Not available

40

Toro 111392

J-CLIP

$2.49

$

Usually ships in 3-6 days

0

41

Toro 2811-3

ELBOW

$

$

Not available

42

Toro 943420

Plug
(Superseded to 281-2)

$2.99

$

Usually ships in 3-6 days

0
