S2-12B502 (212-5 SB) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) ENGINE BRIGGS & STRATTON MODEL 286707-0116-01 Parts Diagram

Lawn Tractor

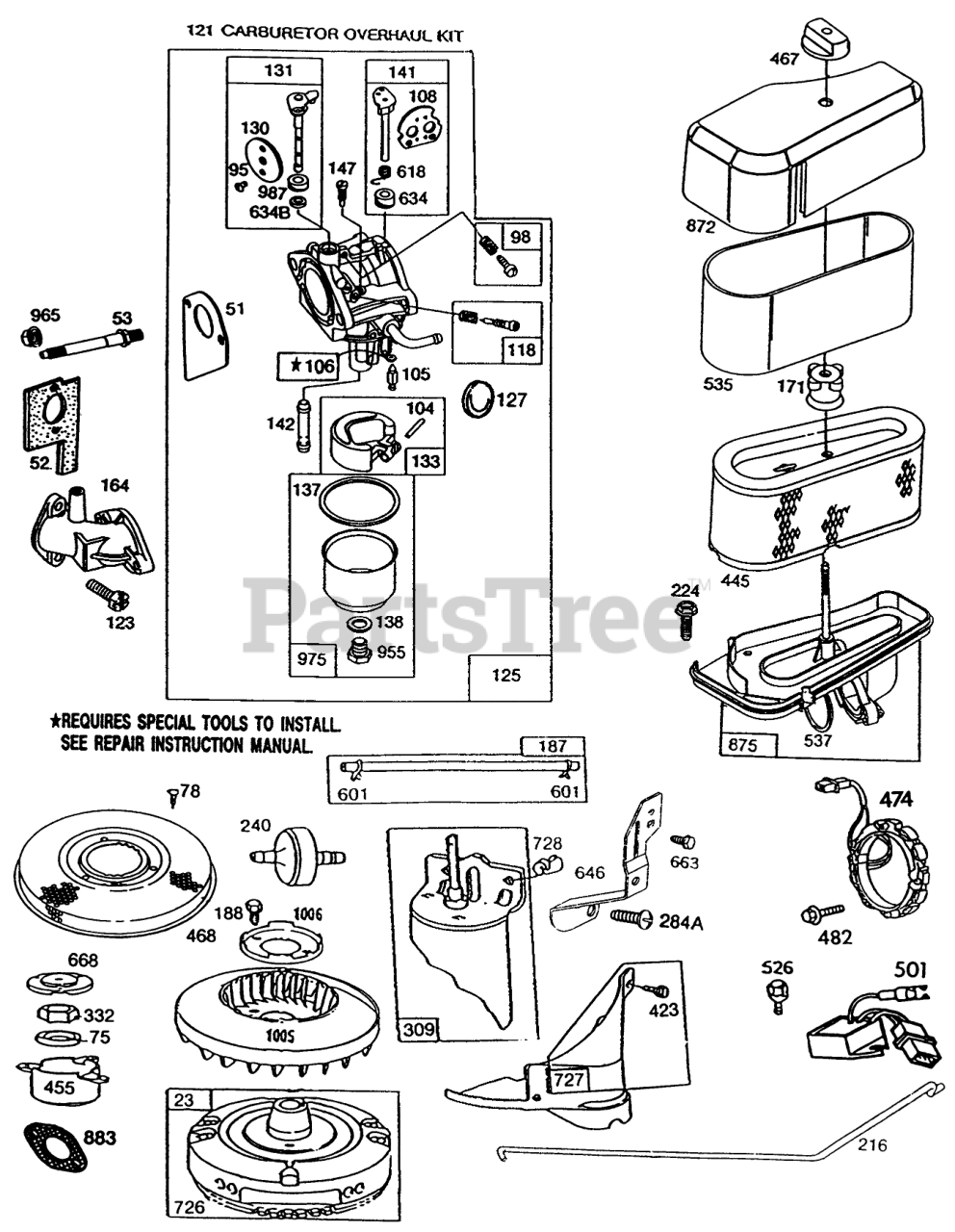

ENGINE BRIGGS & STRATTON MODEL 286707-0116-01 Parts Diagram

  • Title

5

Briggs & Stratton 494240

Head-Cylinder

$110.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 492325

Flywheel and Ring Gear Assembly-Magneto
(Superseded to 595094)

$238.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 272465

Gasket-Intake
(Superseded to 692284)

$4.99

$

In Stock, only 3 left!

0

52

Briggs & Stratton 270872

Gasket-Intake
(Superseded to 498869)

$5.49

$

In Stock, Qty 10

0

53

Briggs & Stratton 94637

Stud-Mounting, Carbureator
(Superseded to 690227)

$7.99

$

In Stock, Qty 6

0

75

Briggs & Stratton 224061

Washer
(Superseded to 690582)

$4.49

$

In Stock, only 3 left!

0

78

Briggs & Stratton 94626

Screw
(Superseded to 691655)

$3.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

Valve-Choke
(Superseded to 691636)

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 494382

Screw-Idle Speed
(Superseded to 398185)

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231789

Pin-Hinge, Float
(Superseded to 690525)

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231790

Valve Assy-Inlet Needle
(Superseded to 494788)

$9.99

$

In Stock, only 2 left!

0

106

Briggs & Stratton 281169

Inlet Valve Seat
(Superseded to 691901)

$8.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 224540

Valve-Choke
(Superseded to 692344)

$8.49

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 494383

Valve-Needle

$13.99

$

In Stock, only 1 left!

0

121

Briggs & Stratton 494384

Carburetor Overhaul Kit
(Superseded to 497535)

$67.99

$

In Stock, only 2 left!

0

123

Briggs & Stratton 94616

Screw-Elbow Mtg
(Superseded to 690953)

$5.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 494502

Carburetor Assembly
(Superseded to 799728)

$

$

Not available

127

Plug-Welch (Sold in Kit Only)

$

$

Not available

130

Briggs & Stratton 224539

Valve-ThroWe
(Superseded to 691750)

$9.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 494379

Throttle Shaft Kit
(Superseded to 790901)

$38.99

$

In Stock, only 1 left!

0

133

Briggs & Stratton 494381

Float-Carburetor

$13.99

$

In Stock, only 4 left!

0

137

Briggs & Stratton 281165

Gasket-Bowl, Float
(Superseded to 281165S)

$4.99

$

Usually ships in 2-12 days

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

$5.49

$

In Stock, Qty 20+

0

141

Briggs & Stratton 494380

Shaft & Lever-Choke
(Superseded to 790902)

$33.99

$

In Stock, only 1 left!

0

142

Briggs & Stratton 494537

Noale-Carburetor
(Superseded to 691425)

$29.99

$

In Stock, only 2 left!

0

147

Briggs & Stratton 231794

Pilot-Jet
(Superseded to 497472)

$22.99

$

Usually ships in 2-12 days

0

164

Briggs & Stratton 213819

Manifold-Intake
(Superseded to 691711)

$

$

Not available

171

Briggs & Stratton 281051

Nut
(Superseded to 692297)

$10.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 393815

Line-Vacuum
(Superseded to 791880)

$11.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 93535

Crew
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

216

Briggs & Stratton 262778

Link-Choke
(Superseded to 690574)

$11.99

$

Usually ships in 2-12 days

0

224

Briggs & Stratton 94513

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

240

Briggs & Stratton 298090

Filter
(Superseded to 298090S)

$

$

Not available

284A

Briggs & Stratton 94326

Screw-Pan Head
(Superseded to 691677)

$3.99

$

In Stock, only 4 left!

0

309

Motor-Starting (12 Volt) See Chart on Illustrated Pages for Replacement Parts for Starting Motors

$

$

Not available

332

Briggs & Stratton 92284

Nut
(Superseded to 690662)

$5.99

$

In Stock, only 1 left!

0

423

Briggs & Stratton 94625

Screw
(Superseded to 691097)

$3.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 493909

Filter-Air
(Superseded to 496894S)

$19.99

$

In Stock, only 3 left!

0

455

Briggs & Stratton 222561

Cup-Flywheel
(Superseded to 691173)

$37.99

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 493903

Knob
(Superseded to 691668)

$5.49

$

In Stock, only 1 left!

0

468

Briggs & Stratton 222562

Screen-Flush Rotating
(Superseded to 691748)

$232.99

$

In Stock, only 1 left!

0

474

Briggs & Stratton 393295

Alternator
(Superseded to 592830)

$101.99

$

In Stock, Qty 20+

0

482

Briggs & Stratton 93621

Screw
(Superseded to 691183)

$3.49

$

Usually ships in 2-12 days

0

501

Briggs & Stratton 394890

Regulator
(Superseded to 845907)

$61.99

$

In Stock, Qty 20+

0

526

Briggs & Stratton 94513

Screw-Sem
(Superseded to 692198)

$5.99

$

In Stock, Qty 11

0

535

Briggs & Stratton 272403

Filter-Air
(Superseded to 272403S)

$3.99

$

In Stock, Qty 18

0

537

Briggs & Stratton 281106

O-Ring
(Superseded to 691917)

$4.49

$

In Stock, Qty 20+

0

601

Briggs & Stratton 93053

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

618

Briggs & Stratton 262803

Spring-Choke

$8.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 281168

Seal-Choke Shaft
(Superseded to 690597)

$6.49

$

Usually ships in 2-12 days

0

634B

Briggs & Stratton 281167

Seal-Throttle Shaft
(Superseded to 692279)

$3.99

$

In Stock, only 3 left!

0

646

Briggs & Stratton 224546

Brace-Air Cleaner

$

$

Not available

663

Briggs & Stratton 94620

Screw
(Superseded to 691693)

$3.99

$

In Stock, Qty 8

0

668

Briggs & Stratton 280848

Spacer
(Superseded to 691323)

$4.99

$

Usually ships in 2-12 days

0

726

Briggs & Stratton 399676

Gear-Ring (Includes Mounting Hardware)
(Superseded to 696537)

$50.99

$

Usually ships in 2-12 days

0

727

Briggs & Stratton 490324

Cover-Starter

$26.99

$

In Stock, only 1 left!

0

728

Briggs & Stratton 94627

Screw
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

872

Briggs & Stratton 281104

Cover-Air Cleaner
(Superseded to 691916)

$

$

Not available

875

Briggs & Stratton 494237

Base-Air Cleaner
(Superseded to 696129)

$

$

Not available

883

Briggs & Stratton 272293

Exhaust Gasket
(Superseded to 692236)

$5.49

$

In Stock, Qty 20+

0

955

Briggs & Stratton 94642

Plug
(Superseded to 691657)

$7.99

$

In Stock, only 1 left!

0

965

Briggs & Stratton 94108

Locknut
(Superseded to 690958)

$3.49

$

In Stock, only 3 left!

0

975

Briggs & Stratton 494378

Bowl-Float
(Superseded to 495933)

$

$

Not available

987

Briggs & Stratton 281166

Seal-Shaft
(Superseded to 691326)

$5.49

$

Usually ships in 2-12 days

0

1005

Briggs & Stratton 280687

Retainer
(Superseded to 691905)

$45.99

$

Usually ships in 2-12 days

0

1006

Briggs & Stratton 223726

Screw
(Superseded to 690452)

$10.99

$

Usually ships in 2-12 days

0
