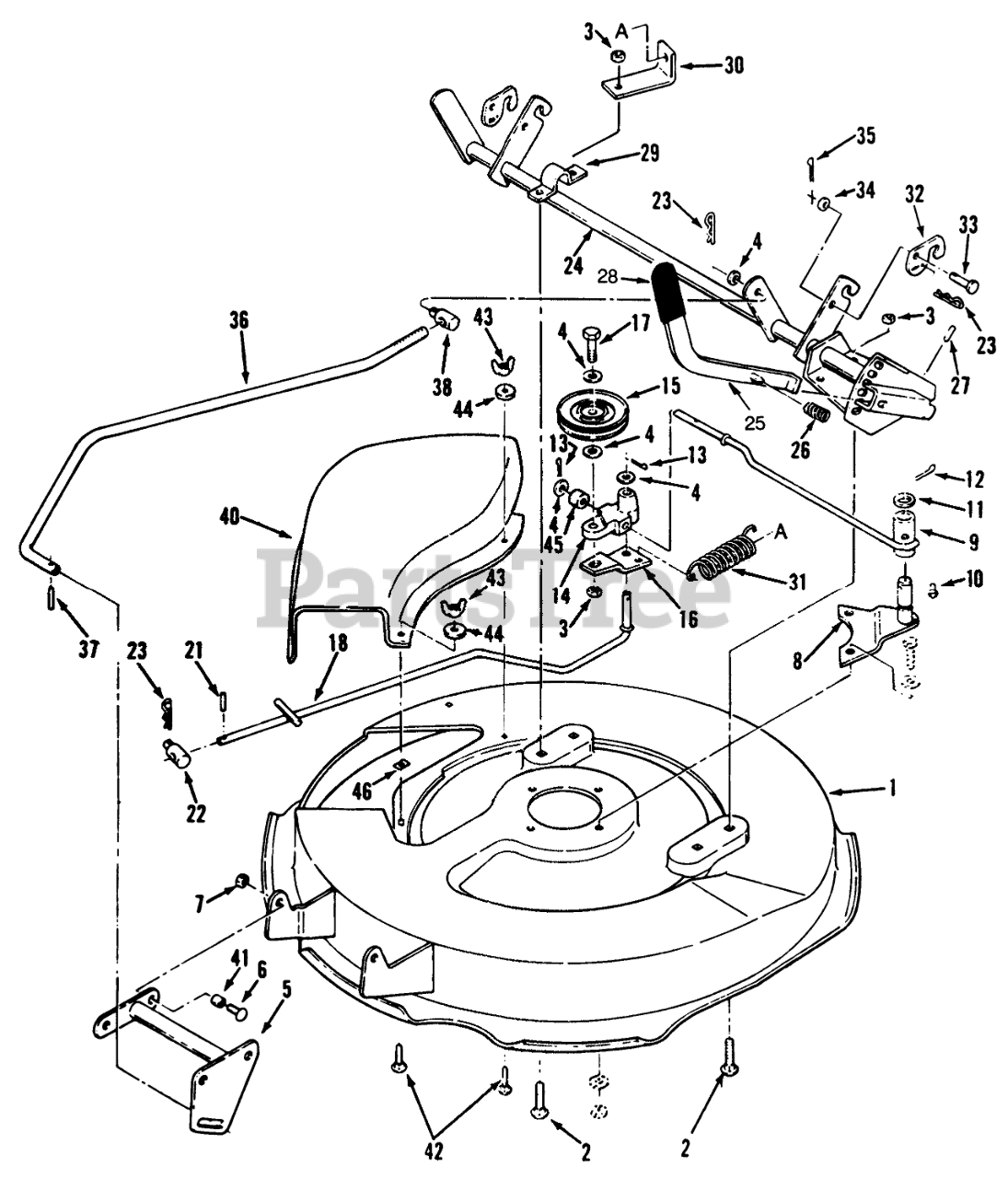

S2-12B502 (212-5 SB) - Toro Lawn Tractor (SN: 010000001 - 019999999) (1991) 30" MOWER DECK Parts Diagram

Lawn Tractor

30" MOWER DECK Parts Diagram

  • Title

1

Toro 113290

ASM-DECK (30") R

$

$

Not available

2

Toro 900063

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 10

0

3

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 8

0

4

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 15

0

5

Toro 114837

ASM-FRONT LIFT R

$149.99

$

Usually ships in 3-6 days

0

6

Toro 900234

Bolt-Carriage
(Superseded to 3231-22)

$3.49

$

In Stock, Qty 20+

0

7

Toro 102809

LOCKNUT-FLANGE
(Superseded to 32128-19)

$1.49

$

In Stock, Qty 20+

0

8

Toro 113296

ASM-PIVOT, IDLER

$

$

Not available

9

Toro 119820

WLDMT-IDLER ROD

$

$

Not available

10

Toro 1030

Zerk

$

$

Not available

11

Toro 920232

WASHER
(Superseded to 9202324)

$1.99

$

In Stock, only 3 left!

0

12

Toro 932018

Cotter Pin
(Superseded to 3272-12)

$0.99

$

In Stock, Qty 17

0

13

Toro 932016

Pop Rivet
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 14

0

14

Toro 111560

BLOCK IDLER

$29.99

$

In Stock, only 1 left!

0

15

Toro 113112

PULLEY-IDLER V

$87.99

$

Usually ships in 3-6 days

0

16

Toro 113293

ANCHOR-SPRING

$

$

Not available

17

Toro 908038

Bolt
(Superseded to 323-10)

$0.99

$

In Stock, Qty 20+

0

18

Toro 113298

ASS'Y-IDLER ROD

$

$

Not available

21

Toro 933152

Pin-Roll
(Superseded to 32121-50)

$3.49

$

In Stock, only 3 left!

0

22

Toro 6739

TRUNNION-LIFT

$24.99

$

In Stock, Qty 5

0

23

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

24

Toro 113314

Height Adjust Assy

$

$

Not available

25

Toro 78-8321

WLDMT-LIFT LEVER R

$

$

Not available

26

Toro 101853

SPRING-COMPRESSION

$1.49

$

In Stock, only 3 left!

0

27

Toro 933184

PIN-SPIROL

$1.49

$

In Stock, Qty 8

0

28

Toro 102597

GRIP

$2.49

$

Usually ships in 3-6 days

0

29

Toro 110841

Camp

$8.99

$

Usually ships in 3-6 days

0

30

Toro 113287

ANCHOR-SPRING B

$

$

Not available

31

Toro 100071

SPRING-EXTENSION

$11.99

$

In Stock, only 1 left!

0

32

Toro 120610

LATCH B
(Superseded to 120610-03)

$

$

Not available

33

Toro 932960

PIN

$

$

Not available

34

Toro 920237

Washer
(Superseded to 9202374)

$0.99

$

Usually ships in 3-6 days

0

35

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

36

Toro 113289

ASS'Y-HEIGHT ADJ R

$209.99

$

Usually ships in 3-6 days

0

37

Toro 933268

SPIROL PIN

$1.49

$

In Stock, Qty 6

0

38

Toro 7736

STUD-TRUNION

$

$

Not available

40

Toro 115205

Deflector
(Superseded to 115206)

$

$

Not available

41

Toro 102704

SPACER

$2.99

$

In Stock, Qty 8

0

42

Toro 900015

Bolt-Carriage
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

43

Toro MW8756

Nut-Wing
(Superseded to 32103-19)

$1.99

$

In Stock, only 2 left!

0

44

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

45

Toro 102704

SPACER

$2.99

$

In Stock, Qty 8

0

46

Toro 106535

SPEED NUT 1/4-20

$

$

Not available
