S1000 (8838-0) - Generac 750 Watt Portable Generator Recoil Starter Parts Diagram

750 Watt Portable Generator

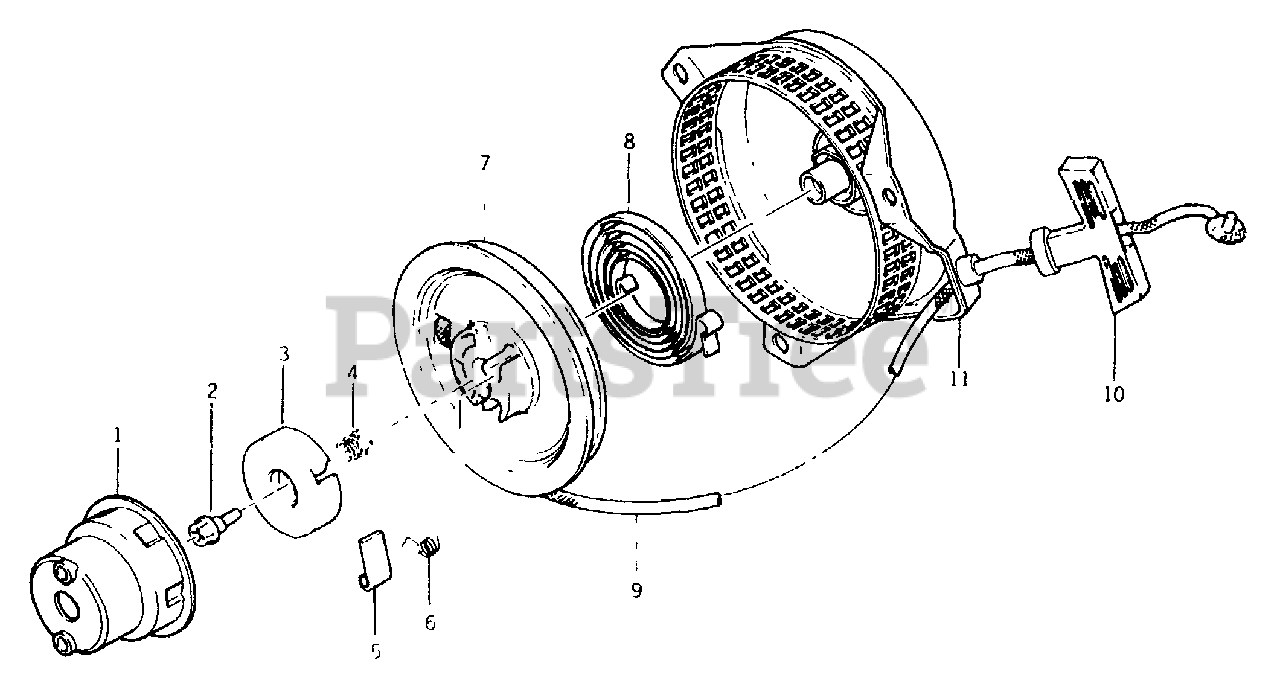

Recoil Starter Parts Diagram

  • Title

Briggs & Stratton 20465188

STARTER ASSEMBLY, Recoil

Note: Includes Items 1 thru 11; Contact Generac for quantity required

$

$

Currently unavailable

1

Briggs & Stratton 22865188

PULLEY

Note: Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 22965188

BOLT

Note: Contact Generac for quantity required

$

$

Not available

3

Briggs & Stratton 23065188

RETAINER

Note: Contact Generac for quantity required

$

$

Currently unavailable

4

Briggs & Stratton 23165188

SPRING

Note: Contact Generac for quantity required

$

$

Currently unavailable

5

Briggs & Stratton 23265188

PAWL, Recoil

Note: Contact Generac for quantity required

$

$

Currently unavailable

6

Briggs & Stratton 23365188

SPRING, Return

Note: Contact Generac for quantity required

$

$

Currently unavailable

7

Briggs & Stratton 23465188

REEL, Recoil

Note: Contact Generac for quantity required

$

$

Not available

8

Briggs & Stratton 23565188

SPRING, Recoil

Note: Contact Generac for quantity required

$

$

Not available

9

Briggs & Stratton 23665188

ROPE (4.5 x 1550mm)

Note: Contact Generac for quantity required

$

$

Currently unavailable

10

Briggs & Stratton 23765188

HANDLE, Recoil Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 23865188

CASE, Recoil Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable
