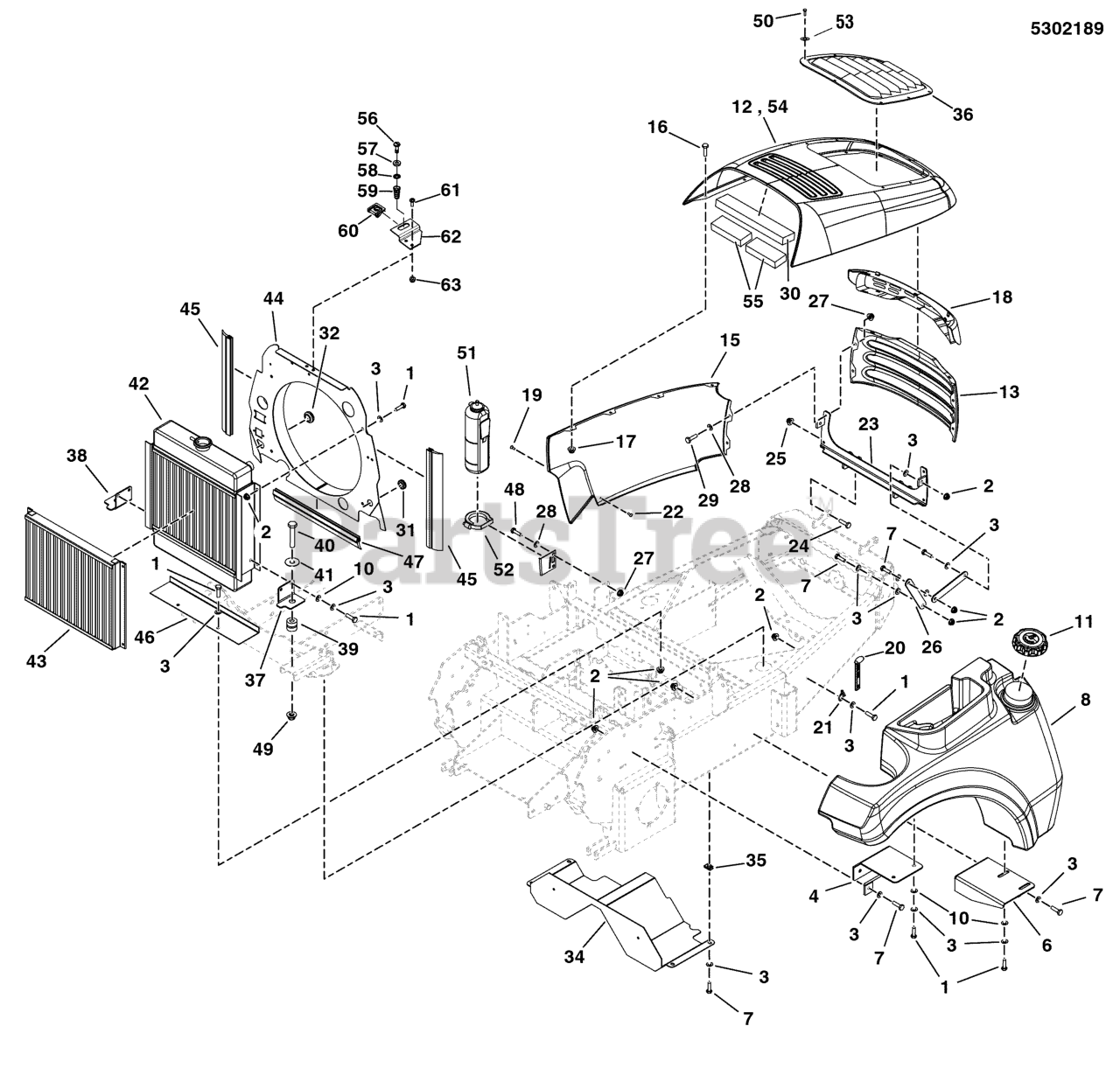

S 800X (5900924) - Snapper Pro S800X Series Front Mount Zero-Turn Riding Mower, 30hp Yanmar Fuel Tank, Radiator & Hood Group (Diesel Models) Parts Diagram

S800X Series Front Mount Zero-Turn Riding Mower, 30hp Yanmar

Fuel Tank, Radiator & Hood Group (Diesel Models) Parts Diagram

  • Title

1

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 4 left!

0

2

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

4

Snapper Pro 5404225D

MOUNT, FUEL TANK WELDMENT - FRONT - RED
(Superseded to 5404225DYP)

$42.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5404883D

WELD, TANK MOUNT, RH - RED
(Superseded to 5404883DYP)

Note: (Not Shown)

$46.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5404882D

WELD, TANK MOUNT, LH - RED
(Superseded to 5404882DYP)

$46.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 17

0

8

Snapper Pro 5102596

FUEL TANK, LH, S800XY

$426.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5102595

FUEL TANK, RH, S800XY

Note: (Not Shown)

$492.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5104414

FUEL CAP, 3.5", NON VENTED, DIESEL (GRN)
(Superseded to 5104414FS)

$29.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5600714

HOOD, BOXED, S800X - SPR RED

Note: (5404654D)

$600.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5101782D

GRILLE, PERF METAL, OUT FRONT MOWER
(Superseded to 5101782DYP)

$162.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 1725822D

PANEL-SIDE, 18GA LEGACY - PLAIN

Note: (Not Shown)

$

$

Currently unavailable

15

Snapper Pro 1725821D

PANEL-SIDE, 18GA LEGACY - PLAIN
(Superseded to 1725821DSM)

$163.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 1960295

SCREW-HEX WZ LOCK FLNG 1/4-20X0.625 BLK
(Superseded to 1960295SM)

$4.49

$

In Stock, only 1 left!

0

17

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

$4.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5101777

MACHINED BLACK LENS, OUT FRONT MOWER
(Superseded to 5101777YP)

$127.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 1726044

BINDING POST #8-32X.500 INT THR BLK
(Superseded to 1726044SM)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 2171600

STRAP,HOOD,BLACK RUBBER
(Superseded to 2171600FS)

$7.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 1723168

HOOK-.125DIA WIRE GR CAT STRAP YELLOW
(Superseded to 1723168SM)

$9.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 2860707

SCREW-HEX SERR FLNG LK # 8-32X0.375 YEL
(Superseded to 2860707SM)

$3.49

$

In Stock, only 2 left!

0

23

Snapper Pro 5404242D

WELD, HOOD MOUNT - RED
(Superseded to 5404242DYP)

$65.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5025356

BOLT, 3/8-16 X 3/8, 1/2 SHOULDER
(Superseded to 5025356SM)

$6.99

$

In Stock, Qty 6

0

25

Snapper Pro 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

In Stock, Qty 20+

0

26

Snapper Pro 5405846D

LINK, HOOD HINGE - RED

$

$

Currently unavailable

27

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

28

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

29

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

30

Snapper Pro 5101774

FOAM HOOD SEAL, OUT FRONT MOWER
(Superseded to 5101774FS)

$40.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5102542

GROMMET, 5/8 ID X 1/8 MATERIAL
(Superseded to 5102542FS)

$2.49

$

Usually ships in 2-12 days

0

32

Snapper Pro 5023236

GROMMET, 3/4
(Superseded to 5023236SM)

$2.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5102687

HEAT SHIELD, 1/2 X 8.75 X 12.5

Note: (Not Shown)

$35.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5405867D

DEBRIS GUARD, PUMP - RED

$

$

Currently unavailable

35

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

36

Snapper Pro 5101768

SCOOP, HOOD, OUTFRONT MOWER
(Superseded to 5101768YP)

$142.99

$

Usually ships in 2-12 days

0

37

Snapper Pro 5406413D

BRACKET, RADIATOR MOUNT, LH - RED

$

$

Currently unavailable

38

Snapper Pro 5406414D

BRACKET, RADIATOR MOUNT, RH - RED

$

$

Currently unavailable

39

Snapper Pro 5023131

MOUNT, ISO, BOTTOM, RAD 5000Z-DIESEL
(Superseded to 84003075)

$27.99

$

In Stock, only 1 left!

0

40

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

41

Snapper Pro 5100548

WASHER, .390 X 1.50 X .109, YZ
(Superseded to 5100548SM)

$4.49

$

Usually ships in 2-12 days

0

42

Snapper Pro 5102027

RADIATOR, S800XY

$3239.99

$

Usually ships in 2-12 days

0

43

Snapper Pro 5102141

SCREEN, FRONT, RAD, S800X YANMAR

$234.99

$

Usually ships in 2-12 days

0

44

Snapper Pro 5406446D

WELD, FAN SHROUD, S800XY - RED

$101.99

$

Usually ships in 2-12 days

0

45

Snapper Pro 5050926X14

SEAL, WIPER, CLIP ON X 14" L

$

$

Currently unavailable

46a

Snapper Pro 5409317D

PLATE, LOWER RADIATOR SEAL - RED

Note: (S/N: 2015458729 & Above)

$

$

Currently unavailable

46b

Snapper Pro 5405813D

PLATE, LOWER RADIATOR SEAL - RED

Note: (S/N: 2015458728 & Below)

$

$

Currently unavailable

47

Snapper Pro 5050926X12P25

SEAL, WIPER, CLIP ON X 12-1/4" L

$

$

Currently unavailable

48

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

49

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

50

Snapper Pro 1675044

RIVET-POP.188 .429L AL,AL STEM.37HD DIA
(Superseded to 1675044SM)

$3.99

$

In Stock, only 1 left!

0

51

Snapper Pro 5101985X4

BOTTLE, COOLANT OVERFLOW (SV)

Note: (Not Shown)

$148.99

$

Usually ships in 2-12 days

0

52

Snapper Pro 5101985X14

CLAMP, COOLANT OVERFLOW (SV)

Note: (Not Shown)

$74.99

$

Usually ships in 2-12 days

0

53

Snapper Pro 5023499

WASHER, #10 SAE
(Superseded to 5023499SM)

$3.49

$

Usually ships in 2-12 days

0

54

Snapper Pro 5407954D

WELD, HOOD, S/F800X CE - RED

Note: (CE Models)

$

$

Currently unavailable

55

Snapper Pro 5103027

FOAM, HOOD SEAL

Note: (CE Models)

$22.99

$

Usually ships in 2-12 days

0

56

Snapper Pro 5025575

DZUS, 1/4 TURN FASTENER, D8X16MM
(Superseded to 5025575FS)

Note: (CE Models)

$14.99

$

Usually ships in 2-12 days

0

57

Snapper Pro 5025574

DZUS, CUPPED WASHER
(Superseded to 5025574FS)

Note: (CE Models)

$3.99

$

Usually ships in 2-12 days

0

58

Snapper Pro 5025577

DZUS, RETAINER, PUSH-ON, SS
(Superseded to 5025577FS)

Note: (CE Models)

$2.99

$

Usually ships in 2-12 days

0

59

Snapper Pro 5025573

DZUS, EJECTOR SPRING
(Superseded to 5025573FS)

Note: (CE Models)

$2.99

$

Usually ships in 2-12 days

0

60

Snapper Pro 5025576

DZUS, RECEPTACLE, CLIP-ON, D8
(Superseded to 5025576FS)

Note: (CE Models)

$6.99

$

Usually ships in 2-12 days

0

61

Snapper Pro 5025179X4

SCREW- #10-24 X 1/2 ROUND PHILLIPS

Note: (CE Models)

$

$

Currently unavailable

62

Snapper Pro 5407952D

MOUNT, HOOD FASTENER, S800X - RED

Note: (CE Models)

$

$

Currently unavailable

63

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

Note: (CE Models)

$3.99

$

Usually ships in 2-12 days

0
